Automatic Cutting Machine for Lithium Battery Electrodes Cutting

This is an automatic roll-to-sheet cutting machine for lithium battery electrode cutting

Item NO.:
AOT-MSK-520A
Lead Time:
15-20
Product Orgin:
china
Brand:
AOTELEC
Shipping Port:
xiamen
Payment:
T/T, WesternUnion, MoneyGram, Paypal, Visa

Inquiry now

Product Detail

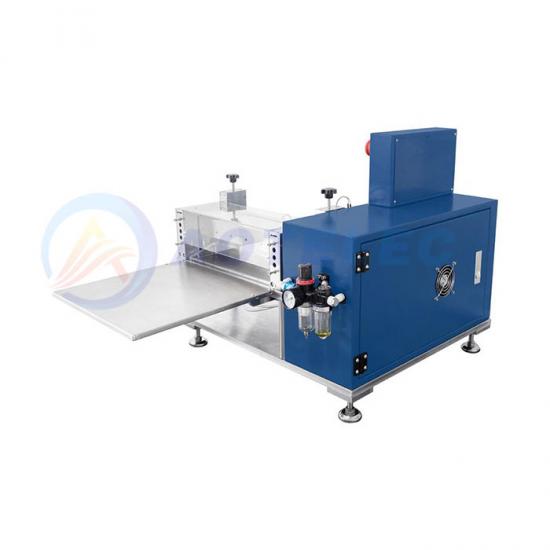

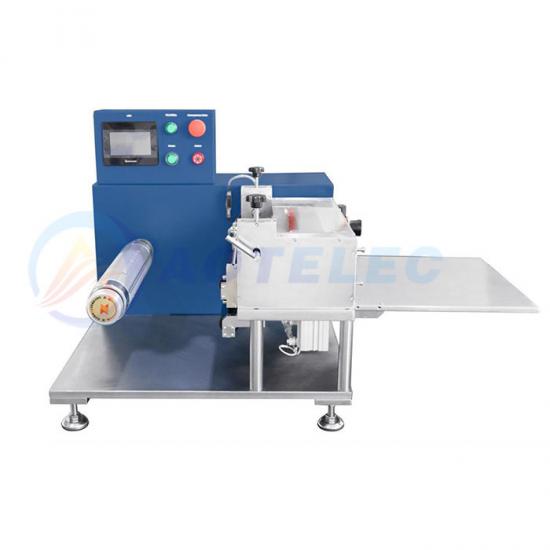

This is an automatic roll-to-sheet cutting machine for lithium battery electrode cutting.

Features:

1.Automatic tension control.

2.Electrode cutting width: 10 mm - 290 mm optional

3.Continuous cutting and continuous cut-to-length modes are possible

4.PLC touch screen control

Specification

Model	MSK-520A
Voltage	Single-phase 208~240VAC, 50/60Hz
Power	Max 500 W
Electrode Width	10 mm - 290 mm
Cutting Accuracy	+/- 0.3mm
Tension Control	Maximum 30 N
Linear Speed Allowed	Maximum 2 m/min
Electrode Roll Size	Maximum OD300 mm
Product Size	L 950 mm x W 670 mm x H 570 mm
Weight	161 kg

Cutting Machine

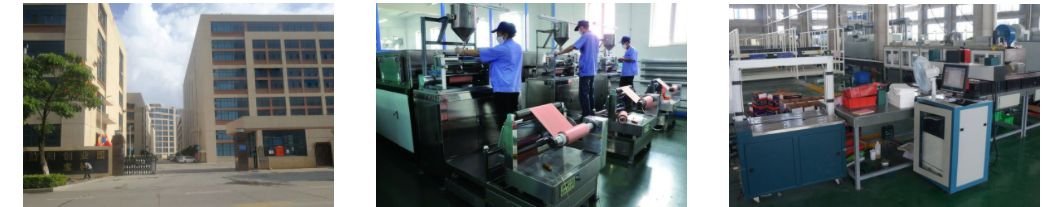

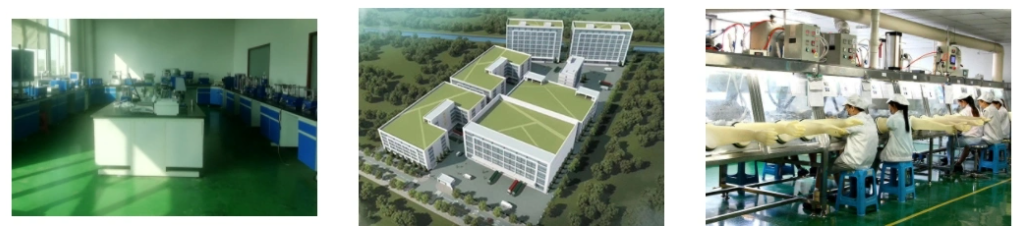

Company Profile

Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.

Exhibition

AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.

Certificate

Cooperative Partner

FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).

Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.

Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.

Q4:How to get technical support after purchasing?

A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.

Q5:What's the warranty for the items?

A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
