Feature：

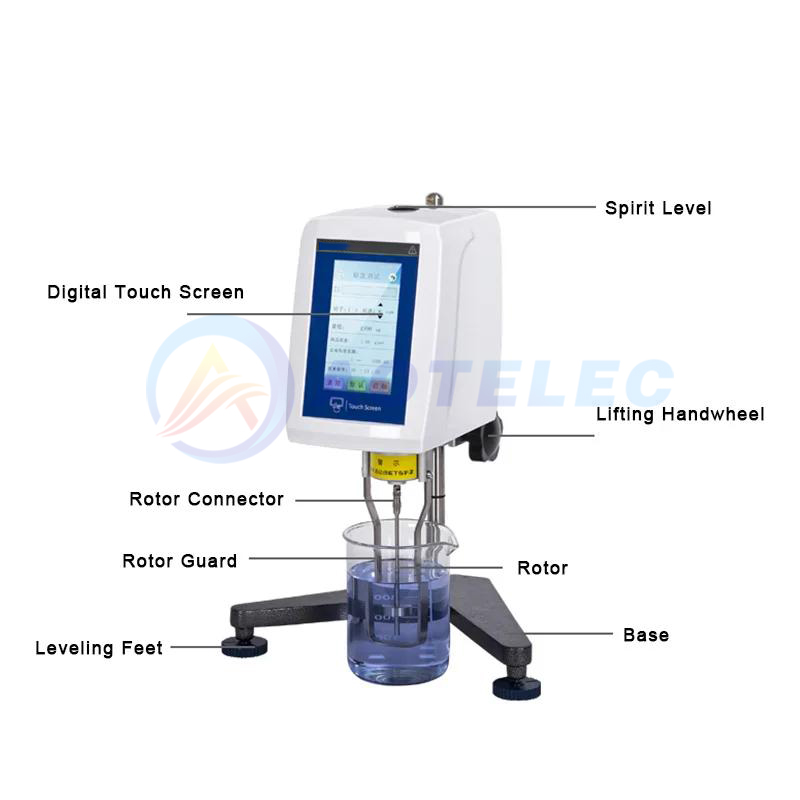

1.Standard touch screen digital viscometer;
2.Can be used to measure Newtonian liquids;
3.Absolute viscosity and apparent viscosity of non Newtonian liquids;
4.LCD color touch screen;
5.The display parameters are more intuitive, easy to use and operate, and the appearance is beautiful and elegant;
6.With curve function, it can display and view measurement curves;
|
Product Name |
Touch Screen Digital viscometer |
|||||||||||
|
Product Model |
NDJ-1T |
NDJ-5T |
NDJ-8T |
NDJ-9T |
NDJ-99T |
|||||||
|
Input power supply |
AC110- 240V 50/ 60Hz DC12V |
|||||||||||
|
Power |
120w |
|||||||||||
|
Viscosity measurement range(mpas) |
1-6*10^4
|
1-8*10^4
|
1-8*10^5
|
1-1*10^5
|
1-2*10^6
|
|||||||
|
Measurement Accuracy |
±2% |
|||||||||||
|
Error value |
1%FS |
|||||||||||
|
Display Accuracy |
0.01 |
|||||||||||
|
Single measurement automatic |
After the measurement results are stable, the rotor automatically |
|||||||||||
|
Rotor specifications |
1,2,3,4 |
|||||||||||
|
Rotor speed |
6/12/30/6 |
0.3/0.6/1.5/3/ 6/12/30/60 |
6/12/30/6 |
0.3/0.6/1.5/3/ 6/12/30/60 |
||||||||
|
Temperature sensor interface |
standard configuration |
|||||||||||
|
Computer interface |
standard configuration |
|||||||||||
|
RS232 interface |
standard configuration |
|||||||||||
|
work environment |
Temperature:5-35°C relative humidity：≤80% |
|||||||||||
|
Weight |
5kg |
|||||||||||
