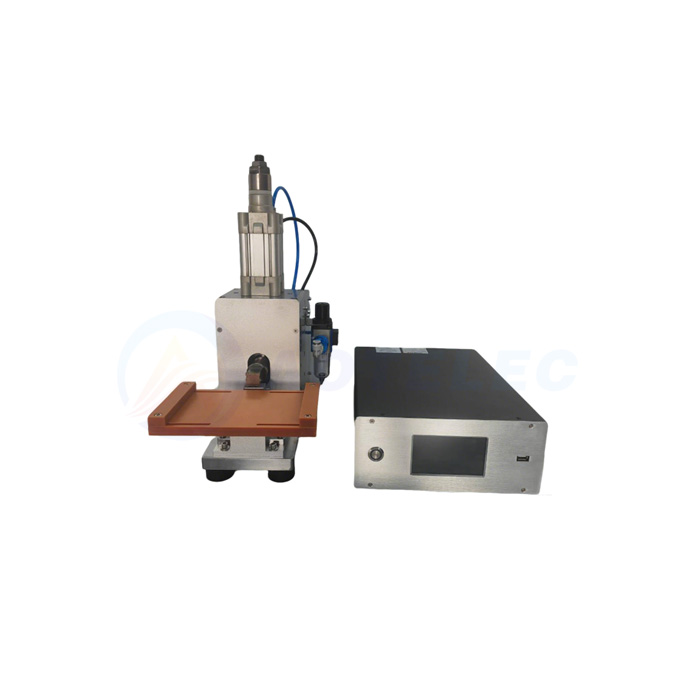

The principle of c is to use the energy generated by the high-frequency mechanical vibration of ultrasonic waves to weld non-ferrous metal materials of the same or different types. During the welding process, neither current is transmitted to the workpiece nor high-temperature energy is input. Instead, it only vibrates repeatedly on the surface of the workpiece at a high frequency of 24.5-25.5KHz And apply the corresponding pressure to the workpiece to form a solid bond between the workpieces, thereby achieving the welding effect.
2. Main features
Precision sliding bearings can ensure the precise movement of equipment and meet the best welding accuracy requirements
The precisely adjustable limit position can accurately determine the up and down position of the welding
The up and down speed of the welding head can be accurately adjusted
The welding time (ultrasonic time) can be accurately adjusted
The time for maintaining downward pressure can be accurately adjusted
The power box can maintain a stable amplitude output when the voltage fluctuates
The unique structural design effectively transmits ultrasonic energy to the welding head
It is made of imported SKD11 material, featuring excellent ultrasonic transmission and long-lasting wear resistance
The overall operation is simple, with high welding efficiency and good welding quality
|
Name |
High - Power Metal Ultrasonic Wave |
|
Model |
AOT - USW - 1000W |
|
Power |
800W |
|
Required Power Supply |
220VAC±10%, 50/60HZ |
|
Frequency |
40KHz |
|
Required Air Source |
Pressure 0.4 - 0.8MPa, Humidity < 45%, Temperature ≤ 50℃ |
|
Cylinder Bore |
60mm |
|
Cylinder Stroke |
10mm |
|
Air Consumption |
0.0785 cubic meters (1L = 0.001 cubic meters) |
|
Air Inlet Connector |
Quick Connector |
|
Welding Time |
Adjustable (0.01s - 10s) |
|
Pre - pressure Time |
Adjustable (0.02s - 1s) |
|
Frequency Calculation and Display |
24.5000 - 25.5000HZ |
|
Automatic Frequency Tracking |
Range ±20HZ |
|
Automatic Temperature Tracking |
Internal power tube 60° automatic protection |
|
EMI/EMC |
Strong anti - interference ability |
|
Approximate Overall Size of Welding Head |
480L * 260W * 380H (mm) |
|
Approximate Overall Size of Main Cabinet |
500L * 360W * 120H (mm) |
|
Total Weight |
44Kg |
