Manual Aluminum Laminated Film Forming Machine for Pouch Cell Battery Case

Battery Pouch Cell Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the lab line of making pouch cell batteries.
  • Item NO.:

    AOT-MPF-200
  • Lead Time:

    5-15days
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen, China
  • Payment:

    T/T, WesternUnion, MoneyGram, Paypal, Visa
  • Product Detail

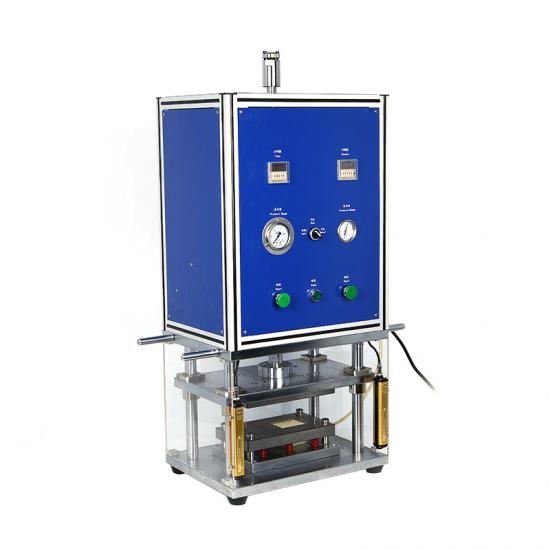

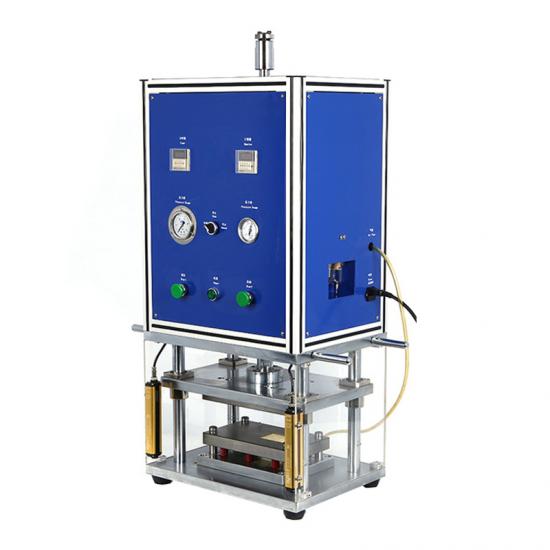

Pouch Cell Case Forming Machine for Polymer Battery Cup Making


1 AOT-MPF-200 Battery Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.


2 The machine is used to prepare polymer cases made of Aluminum Laminated Films.


3 This lab aluminum laminated film pouch forming machine is designed with simple Spring mold with a smaller size, which is more suitable for lab research. If we want to do producing or Pilot scale production line, We can choose theAOT-CK150 Model or other producing model.


4 It's used for pouch cell aluminum-laminated films case forming. Different size can be made easily by replacing the die.


Features :

1. Guide pillar structure makes smooth move and high accuracy.

2. It is easy and quick to replace die and regulate the punching depth.

3. Accurate design of die makes no crow’s -feet and corner collapse.

4. Light curtain and cover protection make safety use.

5. The die material is imported from Japan and made of high-strength chrome steel and aluminum alloy with surface treated by environmental electroplating and painting.

6. Nice appearance, metal plate use solid geometry design which is well formed.

7. Easy operation, small volume, safe and reliable.


Specifications:

Model

Lab Polymer Battery Pouch Forming Machine AOT-MPF-200

Source voltage

AC 220V/110V, 50/60HZ

Power

100W

Warranty

Two years limited warranty with lifetime support

Advantages

1 Structure of guide pin, slide up and down smoothly with

high precision

2 Change mould, adjust tensile depth simply, quickly

3 Use screen and casing protection, guarantee safety

4 High strength of chrome steel and aluminum alloy, surface roasts

the paint processing through environmental protection

electroplating

Suitable aluminum film thickness

0.1-0.2mm

Suitable aluminum film size

160*120mm(L*W), customized, with punching depth ≤6mm

Max. Cup Depth to Punch

Single pit punching depth ≤6mm

Output

200-400EA/H

Output pressure

3T

Air source

0.5-0.7MPa

Mold materials

S136 Die steel

Dimension(L*W*H)

460*320*925mm

Weight

About 130kg

Aluminum laminated film pouch cell case cup forming machine

Forming Machine for Pouch Cell Battery Case Aluminum Laminated

Lithium Battery Pouch Cell Case Cup Forming Machine
