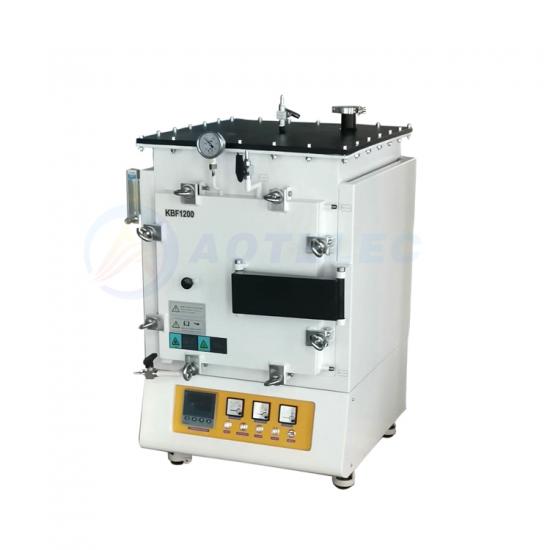

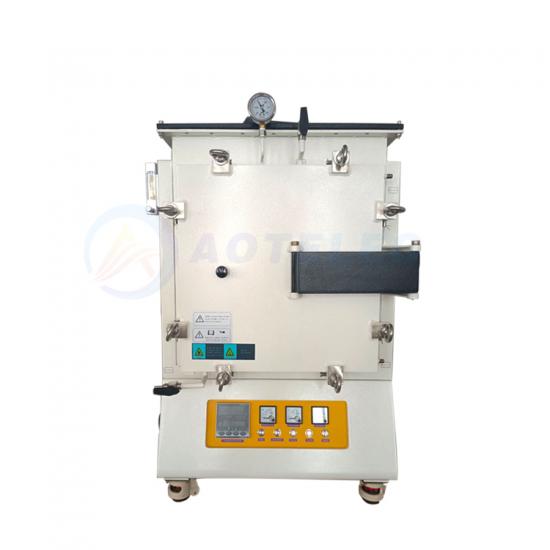

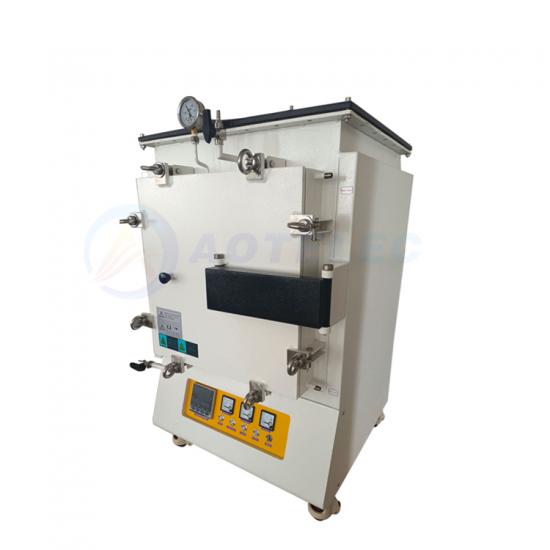

1200-degree atmosphere box-type furnace

This atmosphere box furnace with resistance wire heating element, using double layer shell structure and program temperature control instrument. The furnace is made of alumina polycrystal fiber material, and the double furnace shell is equipped with air cooling system, which can raise and lower the temperature quickly. Can pass argon, nitrogen, oxygen, carbon monoxide, ammonia decomposition gas, and can use vacuum pump vacuum remove gas in the furnace, the furnace has temperature equilibrium, low surface temperature, lifting temperature rate, energy saving, is universities, research institutes, industrial and mining enterprises do atmosphere protection sintering, atmosphere reduction with the ideal product.
  • Item NO.:

    AOT-KBF1200-Q1
  • Lead Time:

    5-20days
  • Product Orgin:

    China
  • Brand:

    AOTELEC
  • Shipping Port:

    xiamen
  • Payment:

    T/T, WesternUnion, MoneyGram, Paypal, Visa
  • Product Detail

Product Introduction:

 1. Open door protection system: the furnace is equipped with a travel switch. When the furnace door is opened, the power supply will be automatically cut off, effectively ensuring the safety of users.

2. Sealing system: the furnace top cover and furnace door (other places have been welded) are using silicone O-ring extrusion seal, easy removal, repeatable removal, good air tightness, can ensure that the 8-hour pressure gauge pointer does not deflection.

3. Vacuum system (purchase): it can be pre-vacuum for the atmosphere box furnace to accelerate the cleaning of the air in the furnace.

4. furnace material: using furnace material imported from Japan, do not drop powder, material thermal insulation performance, high reflectivity, temperature field balance, resistance to heat rise and cooling shrinkage ability is strong.

5. heating elements: all using imported resistance wire, long service life.

6. leakage protection function: the furnace is equipped with leakage air switch, when the furnace body leakage automatically power off, to ensure the safety of use nature.

7. Use the Yudian program temperature control instrument

   1).  30-section program temperature control intelligent PID adjustment.

2). with the over temperature protection when the over temperature or break protection, (when the temperature of the electric furnace exceeds 1220 degrees or the thermocouple is off, the AC relay on the main circuit will be automatically disconnected, the main circuit is disconnected, the ON lamp on the panel is OFF, the limited protection electric furnace).

3). With the function of power off protection, that is, when the power is cut off and the power is started, the program does not rise from the starting temperature, but from the furnace temperature when the power is cut off.

4). The instrument has the function of temperature self-setting.


Main Parameter

Model

KBF1200-Q1

KBF1200-Q2

KBF1200-Q3

KBF1200-Q4

Furnace sizemm

300*200*200

300*250*250

400*300*300

500*400*400

Rated temperature

1100

Maximum temperature

1200

Powder

4KW

5KW

9 KW

15KW

Voltage

220V

220V

380V

380V





Temperature control

30 section of intelligent temperature control, LED automatic heating, automatic cooling, no duty. With over temperature protection when the electric furnace heating circuit is over temperature or off, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is off, the AC relay on the main circuit will be automatically disconnected, the main circuit, the panel ON lamp off, OFF light, limited protection electric furnace). It has the function of power off protection, that is, when the power is cut off, the program does not rise from the starting temperature, but from the furnace temperature when the power is cut off. The instrument has the function of temperature self-setting.

Shell design

The shell of the electric furnace adopts double-layer forced air cooling structure to make the external temperature of the furnace shell close to room temperature at the highest temperature

Can pass gas

All inert gas mixture, nitrogen, chlorine, oxygen, water vapor...

Heating rate

≤0~ 20.C/ min

Other configuration

1 thermocouple, 1 furnace door brick, 1 alumina cushion brick, 1 crucible, 1 crucible clamp, 1 high temperature submersible pump, 1 glove, 1 manual

Temperature control safety

Electric furnace adopts integrated circuit, module control, double loop protection (temperature protection, ultra-high temperature protection, break protection, fluid protection, overpressure protection)

Temperature control accuracy

±1

Temperature uniformity of furnace

≤±5

Furnace material

High-density alumina ceramic fiber
