Introduction

In the realm of battery technology, which powers everything from our pocket - sized smartphones to colossal electric vehicles, battery electrolytes play a role as crucial as the engine in a car. An electrolyte, in simple terms, is a substance that contains free ions and can conduct electricity. In batteries, electrolytes act as the medium through which ions move between the positive and negative electrodes, enabling the flow of electric current.

Composition of Battery Electrolytes

Solvents

Solvents are the main component of liquid electrolytes. In lithium - ion batteries, common solvents include carbonate - based compounds such as ethylene carbonate (EC), dimethyl carbonate (DMC), and diethyl carbonate (DEC). EC, for example, has a high dielectric constant, which helps in dissolving lithium salts. When combined with DMC, which has a lower viscosity, the mixture can provide a good balance between ion - solvating ability and ion - mobility. The choice of solvents significantly affects the performance of the electrolyte. For instance, if the solvent has a low boiling point, it may lead to evaporation issues, especially in high - temperature environments, reducing the battery's lifespan.

Salts

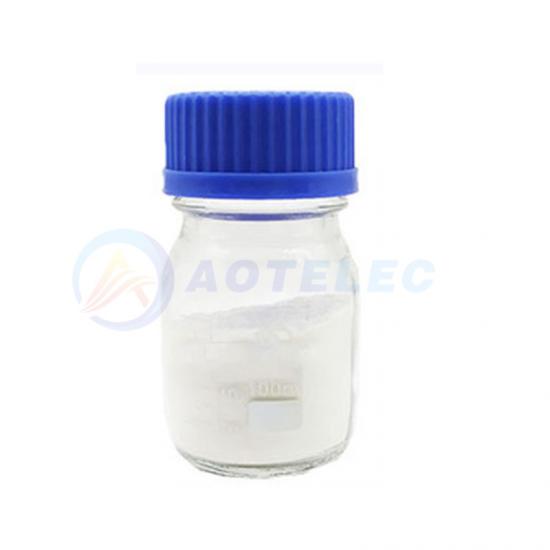

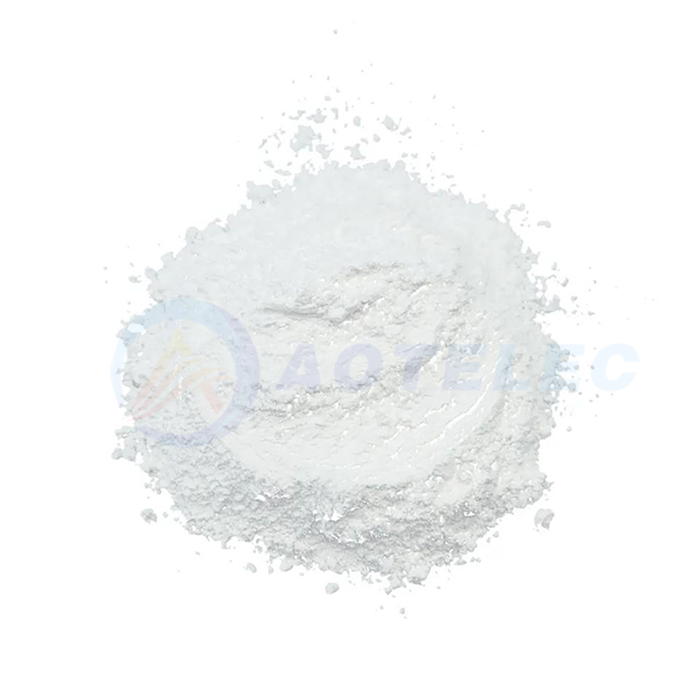

Salts in the electrolyte provide the necessary ions for conduction. In lithium - ion batteries, lithium salts are widely used. Lithium hexafluorophosphate (LiPF₆) is the most common lithium salt in commercial lithium - ion batteries. It dissociates in the solvent to release lithium ions (Li⁺), which are essential for the charge - discharge process. However, LiPF₆ has its drawbacks. It is sensitive to moisture, and in the presence of water, it can decompose, generating hydrogen fluoride (HF), which is corrosive to the battery components. Newer salts, such as lithium bis(fluorosulfonyl)imide (LiFSI), are being explored. LiFSI offers advantages like higher thermal stability and better conductivity, making it a promising alternative to LiPF₆.

Additives

Additives are added to the electrolyte in small amounts but can have a significant impact on battery performance. For example, SEI - forming additives are used to help form a solid - electrolyte interphase (SEI) layer on the surface of the negative electrode. Compounds like vinylene carbonate (VC) are common SEI - forming additives. The SEI layer is crucial as it acts as a protective film, preventing further reaction between the electrode and the electrolyte, thus improving the battery's cycle life. Another type of additive is the overcharge protection additive. In lithium - ion batteries, overcharging can be dangerous. Some additives, such as certain aromatic compounds, can undergo polymerization when the battery is overcharged. This polymerization blocks the flow of ions, effectively halting the charging process and protecting the battery from overheating and potential explosion.

Types of Battery Electrolytes

Liquid Electrolytes

Liquid electrolytes are the most common type in current commercial batteries. They offer high ionic conductivity, which allows for efficient ion transport between the electrodes. In lead - acid batteries, the liquid electrolyte is a sulfuric acid solution. During the charge - discharge process, the sulfuric acid dissociates into hydrogen ions (H⁺) and sulfate ions (SO₄²⁻). These ions participate in the electrochemical reactions at the lead - dioxide positive electrode and the lead negative electrode. The advantages of liquid electrolytes include their relatively low cost and ease of manufacturing. However, they also have drawbacks. They are prone to leakage, which can be a safety hazard. In addition, liquid electrolytes may have limited temperature ranges over which they can operate effectively.

Solid - State Electrolytes

Solid - state electrolytes are emerging as a promising alternative to liquid electrolytes. They are in a solid form, which eliminates the risk of leakage. Examples of solid - state electrolytes include ceramic - based materials like lithium - lanthanum - zirconium - oxide (LLZO). Solid - state electrolytes can potentially enable higher energy density batteries. Since they are non - flammable, they also offer enhanced safety. However, one of the main challenges with solid - state electrolytes is their relatively high interfacial resistance with the electrodes. This resistance can limit the charge - discharge rate of the battery. Researchers are actively working on improving the interface between solid - state electrolytes and electrodes to overcome this issue.

Gel Electrolytes

Gel electrolytes combine the features of liquid and solid - state electrolytes. They are composed of a polymer matrix that traps a liquid electrolyte, giving them a gel - like consistency. Gel electrolytes are often used in applications where flexibility is required, such as in flexible batteries for wearable devices. The polymer matrix in gel electrolytes provides mechanical stability, while the liquid component within the matrix allows for ion conduction. However, gel electrolytes may have slightly lower ionic conductivity compared to pure liquid electrolytes, and their long - term stability under various conditions is still being studied.

Function of Battery Electrolytes in Batteries

Ion Conduction

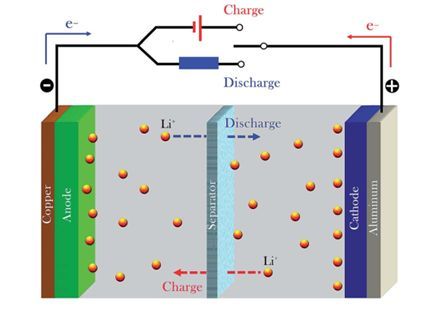

The primary function of the electrolyte in a battery is to facilitate ion conduction. In a lithium - ion battery, during discharge, lithium ions move from the negative electrode (usually graphite) through the electrolyte to the positive electrode (such as lithium - cobalt - oxide). This movement of ions creates an electric current in the external circuit. The rate at which these ions can move through the electrolyte determines the battery's power output. If the electrolyte has a high ionic conductivity, the battery can deliver a large amount of current quickly, which is essential for applications like electric vehicle acceleration, where a sudden high - power demand is required.

Electrochemical Reaction Medium

The electrolyte also serves as a medium for electrochemical reactions. At the electrodes, the ions from the electrolyte react with the active materials on the electrodes. In a nickel - metal - hydride (Ni - MH) battery, for example, during charging, hydrogen ions from the electrolyte react with the nickel - hydroxide positive electrode, while hydrogen is absorbed by the metal - hydride negative electrode. The properties of the electrolyte, such as its pH in the case of aqueous electrolytes or its redox potential in non - aqueous electrolytes, can influence the efficiency and reversibility of these electrochemical reactions. A well - designed electrolyte can ensure that these reactions occur smoothly, minimizing side reactions that could reduce the battery's capacity or lifespan.

Maintaining Battery Stability

The electrolyte helps in maintaining the stability of the battery. It can prevent the corrosion of electrodes. In some batteries, the electrolyte forms a protective film on the electrode surface. In lithium - ion batteries, the SEI layer formed on the negative electrode due to the reaction between the electrolyte and the electrode material protects the electrode from further reaction with the electrolyte. This layer is essential for the long - term stability of the battery. If the electrolyte is not suitable, it may cause excessive corrosion of the electrodes, leading to a decrease in battery performance over time.

Applications of Battery Electrolytes

In Lithium - Ion Batteries

Lithium - ion batteries are everywhere, from mobile phones to laptops and electric vehicles. The electrolyte in lithium - ion batteries is carefully formulated to meet the specific requirements of each application. In mobile phones, where space and weight are critical, the electrolyte needs to be highly efficient in ion conduction to enable fast charging and long - lasting battery life within a small form factor. In electric vehicles, the electrolyte must be able to withstand a wide range of temperatures, from the extreme cold of winter to the intense heat of summer. For example, in cold climates, the electrolyte's viscosity can increase, reducing its ionic conductivity. To address this, special additives or solvents with lower freezing points may be used in the electrolyte formulation for electric vehicle batteries.

In Rechargeable Batteries for Renewable Energy Storage

As the world moves towards renewable energy sources like solar and wind, rechargeable batteries for energy storage are becoming increasingly important. Batteries used in grid - scale energy storage, such as large - format lithium - ion or vanadium redox flow batteries, rely on electrolytes. In vanadium redox flow batteries, the electrolyte contains vanadium ions in different oxidation states. During charging and discharging, the vanadium ions in the positive and negative half - cells change their oxidation states, and the electrolyte allows the transfer of ions between the two half - cells. The choice of electrolyte in these energy storage batteries is crucial as it affects the overall efficiency, lifespan, and cost - effectiveness of the energy storage system.

In Small - Scale Batteries for Wearable Devices

Wearable devices, such as smartwatches and fitness trackers, require small, lightweight, and flexible batteries. Gel electrolytes are often used in these applications. The flexibility of the gel electrolyte allows the battery to conform to the curved or irregular shapes required for wearable devices. Additionally, the electrolyte in these small - scale batteries needs to have a long cycle life to ensure that the device can be charged and discharged many times without significant loss of capacity, as users expect their wearable devices to last for several years.

Challenges and Future Developments

Challenges

One of the major challenges in electrolyte development is improving safety. Liquid electrolytes in lithium - ion batteries are often flammable, which poses a risk of fire or explosion, especially in cases of overcharging or battery damage. Solid - state electrolytes offer a solution to this safety issue, but as mentioned earlier, they face challenges related to interfacial resistance. Another challenge is developing electrolytes that can operate efficiently over a wide range of temperatures. Extreme temperatures can cause the electrolyte to freeze or boil, or it can change the rate of electrochemical reactions in the battery, leading to reduced performance. Cost is also a significant factor. Some of the advanced electrolyte components, such as certain lithium salts or specialized additives, can be expensive, which may limit their widespread use in cost - sensitive applications like large - scale energy storage.

Battery electrolytes are an integral and fascinating part of battery technology. Their composition, type, and function are all critical factors that determine the performance, safety, and lifespan of batteries. From the solvents, salts, and additives that make up their composition to the different types such as liquid, solid - state, and gel electrolytes, each aspect plays a unique role.
