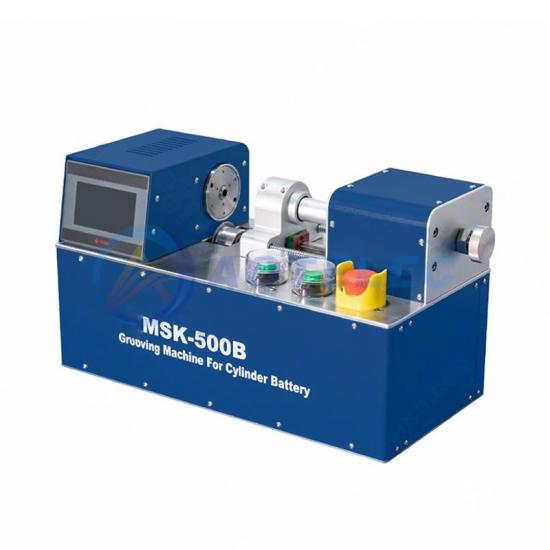

In the realm of cylindrical battery manufacturing, the grooving machine stands as a pivotal piece of equipment, playing an indispensable role in ensuring the structural integrity, sealing performance, and overall quality of the final product. As cylindrical batteries, such as lithium-ion and nickel-metal hydride batteries, are widely used in various fields including consumer electronics, electric vehicles, and energy storage systems, the precision and reliability of the grooving process directly impact the safety and performance of these batteries.

The primary function of a cylindrical battery grooving machine is to create precise grooves or slots on the outer surface of the battery case (typically made of steel or aluminum) at specific positions. These grooves serve multiple critical purposes. Firstly, they provide a secure seating for the battery cap or seal, enabling a tight and leak-proof connection between the case and the cap. This is essential for preventing the leakage of electrolyte, which is not only crucial for maintaining the battery's electrochemical performance but also for ensuring safety, as electrolyte leakage can lead to short circuits or even thermal runaway. Secondly, the grooves enhance the structural stability of the battery. By creating a reinforced section on the case, they help withstand internal pressure changes that may occur during charging and discharging cycles, reducing the risk of case deformation or rupture. Additionally, the slots facilitate the assembly process by aligning the components accurately, ensuring that other parts such as gaskets and current collectors are properly positioned.

To understand the working principle of a cylindrical battery grooving machine, it is necessary to break down its operational process into several key stages, each involving precise coordination between mechanical components and control systems.

The process begins with the feeding stage. Cylindrical battery cases which have undergone previous manufacturing steps such as drawing and cleaning, are loaded into the machine's feeding mechanism. This mechanism can be automated, using vibratory bowls or conveyor belts to transport the cases one by one to the processing station. The feeding system is designed to ensure that each case is oriented correctly, with the open end facing the appropriate direction for the grooving operation.

Once a battery case is positioned at the processing station, the clamping and positioning stage commences. The machine uses a set of jaws or fixtures to firmly hold the case in place, preventing any movement during the rolling process. The positioning system, often guided by sensors and precision linear actuators, ensures that the case is aligned with the rolling tools (rollers) at the exact axial and radial positions required for the groove. This alignment is critical because even a slight deviation can result in grooves that are misaligned, leading to poor sealing or structural weaknesses.

The core of the grooving operation lies in the rolling stage. The machine is equipped with one or more sets of rolling rollers, which are typically made of high-hardness alloy materials to withstand the high pressures and wear associated with the process. These rollers are designed with a specific profile that matches the desired shape and dimensions of the groove (such as width, depth, and curvature). As the clamped battery case rotates (driven by a motor connected to the clamping mechanism), the rollers are brought into contact with the outer surface of the case. The rollers apply a controlled amount of pressure to the case, gradually deforming the metal to form the groove. The pressure, speed of rotation, and feed rate of the rollers are precisely controlled by the machine's PLC (Programmable Logic Controller) system, which is pre-programmed with parameters specific to the battery size and groove specifications. The rolling process is incremental, with the rollers making multiple passes over the same area to achieve the desired groove depth and surface finish, avoiding excessive stress on the case material that could cause cracking or thinning.

After the groove is formed, the machine proceeds to the unloading stage. The clamping jaws release the processed battery case, which is then moved out of the processing station by a discharge mechanism. This mechanism may use pushers or robotic arms to transfer the case to a conveyor belt, which transports it to the next stage of the battery manufacturing process, such as cap welding or electrolyte filling.

Modern cylindrical battery grooving machines are often integrated with advanced control and monitoring systems to ensure consistent quality. Sensors are used to detect parameters such as roller pressure, case rotation speed, and groove dimensions in real-time. If any deviation from the set parameters is detected, the machine can automatically adjust the process or stop operation to prevent defective products from being produced. Additionally, some machines are equipped with vision inspection systems that capture images of the rolled grooves, using image processing algorithms to check for defects such as uneven depth, burrs, or misalignment. This allows for immediate feedback and process optimization.

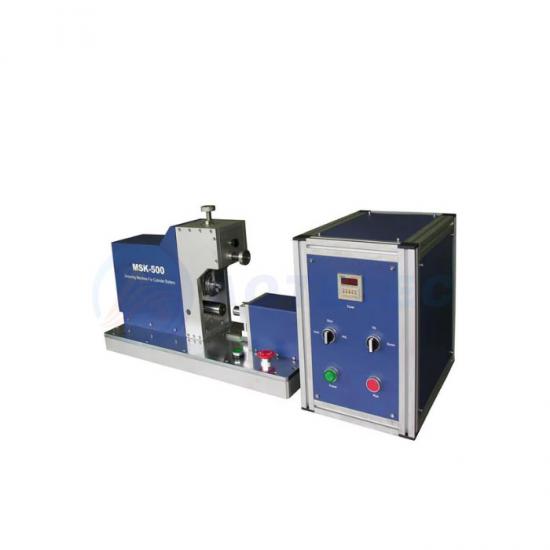

The design of the grooving machinevaries depending on the specific requirements of the battery production line. For high-volume manufacturing, fully automated machines with high throughput are used, capable of processing hundreds or even thousands of battery cases per minute. These machines often feature multiple processing stations, allowing for simultaneous feeding, rolling, and unloading of cases to maximize efficiency. For smaller production runs or specialized battery types, semi-automatic machines may be used, requiring some manual intervention in the feeding or unloading process.

The cylindrical battery grooving machineis a vital component in the battery manufacturing ecosystem, ensuring that battery cases are equipped with precise grooves that enable proper sealing, structural stability, and efficient assembly. Its working principle, involving automated feeding, precise clamping, controlled rolling, and systematic unloading, relies on the integration of mechanical precision and advanced control systems to achieve consistent and high-quality results. As the demand for high-performance cylindrical batteries continues to grow, the grooving machinewill remain a key focus for technological advancements, with ongoing efforts to improve precision, speed, and reliability to meet the evolving needs of the industry.
