In the field of battery research and development, the laboratory battery powder press machine stands as a cornerstone instrument, pivotal for fabricating battery electrodes and prototypes. Widely used in fields such as powder metallurgy, cement, catalysis, silicon hydrochloric acid, batteries, ceramics, and universities for component analysis. Powder is compressed into test pieces and adapted to various brands of infrared spectrometers and XRF X-ray fluorescence spectrometers to provide sample products.Its ability to precisely manipulate parameters such as pressure, temperature, and compression time is crucial for producing high - quality battery components with consistent performance.

1. Structure

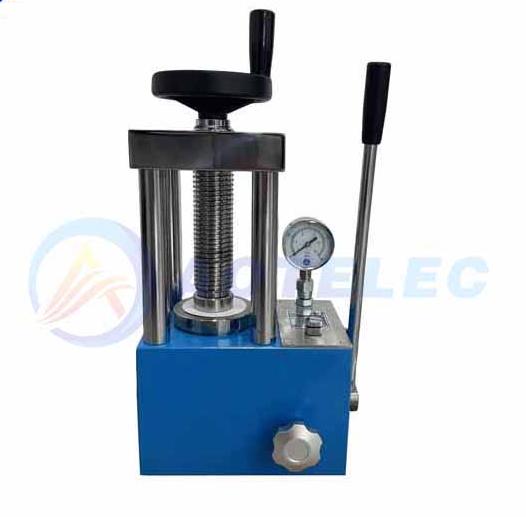

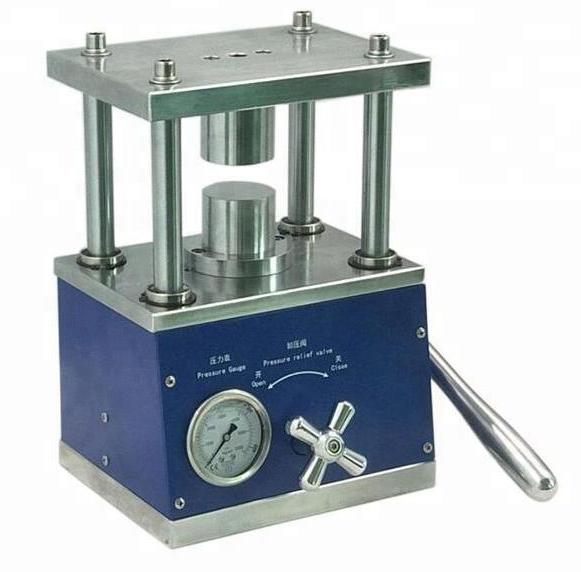

The frame and base, typically made of high - strength metals like stainless steel, provide stability and support. The pressure - generating system, available in hydraulic and mechanical types, applies the necessary force to compress battery powders. Hydraulic systems, with components such as pumps and cylinders, offer high force and precise control but require regular fluid maintenance. Mechanical systems, using screws or gears, are simpler, more cost - effective, and suitable for many basic applications.

The heating and temperature - control system, consisting of heating elements, sensors, and a control unit, ensures optimal processing temperatures. Heating elements in the platens heat the powders, while sensors monitor and the control unit adjusts the temperature in real - time. The control panel and interface, with buttons, switches, and often a touch - screen, enable operators to set parameters, start/stop operations, and monitor the machine's status.

2. Working Principle

First, battery powders, mixed with binders and conductive additives, are prepared. These powders are then placed in a mold on the press machine's platen. As the press activates, the pressure - generating system applies force, compacting the powders. Simultaneously, the heating system, if required, raises the temperature to promote bonding and improve material properties. After a set time, the pressure is released, and the compacted electrode or component is ejected.

3. Operation

Before use, conduct a thorough inspection for damage, check fluid and lubricant levels, and verify electrical connections. Set parameters like pressure, temperature, and pressing time based on material requirements. Carefully load the powder into the mold, ensuring even distribution. Start the press and closely monitor the process for any abnormalities. Once completed, wait for the machine to cool and depressurize before unloading the product.

4. Maintenance and Safety

Regularly lubricate moving parts, clean the machine, and replace worn - out components. For hydraulic systems, change the fluid as recommended. In case of issues like low pressure or temperature control problems, troubleshoot by checking relevant components. Always wear safety gear, including gloves, goggles, and lab coats. Ensure the machine is powered off during maintenance and follow strict protocols for handling battery powders, which may contain hazardous substances.

In summary, the laboratory battery powder press machine is essential for battery research. Proper understanding of its structure, operation, maintenance, and safety measures is key to leveraging its capabilities effectively.
