In the context of rapidly developing energy storage technologies, battery material research faces dual challenges of efficiency and precision. Although traditional coin cell testing methods are widely used, their cumbersome assembly process and non-reusable nature significantly constrain research efficiency. To address these issues, a novel detachable three-electrode test cell has emerged, with its innovative design concept and outstanding performance bringing revolutionary changes to battery material research.

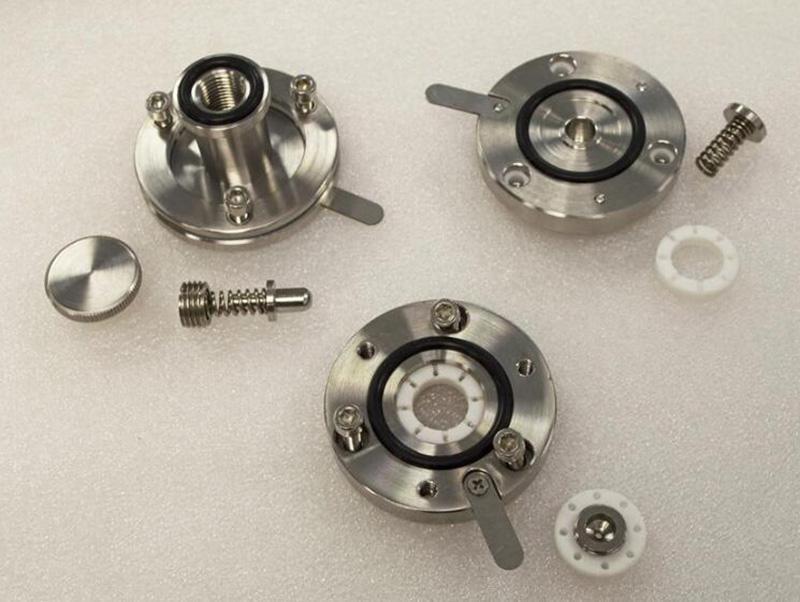

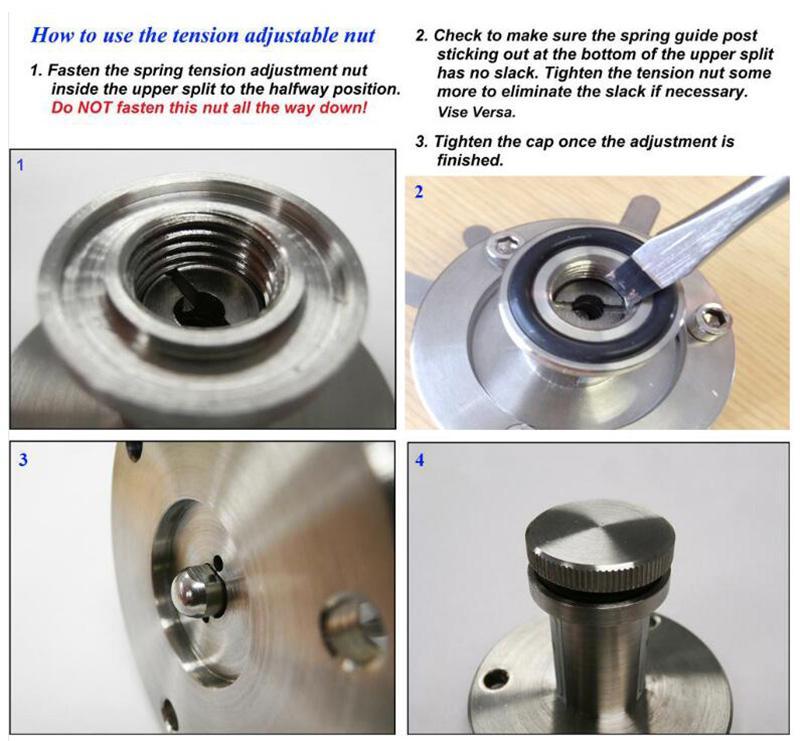

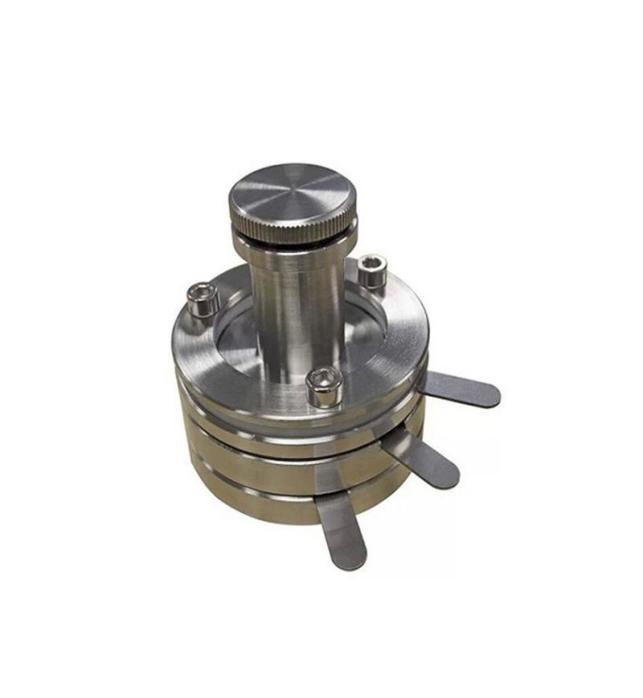

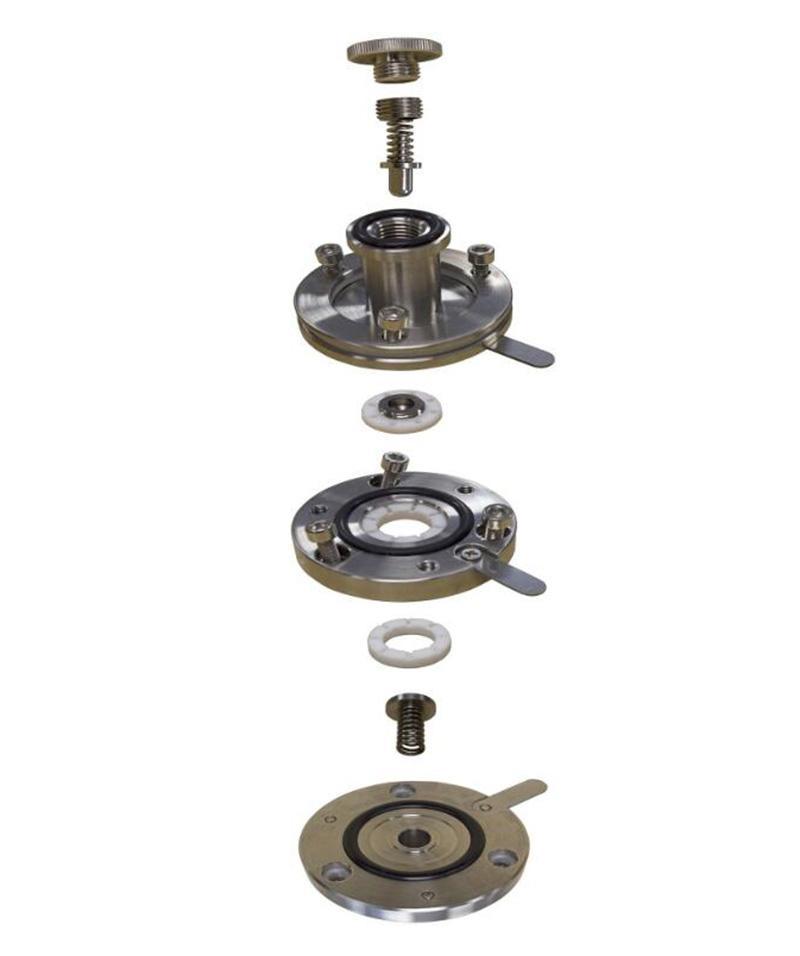

Constructed with an all-stainless-steel structure and a corrosion-resistant PTFE sealing system, this test cell provides a stable and reliable testing environment. Its most notable breakthrough compared to traditional methods is the complete elimination of crimping and sealing steps, as precise mechanical structures enable electrode fixation and contact. The three-electrode design is particularly ingenious, with a centrally placed reference electrode that allows real-time monitoring of potential changes in the working and counter electrodes. This feature provides unprecedented convenience for in-depth studies of electrode interface reaction mechanisms. In practice, researchers need only place 15mm diameter electrode sheets and 24mm separators into the test cell, then quickly complete sample loading via the spring tension adjustment device at the top—the entire process takes no more than five minutes, significantly improving efficiency over conventional methods.

From material selection to structural design, this test cell exemplifies engineering ingenuity. The use of 304 stainless steel ensures mechanical strength and corrosion resistance, while PTFE O-rings and guide sleeves provide excellent resistance to electrolyte corrosion, withstanding operating temperatures up to 250°C. This material combination not only guarantees stable performance under normal conditions but also enables the test cell to meet demanding testing requirements, such as those involving high-temperature electrolytes. Notably, the compact size of the test cell allows easy operation inside a glove box, a critical feature for studying air-sensitive materials like lithium metal anodes or sulfide solid electrolytes.

In terms of functionality, the test cell demonstrates comprehensive advantages. Its self-adjusting spring system intelligently regulates pressure to perfectly accommodate electrodes with thicknesses ranging from 0.1 to 2mm, eliminating data deviations caused by uneven pressure in traditional methods. After testing, a simple disassembly process allows electrode removal without sample damage, supporting electrode reuse and significantly reducing research costs. These characteristics make the test cell particularly suitable for long-term cycling performance evaluations of electrode materials. Researchers can conveniently remove electrodes after different cycle intervals for morphology and composition analysis, providing new approaches to understanding material degradation mechanisms.

Practical applications have fully demonstrated the test cell's value. In studies of nickel-rich cathode materials, cycling performance data obtained using this test cell showed high consistency with traditional coin cell test results while improving testing efficiency by more than threefold. More remarkably, with the precise potential information provided by the reference electrode, researchers clearly observed for the first time the specific potential ranges of phase transitions on the cathode material surface during cycling—a finding that provided critical guidance for material optimization. In solid electrolyte research, the test cell's high-temperature tolerance enabled stability evaluations of electrolyte-electrode interfaces under near-actual operating temperatures, yielding more relevant research data.

As testing needs grow increasingly diverse, the test cell's potential for expanded applications continues to emerge. In novel sodium-ion battery material screening, its rapid sample-changing capability has greatly accelerated material optimization. For lithium-sulfur battery studies, the three-electrode design helps researchers accurately distinguish capacity fade contributions from cathodes and anodes. In interface modification layer evaluations, the easy disassembly function enables multi-batch comparative experiments. These applications not only validate the test cell's reliability but also expand its utility in battery research.

Looking ahead, Its modular design allows for functional expansions, such as integrating temperature sensors for in-situ thermal analysis or connecting gas collection devices to study gas evolution reactions—enhancements that will further broaden its applications. With the incorporation of automation technology, the test cell may evolve into a high-throughput version to meet the specific needs of combinatorial material research. In the long term, the widespread adoption of such innovative testing tools will accelerate the development of new battery materials and contribute significantly to breakthroughs in energy storage technologies.

The development of this technology also reflects a new trend in battery research: innovations in testing methodologies are becoming an important driving force for material advancements. Traditionally, researchers have focused more on improving materials themselves while overlooking the importance of testing tools. In reality, sophisticated testing tools not only enhance research efficiency but also reveal critical phenomena that conventional methods struggle to observe. The successful application of this detachable three-electrode test cell sets an exemplary model for testing method innovation, with design concepts worth emulating in other research fields.

In summary, through ingenious structural design and material selection, this detachable three-electrode test cell effectively addresses numerous pain points of traditional testing methods, providing a more efficient and accurate solution for battery material research. Its widespread use in scientific research will not only accelerate the development of new battery materials but also promote further advancements in testing methodologies. As the energy transition accelerates, the value of such innovative research tools will become increasingly prominent, playing a key role in future battery technology breakthroughs.
