Introduction

In the rapidly evolving field of energy storage, pouch cell batteries have emerged as a critical technology due to their lightweight design, high energy density, and flexibility in shape. A pivotal step in their manufacturing process is the sealing of the battery pouch, which directly impacts performance, safety, and longevity. Sealing machines play a vital role in ensuring hermetic encapsulation of the electrode assembly and electrolyte, preventing leakage, moisture ingress, and gas evolution. This article provides an indepth analysis of the types of sealing machines used in pouch cell production, their functional roles, technical characteristics, and industry applications.

 1. Overview of Pouch Cell Sealing Requirements

Before delving into sealing machines, it is essential to understand the critical requirements for pouch cell sealing:

 Hermeticity: Absolute prevention of air, moisture, or electrolyte leakage.

 Mechanical Strength: Resistance to external stress, vibration, and thermal expansion.

 Material Compatibility: Compatibility with aluminumlaminated film (the primary pouch material).

 Process Precision: Consistent sealing width, temperature control, and alignment.

 Speed and Efficiency: High throughput to meet industrialscale production demands.

Failure in any of these aspects can lead to catastrophic failures, such as thermal runaway or capacity degradation.

 2. Types of Sealing Machines for Pouch Cells

Sealing machines are categorized based on their sealing mechanisms, automation level, and application stages (e.g., primary sealing, secondary sealing, degassing). Below are the most widely used types:

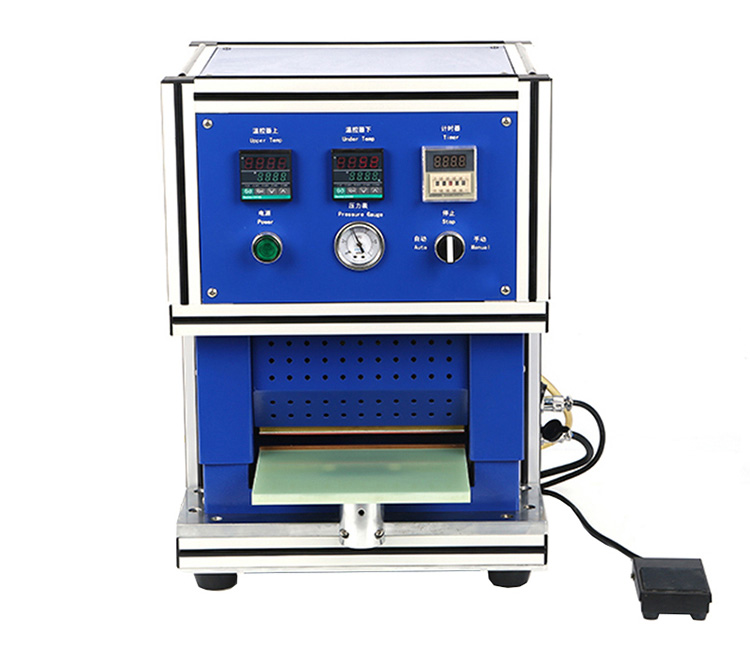

 2.1 Heat Sealing Machines

Role:

Heat sealing is the most common method for bonding the aluminum laminated film layers. It uses controlled heat and pressure to melt the polymer layer (typically polypropylene or polyethylene) inside the laminated film, creating a fusion bond.

Key Characteristics:

 Temperature Control: Precision heating elements (e.g., ceramic heaters or nichrome wires) maintain temperatures between 120°C to 200°C, depending on the polymer’s melting point.

 Pressure System: Pneumatic or servodriven systems apply uniform pressure (e.g., 0.2–0.5 MPa) to ensure consistent seal thickness (typically 1–3 mm).

 Sealing Jaws: Customizable jaws with Teflon coatings prevent film sticking.

 Applications: Primary sealing (electrode tab integration), secondary sealing (final encapsulation postelectrolyte filling), and edge sealing.

Advantages:

 Highspeed operation (up to 30–50 pouches per minute).

 Compatible with multilayer laminated films.

 Adjustable parameters for diverse pouch designs.

Limitations:

 Risk of overheating, which may degrade the polymer or damage internal components.

 Requires precise alignment to avoid wrinkles or weak seals.

 2.2 Cold Sealing Machines

Role:

Cold sealing employs pressuresensitive adhesives (PSAs) or UVcurable resins to bond pouch layers without heat. This method is ideal for heatsensitive components or materials.

Characteristics:

 Adhesive Application: Rollerbased systems apply PSAs uniformly to the sealing area.

 Curing Mechanisms: UV lamps or pressure rollers activate the adhesive.

 Temperature: Ambient or slightly elevated (≤60°C).

Applications:

 Sealing pouches containing temperaturesensitive electrolytes.

 Repairing defective seals in preformed pouches.

Advantages:

 Eliminates thermal stress on battery components.

 Suitable for thin or delicate laminated films.

Limitations:

 Lower mechanical strength compared to heat seals.

 Slower curing times may reduce throughput.

2.3 Ultrasonic Sealing Machines

Role:

Ultrasonic sealing uses highfrequency vibrations (20–40 kHz) to generate localized heat through friction, melting the polymer layers for bonding.

Characteristics:

 Frequency and Amplitude: Adjustable ultrasonic generators and horn designs.

 Energy Efficiency: Minimal heat dissipation compared to conventional heat sealing.

 Sealing Speed: Rapid cycles (e.g., 0.5–2 seconds per seal).

Applications:

 Highprecision sealing of tab regions (critical for preventing electrolyte leakage).

 Multilayer films with heterogeneous materials.

Advantages:

 No external heat source reduces thermal damage risks.

 Excellent for small or intricate seal geometries.

Limitations:

 High initial equipment cost.

 Limited to materials that respond well to ultrasonic energy.

 2.4 Laser Sealing Machines

Role:

Laser sealing employs focused laser beams (e.g., CO₂ or fiber lasers) to melt and fuse polymer layers. This method is gaining traction for its precision and noncontact nature.

Characteristics:

 Laser Parameters: Wavelength (9–11 µm for CO₂ lasers), power (50–200 W), and scan speed.

 Realtime Monitoring: Integrated sensors detect seal quality and adjust parameters.

Applications:

 Highvalue pouch cells requiring micronlevel precision (e.g., aerospace, medical devices).

 Hermetic sealing of degassing ports postformation.

Advantages:

 Noncontact process eliminates mechanical wear.

 Ultranarrow seals (<0.5 mm) save material and space.

Limitations:

 High equipment and maintenance costs.

 Requires strict safety protocols for laser use.

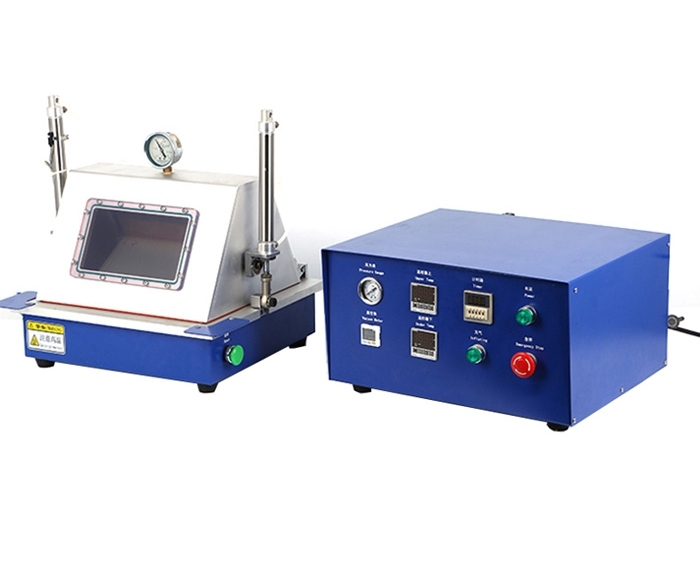

 2.5 Vacuum Sealing Machines

Role:

Vacuum sealing removes air from the pouch before final sealing, critical for preventing gas accumulation and improving electrolyte wettability.

Characteristics:

 Vacuum Chambers: Batch or inline systems with vacuum levels down to 0.1–1 mbar.

 Integration: Often combined with heat or ultrasonic sealing units.

Applications:

 Primary sealing in dry room environments.

 Degassing and final sealing postformation.

Advantages:

 Enhances cell performance by eliminating air pockets.

 Reduces oxidation risks during storage.

Limitations:

 Slower cycle times due to vacuum pumping.

 Complex maintenance of vacuum systems.

 3. Critical Technical Parameters and Innovations

Modern sealing machines incorporate advanced technologies to address industry challenges:

 3.1 Precision Control Systems

 Closedloop Temperature Control: PID controllers with thermocouples ensure ±1°C accuracy.

 Force Feedback: Servo motors adjust pressure dynamically to accommodate film thickness variations.

 3.2 Vision Alignment Systems

 CCD Cameras: Automatically align pouches and electrode tabs within ±0.1 mm tolerance.

 AI Algorithms: Detect defects (e.g., wrinkles, voids) in real time.

 3.3 Hybrid Sealing Systems

 Heat + Ultrasonic: Combines speed of heat sealing with precision of ultrasonics for tab regions.

 Laser + Vacuum: Ensures hermetic seals in ultralow moisture environments.

 3.4 Industry 4.0 Integration

 IoT Connectivity: Remote monitoring of machine performance and predictive maintenance.

 Digital Twins: Simulate sealing processes to optimize parameters before physical trials.

 4. Selection Criteria for Sealing Machines

Choosing the right sealing machine depends on multiple factors:

 Production Scale: Highspeed lines favor heat or ultrasonic sealers; small batches may use laser systems.

 Pouch Material: Thicker films require higher pressure/heat, while PSAs suit temperaturesensitive layers.

 Budget: Laser and ultrasonic machines entail higher CAPEX but lower defect rates.

 Safety Standards: Compliance with IEC 62133, UL 1642, and ISO 9001 certifications.

 5. Challenges and Future Trends

Challenges:

 Material Evolution: New laminate films (e.g., ceramiccoated) demand adapted sealing parameters.

 Sustainability: Reducing energy consumption and polymer waste.

Future Trends:

 AIdriven Adaptive Sealing: Machine learning adjusts parameters in real time based on material feedback.

 Green Manufacturing: Biobased adhesives and recyclable pouch materials.

 Miniaturization: Compact sealers for solidstate or flexible batteries.

Sealing machines are the backbone of pouch cell manufacturing, bridging the gap between material science and production efficiency. From traditional heat sealing to cuttingedge laser systems, each technology offers unique advantages tailored to specific applications. As the demand for highperformance, safe, and sustainable batteries grows, advancements in sealing machinery will continue to play a pivotal role in shaping the future of energy storage.
