Introduction

The rapid growth of lithium-ion battery demand for electric vehicles, consumer electronics, and renewable energy storage has intensified the need for precision manufacturing processes. Among the critical tools enabling high-quality electrode production are manual die cutters—specialized devices designed to cut cathode and anode electrodes into precise shapes for pouch cells. While automated systems dominate large-scale production, manual die cutters remain indispensable for prototyping, small-batch manufacturing, and quality control. This article explores their significance in battery fabrication and provides a step-by-step guide to their operation.

Importance of Manual Die Cutters in Battery Manufacturing

1. Precision and Consistency

Pouch cell performance relies on the dimensional accuracy of electrodes. Even minor deviations in electrode geometry—such as uneven edges, burrs, or inconsistent lengths—can lead to misalignment during stacking, reduced energy density, or internal short circuits. Battery Electrode Cutter equipped with hardened steel blades or laser-cut dies ensure clean, repeatable cuts with tolerances as tight as ±0.1 mm. This precision minimizes material waste and guarantees uniform electrode layers, a prerequisite for stable electrochemical performance.

2. Flexibility for R&D and Custom Designs

Battery developers frequently experiment with novel electrode geometries to optimize energy density, thermal management, or fast-charging capabilities. Manual die cutters allow engineers to quickly test different shapes (e.g., tabs, notches, or multi-segment designs) without reprogramming complex automated systems. For startups and research labs, this agility accelerates innovation cycles while reducing tooling costs.

3. Cost-Effective Small-Batch Production

While automated die-cutting lines excel in mass production, their high setup costs and minimum order quantities make them impractical for niche applications (e.g., medical devices, aerospace batteries). Manual cutters enable economical production of 100–10,000 units, bridging the gap between lab-scale experiments and full-scale industrialization.

4. Material Compatibility

Modern electrodes use diverse substrates, including lithium cobalt oxide (LCO) cathodes, graphite anodes, and silicon-composite coatings. Manual systems accommodate varying material thicknesses (50–200 μm) and brittleness by allowing operators to adjust cutting pressure and speed. This adaptability prevents delamination or cracking, particularly in brittle materials like lithium iron phosphate (LFP).

5. Quality Control and Rework

In automated lines, defective electrodes often require entire batches to be scrapped. Manual cutters empower technicians to salvage marginally flawed materials by recutting misaligned sections—a critical advantage given the high cost of electrode raw materials like lithium and cobalt.

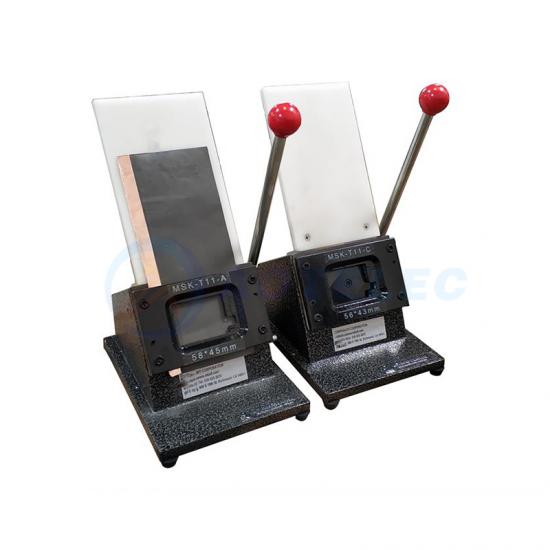

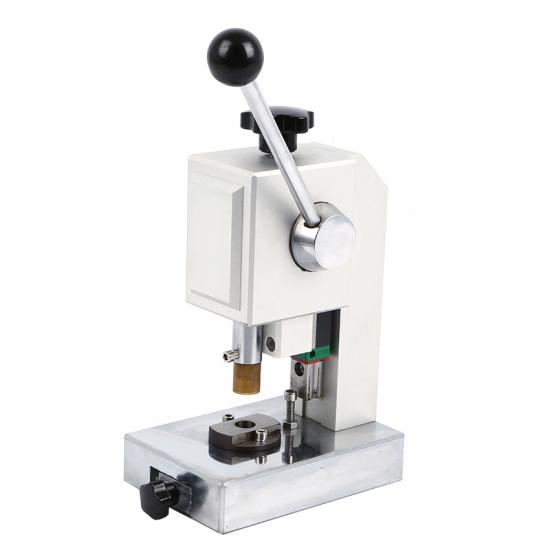

Operational Guide for Manual Die Cutters

Step 1: Material Preparation

- Electrode Sheets: Ensure cathode/anode sheets are properly coated, dried, and calendared. Moisture or uneven coatings can cause blade wear or incomplete cuts.

- Die Selection: Choose a die matching the target electrode dimensions. Common shapes include rectangular, tabbed, or custom contours. Verify die sharpness; replace if edges show signs of rounding.

Step 2: Machine Setup

1. Mount the Die: Secure the cutting die onto the press plate using clamps or magnetic holders. Align it parallel to the base to avoid angled cuts.

2. Adjust Pressure: Set the lever mechanism to apply sufficient force for clean penetration without crushing the current collector (e.g., aluminum foil for cathodes). Conduct test cuts on scrap material to calibrate.

3. Position Guides: Install alignment guides or laser pointers to ensure consistent sheet placement.

Step 3: Cutting Process

1. Loading: Place the electrode sheet onto the cutter’s base, aligning it with guides. For double-sided coatings, ensure the active material faces upward to prevent contamination.

2. Actuation: Lower the press handle smoothly and evenly. Jerky movements can tear the material or create jagged edges.

3. Ejection: Raise the handle and remove the cut electrode. Use a vacuum pickup tool to avoid touching the active material with bare hands.

Step 4: Post-Cutting Inspection

- Visual Check: Examine edges for burrs, cracks, or delamination under a magnifying lens.

- Dimensional Verification: Measure critical parameters (length, width, tab position) using digital calipers or optical comparators.

- Electrical Test: Spot-check conductivity at cut edges to detect micro-cracks affecting electron pathways.

Step 5: Maintenance

- Blade/Dies: Clean residues after each use with isopropyl alcohol. Lubricate moving parts weekly.

- Alignment: Recalibrate guides every 500 cycles to compensate for mechanical wear.

Advantages Over Alternative Methods

- Laser Cutting: While lasers offer precision, they generate heat-affected zones (HAZs) that degrade electrode materials. Manual dies produce no thermal stress.

- Ultrasonic Cutting: Suitable for polymers but struggles with metal foils. Manual systems handle multi-layer electrodes (foil + coating) more reliably.

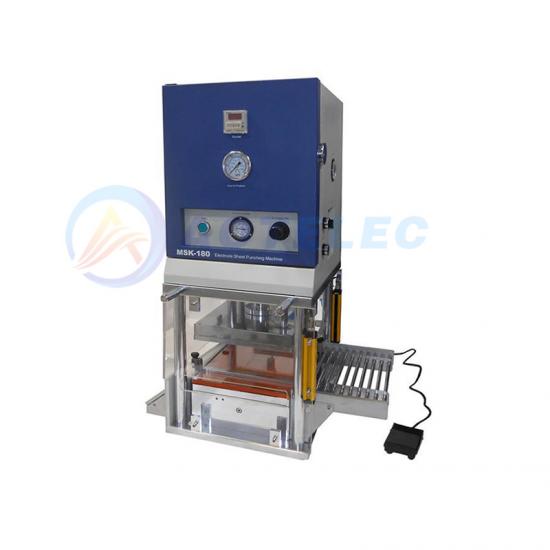

- Punching Presses: Faster for simple shapes but lack the versatility for intricate designs.

Challenges and Mitigation Strategies

1. Operator Skill Dependency: Inconsistent force application may cause variability. Solution: Implement training programs and torque-limiting handles.

2. Throughput Limitations: Not ideal for high-volume orders. Solution: Use semi-automatic feeders to boost productivity.

3. Material Slippage: Thin foils may shift during cutting. Solution: Apply low-tack adhesives to the baseplate.

Manual die cutters serve as a linchpin in pouch cell manufacturing, offering unmatched precision, flexibility, and cost efficiency for small to medium-scale operations. By mastering their use, battery manufacturers can streamline prototyping, enhance quality control, and adapt swiftly to evolving market demands. As the industry pivots toward solid-state and lithium-sulfur chemistries requiring novel electrode architectures, these tools will remain vital to pushing the boundaries of energy storage technology.
