In the silent revolution of energy storage, a remarkable piece of industrial machinery works with micron-level precision to create the power cores of our electrified future. The pouch cell winding machine, often overlooked outside manufacturing circles, plays a pivotal role in determining the performance, safety, and cost-effectiveness of the lithium-ion batteries powering everything from smartphones to electric vehicles. Let's unravel the engineering marvel behind these machines and understand their crucial position in modern battery production.

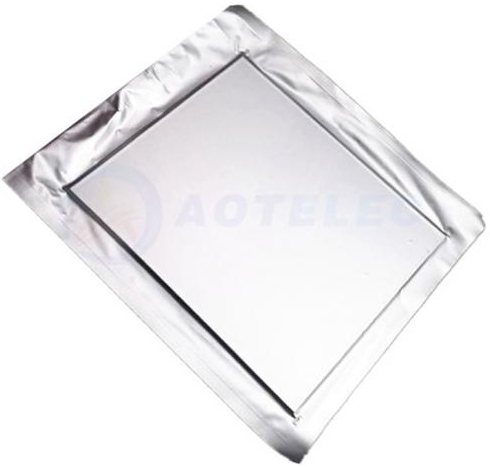

Anatomy of a Pouch Cell

Before examining the winding machine, we must understand its creation. Unlike rigid cylindrical or prismatic cells, pouch cells utilize flexible laminated packaging (hence "soft package") containing stacked or wound electrodes. This design offers superior energy density (up to 300 Wh/kg) and flexible form factors - advantages driving their dominance in portable electronics and growing EV adoption (35% of global EV batteries in 2023, per SNE Research).

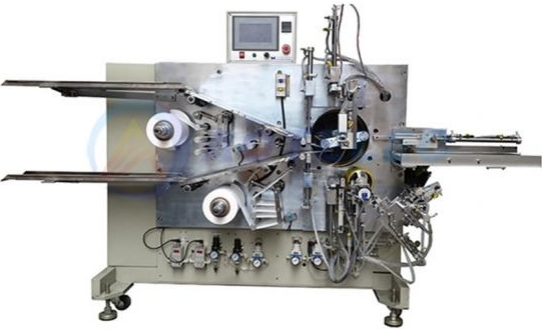

The Winding Process Demystified

1. Material Feeding & Alignment

The machine begins by feeding electrode sheets (anode and cathode) and separator materials from jumbo rolls. A typical 100Ah EV battery requires:

- 20m-long anode (copper foil with graphite coating)

- 22m cathode (aluminum foil with NMC/LFP)

- 45m polymer separator(7-16μm thick)

Laser sensors and machine vision systems align materials with ≤50μm precision - critical given that 1mm misalignment can reduce capacity by 5% (Oak Ridge National Lab data).

2. Tension Control Ballet

As materials progress through 12-24 guide rollers, servo motors maintain precise tension (2-15N range). Too much tension risks tearing the brittle cathode coating (50-100μm thick); too little causes wrinkling. Advanced machines use real-time tension mapping, adjusting every 0.1 seconds.

3. The Core Winding

Here's where the magic happens. The "winding heart" uses a rotating spindle (200-800 RPM) to create the jellyroll structure:

- Cathode-separator-anode-separator layers wind into a Swiss-roll configuration

- Modern machines achieve winding pitch accuracy of ±0.1mm

- Temperature-controlled chambers (25±1°C) prevent thermal expansion errors

4. Tab Welding

Ultrasonic welders attach electrode tabs with 5000-10000 vibrations/sec, creating bonds that must withstand 50kg pull force (per GB/T 31485 standard).

5. Ejection & Quality Control

The wound cell undergoes:

- X-ray inspection (detecting ≥100μm defects)

- Capacitance testing (±1% accuracy)

- Automated dimensional checks

Why Winding Matters: The Performance Multiplier

1. Energy Density Optimization

Precise winding minimizes "dead space" between layers. Top-tier machines achieve 98.5% material utilization vs. 92% in manual processes. For a 75kWh EV battery, this difference equals 25km extra range.

2. Safety Assurance

Microscopic wrinkles or metal particle contamination (≥20μm) from poor winding can cause dendrite growth and thermal runaway. Modern winding machines integrate:

- 5MP+ cameras detecting 15μm particles

- Electrostatic dust removal (99.5% efficiency)

- AI-powered defect prediction

3. Production Scalability

Leading winding machines now achieve:

- 15-20PPM (cells per minute)

- <0.3% defect rate

- Quick changeover (<10 minutes between models)

This enables cost reductions from $150/kWh (2015) to $97/kWh (2023 BloombergNEF data) for Li-ion batteries.

Evolution of Winding Technology

1. First Generation (2000s)

- Manual material loading

- ±0.3mm precision

- 5PPM speed

2. Current State (2020s)

- AI-powered "self-learning" winding

- Digital twin simulations

- 0.5μm laser measurement

- 30PPM ultra-high-speed models

3. Future Frontiers

- Dry electrode winding (eliminating solvent)

- Solid-state battery adaptation

- Quantum magnetic alignment

Market Impact & Sustainability

With the global battery manufacturing capacity projected to reach 6.8TWh by 2030 (Benchmark Mineral Intelligence), winding machine advancements directly contribute to:

- Annual savings of 18 million tons CO2 through improved production efficiency

- 30% reduction in factory footprint via compact designs

- Enabling battery recycling through easier cell disassembly

From the micro-scale precision rivaling semiconductor fabs to their macro-scale impact on global decarbonization, pouch cell winding machines exemplify how industrial innovation powers technological revolutions. As battery demand grows 25% annually (IDTechEx), these unassuming machines will remain central to building the energy storage infrastructure of tomorrow - one perfectly wound layer at a time.
