Introduction

In the rapidly evolving battery industry, viscosity testing has emerged as a cornerstone of quality control, particularly in the production of lithiumion batteries. Electrode slurries, electrolytes, and other battery components require precise viscosity management to ensure optimal performance, safety, and longevity. Viscosity testing instruments, such as rotational viscometers and rheometers, play a pivotal role in characterizing fluid behavior during manufacturing.

1. Why Viscosity Matters in Battery Manufacturing

Viscosity—the measure of a fluid’s resistance to flow—directly impacts critical stages of battery production:

1.1 Electrode Slurry Preparation

Electrode slurries consist of active materials (e.g., lithium cobalt oxide, graphite), conductive agents, binders (e.g., PVDF), and solvents.

Optimal viscosity ensures uniform particle dispersion, preventing sedimentation and enabling consistent coating on current collectors (foils).

Improper viscosity leads to defects like agglomeration, uneven thickness, or cracking during drying, degrading battery capacity and cycle life.

1.2 Electrolyte Formulation

Liquid electrolytes (e.g., LiPF₆ in organic solvents) and gel polymer electrolytes require precise viscosity control to:

Facilitate ion transport.

Maintain mechanical stability in flexible or solidstate batteries.

1.3 Quality Assurance

Viscosity deviations signal batch inconsistencies, contamination, or degradation of raw materials, enabling early corrective actions.

2. Types of Viscosity Testing Instruments

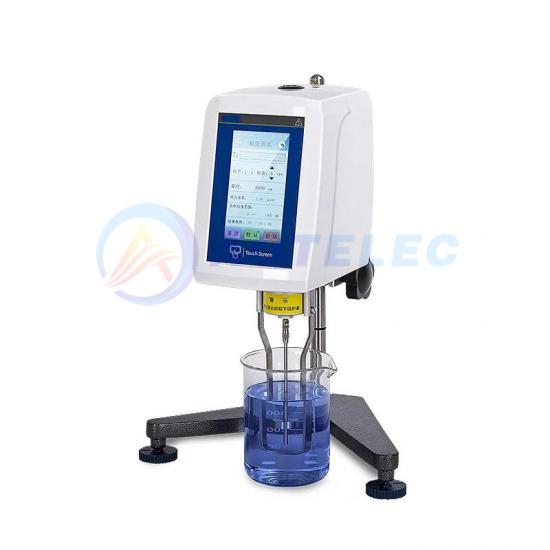

2.1 Rotational Viscometers

Principle: Measure torque required to rotate a spindle immersed in the fluid at a constant speed.

Newtonian fluids: Viscosity remains constant regardless of shear rate (e.g., simple electrolytes).

NonNewtonian fluids: Viscosity changes with shear rate (e.g., electrode slurries exhibiting shearthinning behavior).

Applications:

Quick QC checks for electrolytes and lowviscosity slurries.

Temperaturecontrolled testing (e.g., analyzing viscosity at 25°C ± 0.1°C).

2.2 Rheometers

Principle: Apply controlled stress or strain to analyze complex flow properties:

Shear rate sweeps: Characterize shearthinning (common in slurries) or shearthickening behavior.

Oscillation tests: Measure viscoelasticity (critical for gel electrolytes).

Applications:

Optimizing slurry formulations for highspeed coating processes.

Evaluating electrolyte stability under mechanical stress.

2.3 Inline Viscometers

Principle: Integrated into production lines for realtime viscosity monitoring using vibrational or ultrasonic sensors.

Applications:

Continuous adjustment of mixing parameters (e.g., solvent ratios, mixing speed).

Detecting deviations in largescale slurry production.

3. Working Principles in Detail

3.1 Rotational Viscometry

1. Spindle Selection: Choose spindle geometry (e.g., cylindrical, disc) based on viscosity range.

2. Calibration: Calibrate using standard fluids (e.g., silicone oil) to ensure accuracy.

3. Measurement:

Immerse spindle into the sample.

Rotate at a fixed speed; measure resistance (torque).

Calculate viscosity (η) via the formula.

3.2 Rheological Analysis

1. Shear Rate Ramp Test:

Increase shear rate gradually to simulate coating or pumping conditions.

Plot viscosity vs. shear rate to identify shearthinning thresholds.

2. TimeDependent Behavior:

Conduct thixotropy tests to evaluate slurry recovery after highshear mixing.

3. Temperature Ramp Tests:

Assess viscosity changes under thermal cycling (e.g., electrolyte performance in extreme temperatures).

4. Key Applications in Battery Production

4.1 Electrode Slurry Development

ShearThinning Optimization:

High shear rates during coating require slurries to thin temporarily for smooth application.

Rheometers help identify optimal binder/solvent ratios to balance viscosity and stability.

Particle Settling Prevention:

Static viscosity measurements ensure slurries retain homogeneity during storage.

4.2 Electrolyte Performance

Ionic Conductivity vs. Viscosity Tradeoff:

Lower viscosity enhances ion mobility but may compromise mechanical integrity.

Rheometers quantify this balance for liquid and polymer electrolytes.

4.3 SolidState Batteries

Ceramic/Polymer Composite Analysis:

Rheology tests guide the formulation of hybrid electrolytes with acceptable flow properties for screen printing or lamination.

5. Challenges and Solutions

5.1 NonNewtonian Fluid Complexity

Challenge: Electrode slurries exhibit timedependent and sheardependent behavior.

Solution: Use rheometers with dynamic shear rate control and data modeling software.

5.2 Temperature Sensitivity

Challenge: Viscosity varies significantly with temperature fluctuations.

Solution: Equip instruments with Peltier temperature control (±0.01°C accuracy).

5.3 HighViscosity Materials

Challenge: Thick slurries (e.g., siliconanode formulations) may exceed standard instrument ranges.

Solution: Use coneandplate rheometers with narrow gap settings.

6. Emerging Trends

6.1 AIDriven Viscosity Prediction

Machine learning models correlate rheological data with slurry performance, reducing trialanderror in R&D.

6.2 Portable Viscometers

Handheld devices enable onsite QC in decentralized battery gigafactories.

6.3 Sustainable Testing

Closedloop systems recycle test samples to minimize solvent waste.

7. Best Practices for Accurate Testing

1. Sample Preparation:

Degas slurries to remove air bubbles.

Preshear samples to erase prior shear history.

2. Calibration: Validate instruments daily with certified reference materials.

3. Data Interpretation:

Use software tools (e.g., HerschelBulkley model) to analyze nonNewtonian fluids.

Viscosity testing instruments are indispensable for advancing battery technology, ensuring that materials meet stringent performance criteria. From optimizing electrode coatings to refining solidstate electrolytes, these tools bridge the gap between labscale innovation and industrialscale production. As batteries evolve toward higher energy densities and faster charging, precision viscosity control will remain a critical enabler of quality and reliability.
