Introduction

In the heart of every lithium-ion battery lies its electrodes—carefully engineered layers of active materials that determine energy density, cycle life, and safety. The process of transforming raw electrode slurries into uniform, defect-free coatings on metal foils relies on two unsung heroes: doctor blades and coating applicators. These precision tools are pivotal in defining the thickness, consistency, and micro-structure of battery electrodes.

1. The Critical Role of Electrode Coating in Battery Performance

Before diving into the tools themselves, it’s essential to understand why electrode coating quality is non-negotiable:

Energy Density: Uniform coatings maximize active material loading while minimizing voids.

Cycle Life: Defect-free layers prevent lithium dendrite formation and mechanical degradation.

Manufacturing Yield: Consistent coating reduces scrap rates in high-volume production.

2. Doctor Blades: The Gatekeepers of Coating Thickness

2.1 What is a Doctor Blade?

A doctor blade is a precision-engineered metal or polymer blade used to meter and spread electrode slurries onto current collector foils (e.g., aluminum for cathodes, copper for anodes). It ensures the slurry is applied at a controlled thickness before drying.

2.2 Types of Doctor Blades

Fixed-Gap Blades:

A rigid blade (often stainless steel) set at a fixed height above the substrate.

Advantage: Simple design, low cost.

Limitation: Limited adaptability to slurry viscosity changes.

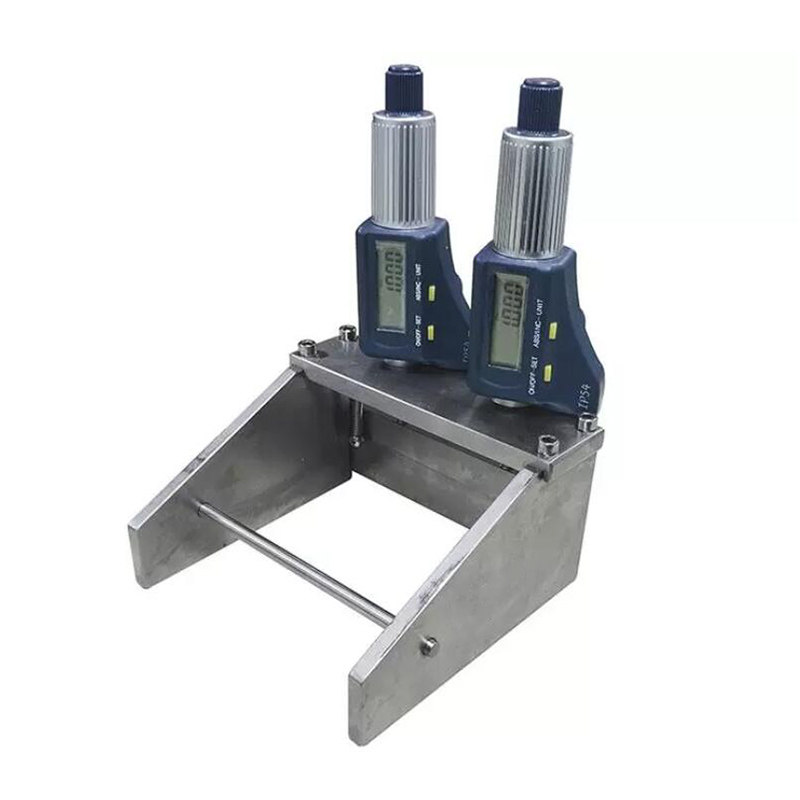

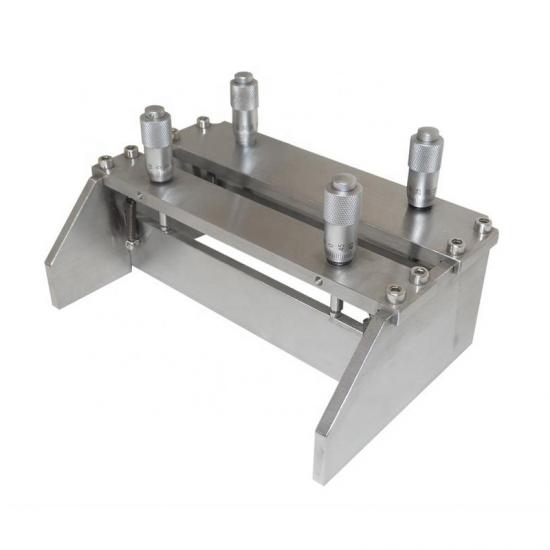

Adjustable Blades:

Incorporate micro-adjustment screws or pneumatic systems to fine-tune the gap (typically 50–500 μm).

Use Case: High-mix production lines with varying slurry formulations.

Composite Blades:

Polymer-coated edges (e.g., polyurethane) to reduce friction and wear.

Benefit: Minimizes scratches on delicate foils.

2.3 Working Principle

1. Slurry Delivery: The slurry is deposited in front of the blade via a slot die or hopper.

2. Metering: As the substrate (foil) moves under the blade, the gap between the blade and foil determines the wet coating thickness.

3. Shearing Action: The blade’s edge generates shear forces that align particles in the slurry, enhancing conductivity.

3. Coating Applicators: Beyond the Blade

While doctor blades are fundamental, modern coating systems integrate advanced applicators to achieve higher precision and speed.

3.1 Slot-Die Coaters

Design: A precision-manufactured die with a narrow slot distributes slurry evenly onto the substrate.

Working Principle:

Pump-controlled slurry flow ensures consistent delivery.

Combined with a doctor blade or roller for final thickness control.

Advantages:

Handles high-viscosity slurries (e.g., silicon-anode mixes).

Enables multi-layer coating in a single pass.

3.2 Roller Coaters (Gravure/Roll-to-Roll)

Gravure Coating:

A engraved roller picks up slurry and transfers it to the substrate.

Use Case: Ultra-thin coatings (<20 μm) for high-energy-density cells.

Reverse Roll Coating:

Two counter-rotating rollers control slurry transfer, ideal for shear-sensitive materials.

3.3 Spray Coaters

Principle: Atomizes slurry into fine droplets sprayed onto the substrate.

Applications:

3D electrode architectures (e.g., thick electrodes for solid-state batteries).

Low-material-waste processes.

4. Key Challenges in Coating Tool Design

4.1 Slurry Rheology Compatibility

Shear-Thinning Behavior: Most electrode slurries reduce viscosity under shear (e.g., during blade coating). Tools must accommodate this to avoid uneven coatings.

Solution: Adjust blade angle or use dynamic gap control based on real-time viscosity data.

4.2 Edge Control and Defect Prevention

Common Defects:

Streaks: Caused by blade nicks or slurry agglomerates.

Edge Beading: Excess slurry buildup at foil edges.

Mitigation:

Laser-polished blade edges (Ra < 0.2 μm).

Edge vacuum systems to remove excess slurry.

4.3 Wear and Maintenance

Blade Degradation:

Abrasive particles in slurries (e.g., silicon) erode blade edges, altering coating thickness.

Innovations:

Diamond-like carbon (DLC) coatings to extend blade lifespan.

AI-driven wear prediction for proactive replacement.

5. Innovations Driving the Next Generation of Coating Tools

5.1 Adaptive Coating Systems

Closed-Loop Control:

Inline thickness sensors (e.g., beta radiation, laser triangulation) adjust blade gaps in real time.

Example: Tesla’s Gigafactory lines use such systems to maintain ±2 μm tolerance.

5.2 Ultrasonic Doctor Blades

Technology: High-frequency vibrations (20–40 kHz) reduce slurry adhesion to the blade.

Benefits:

Eliminates coating streaks.

Compatible with sticky binders like PVDF.

5.3 Sustainable Design

Material Recycling:

Scrap slurry collected during coating is filtered and reused.

Energy Efficiency:

Low-friction blade coatings reduce motor power consumption by up to 30%.

6. Case Study: Coating Tools in Action

6.1 High-Speed Anode Coating for EVs

Challenge: Coating 10-meter-wide copper foil at 80 m/min without defects.

Solution:

Composite doctor blade with DLC coating.

Slot-die applicator with multi-zone temperature control.

Outcome: 99.5% coating uniformity, enabling 500 Wh/kg batteries.

6.2 Solid-State Battery Electrodes

Requirement: Ultra-thick coatings (≥200 μm) for sulfide-based electrolytes.

Tool Used: Pneumatic-adjustable doctor blade with anti-clogging design.

Result: Crack-free electrodes with 5C fast-charging capability.

7. The Future of Coating Tools

7.1 AI-Optimized Coating Parameters

Machine learning algorithms analyze historical data to predict ideal blade gaps, speeds, and slurry formulations.

7.2 Nanoscale Precision

Atomic-layer deposition (ALD)-assisted coatings for sub-micron electrode layers in microbatteries.

7.3 Hybrid Systems

Combining slot-die, spray, and blade coating for gradient electrodes (e.g., silicon-carbon anodes).

Doctor blades and coating applicators may lack the glamour of battery chemistry breakthroughs, but they are the linchpins of scalable, high-quality electrode manufacturing. As the demand for faster-charging, longer-lasting batteries grows, innovations in coating tool design—from AI-driven adaptive systems to wear-resistant materials—will play a pivotal role in turning lab-scale concepts into commercial realities. For engineers and researchers, mastering these tools is not just about process control; it’s about shaping the energy storage solutions of tomorrow.
