Introduction

In the intricate process of battery manufacturing, thermal treatment plays a decisive role in defining the structural, electrochemical, and mechanical properties of materials. Muffle furnaces and hightemperature furnaces are indispensable tools for processes such as electrode sintering, solidstate electrolyte synthesis, and precursor calcination.

1. Fundamental Differences Between Muffle Furnaces and HighTemperature Furnaces

While both tools are designed for heat treatment, their distinct designs cater to different needs in battery manufacturing:

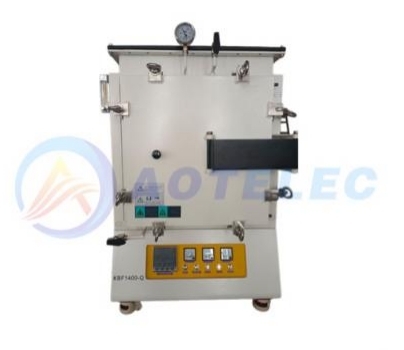

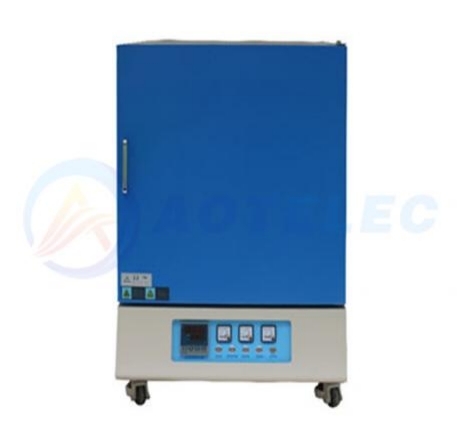

1.1 Muffle Furnaces

Design:

A sealed chamber (muffle) isolates samples from combustion gases, ensuring contaminationfree heating.

Heating elements (e.g., Kanthal wires) surround the muffle, operating in air or inert atmospheres.

Temperature Range: Typically up to1,200°C.

Key Advantage: Precise control over atmospheric conditions (e.g., O₂, N₂, Ar).

1.2 HighTemperature Furnaces

Design:

Open or semiopen configurations with advanced insulation (e.g., ceramic fiber).

Use silicon carbide (SiC) or molybdenum disilicide (MoSi₂) heating elements.

Temperature Range:1,200°C to 1,800°C or higher.

Key Advantage: Sustained operation at extreme temperatures for processes like ceramic sintering.

2. Critical Applications in Battery Manufacturing

2.1 Electrode Material Synthesis

Cathode Precursor Calcination (e.g., NMC, LFP):

Process: Mixed metal hydroxides/oxides are heated in a muffle furnace (600–900°C) to form crystalline cathode powders.

Impact:

Temperature uniformity ensures consistent crystal structure, directly influencing Liion diffusion rates.

Poor calcination leads to phase impurities (e.g., rocksalt phases in NMC), reducing capacity.

Anode Graphitization:

Process: Amorphous carbon (e.g., petroleum coke) is graphitized in hightemperature furnaces (2,500–3,000°C) under inert gas.

Impact: Higher graphitization degrees improve anode conductivity and cycle life.

2.2 Solid- State Electrolyte Production

Sintering of Ceramic Electrolytes (e.g., LLZO, LLTO):

Process: Powder compacts are sintered in hightemperature furnaces (1,200–1,500°C) to achieve dense, ionconductive ceramics.

Challenges:

Volatilization of lithium at high temps requires precise atmosphere control (e.g., Lirich ambient).

Grain boundary resistance is minimized through optimized sintering profiles.

GlassCeramic Electrolytes:

Process: Meltquenched glass is crystallized in muffle furnaces (800–1,000°C) to form Liion conductive phases.

2.3 Binder Removal and Electrode Sintering

Binder BurnOff:

Process: Electrode green films (with PVDF or PTFE binders) are heated in muffle furnaces (400–600°C) to remove organics.

Impact: Incomplete removal causes porosity issues, while excessive heating damages active materials.

Electrode Sintering (e.g., allsolidstate batteries):

Process: Electrodes and solid electrolytes are cosintered in hightemperature furnaces to form monolithic structures.

Challenge: Mismatched thermal expansion coefficients may induce cracks.

2.4 Thermal Annealing for Performance Enhancement

Surface Modification of Cathodes:

Process: Postcoating annealing in muffle furnaces (300–500°C) stabilizes surface coatings (e.g., Al₂O₃ on NMC).

Benefit: Suppresses side reactions with electrolytes, extending cycle life.

Defect Healing in Silicon Anodes:

Process: Hightemp rapid annealing (700°C, 10–30 seconds) heaps cracks formed during lithiation/delithiation.

3. Technological Impact on Battery Performance

3.1 Material Microstructure Control

Grain Size & Porosity:

Sintering temperature and dwell time in hightemperature furnaces dictate grain growth.

Smaller grains (achieved via lower temps) enhance mechanical strength but may increase grain boundary resistance.

Density:

Solidstate electrolyte densification (>95% theoretical density) is critical to prevent lithium dendrite penetration.

3.2 Electrochemical Stability

Crystal Phase Purity:

Muffle furnaces with precise O₂ control prevent formation of electrochemically inactive phases (e.g., spinel in layered oxides).

Interfacial Compatibility:

Cosintering electrodes and electrolytes at optimized temps improves interfacial adhesion, reducing impedance.

3.3 Scalability and Energy Efficiency

Batch vs. Continuous Furnaces:

Batch muffle furnaces suit R&D and smallscale production.

Roller hearth hightemperature furnaces enable continuous processing for gigafactories.

Energy Consumption:

Hightemp furnaces account for ~15% of battery manufacturing energy use. Innovations like regenerative burners and microwaveassisted heating cut energy by 30–50%.

4. Challenges and Mitigation Strategies

4.1 Atmosphere Control

Lithium Loss in Cathode Synthesis:

Solution: Use sealed crucibles with Li₂O compensation pellets in muffle furnaces.

Oxidation of Anode Materials:

Solution: Operate under argon/vacuum in graphitelined furnaces.

4.2 Thermal Gradient Management

Warping of Large Components:

Solution: Gradient heating profiles and SiC susceptors for uniform heat distribution.

4.3 Cost and Maintenance

Heating Element Degradation:

MoSi₂ elements degrade above 1,700°C; replaced by costly tungsten alternatives.

Refractory Lifespan:

Ceramic fiber linings require frequent replacement in corrosive atmospheres.

5. Innovations in Furnace Technology

5.1 Advanced Heating Methods

MicrowaveAssisted Sintering:

Direct volumetric heating reduces processing time and energy (e.g., LiFePO₄ synthesis at 50% lower energy).

Spark Plasma Sintering (SPS):

Enables rapid (<10 min) densification of solid electrolytes at lower temps, minimizing Li evaporation.

5.2 Smart Furnaces

AIDriven Process Optimization:

Machine learning models predict optimal temp profiles based on realtime sensor data (e.g., pyrometers, gas analyzers).

IoTEnabled Monitoring:

Remote diagnostics and predictive maintenance reduce downtime.

5.3 Sustainable Designs

Waste Heat Recovery:

Exhaust gases from hightemp furnaces preheat incoming air, improving efficiency by 20%.

HydrogenPowered Furnaces:

Pilot projects replace natural gas with green H₂, cutting CO₂ emissions in anode graphitization.

6. Case Studies

6.1 NMC811 Cathode Synthesis

Process:

Precursor calcination in a muffle furnace at900°C for 12 hours under O₂ flow.

Outcome:

High phase purity (99.5%) enables 220 mAh/g capacity with 90% retention after 1,000 cycles.

6.2 SiliconOxide Anode Stabilization

Process:

Annealing in a hightemp furnace at1,000°C for 2 hours to form a protective SiO₂ layer.

Benefit:

Reduces volume expansion from 300% to 120%, doubling cycle life.

7. Future Directions

UltraHighTemperature Processing (>2,500°C):

Enables nextgen anodes (e.g., carbon nanotubes, graphene composites).

Atmospheric Plasma Furnaces:

Plasmaenhanced sintering cuts ceramic electrolyte processing time by 80%.

Decentralized Modular Furnaces:

Compact, ondemand units for recycling black mass at battery gigafactories.

Muffle furnaces and hightemperature furnaces are the unsung workhorses of battery manufacturing, bridging the gap between material science breakthroughs and industrialscale production. Their ability to precisely control thermal profiles and atmospheres directly dictates the performance, safety, and cost of lithiumion and nextgeneration batteries. As the industry pivots toward solidstate systems and sustainable manufacturing, innovations in furnace technology—from AIoptimized heating to zeroemission designs—will remain central to powering the energy transition.
