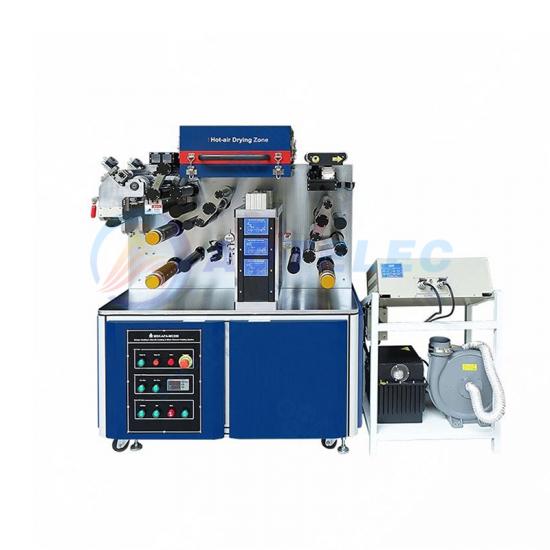

1、what is lithium battery coating machine

Lithium battery coater is a special equipment for coating the paste made of the mixture of active substances, binders, solvents, etc. uniformly on the surface of metal foils (such as copper foil, aluminum foil). The coating process is one of the key links of lithium battery production, which directly affects the performance and quality of the battery. By precisely controlling coating thickness, uniformity and coating speed, the stability, capacity and cycle life of the battery during charging and discharging can be ensured.

(1) Working principle

The working principle of the lithium battery coating machine is based on liquid transfer and coating technology. First, the thoroughly mixed stock is fed through the feeding system to the coating head. The coating head usually adopts different coating methods such as scraper, roll coating or spray coating. In the case of scraper coating, the paste is evenly coated on the rotating metal foil, and then the excess paste is scraped off by the scraper, so that the paste forms a uniform film on the surface of the metal foil. During the coating process, the metal foil passes through the coating area at a constant speed, while precise temperature and humidity control ensure that the paste dries quickly and adheres firmly to the metal foil.

(2) Importance

Affecting battery performance: the uniformity and thickness accuracy of the coating are directly related to the internal resistance, capacity consistency and charge and discharge efficiency of the battery. Uneven coating will cause the local current density of the battery to be too large, which will affect the cycle life and safety of the battery.

Determine production efficiency: Efficient coater can achieve high-speed coating, improve the output per unit time, reduce production costs. At the same time, stable equipment operation can reduce downtime and further improve production efficiency.

Guarantee product quality: Precise coating control ensures consistent performance of each battery, reduces defective rates, and improves overall product quality and reliability.

2、the type of lithium battery coating machine

According to different coating methods and process requirements, lithium battery coater is mainly divided into three categories: scraper coater, roll coater and spray coater.

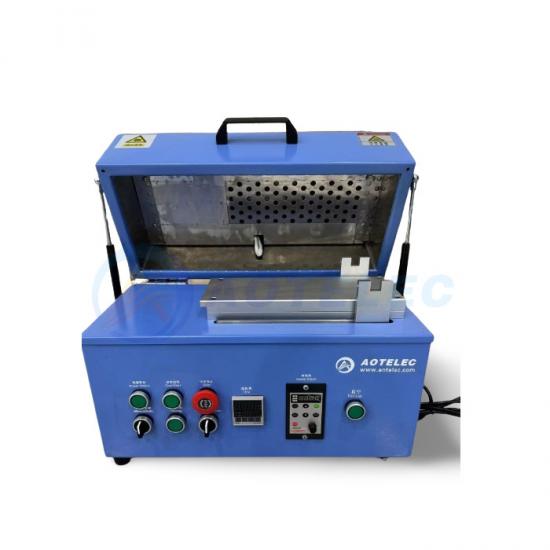

(1) Scraper coater

Working mode: Scraper coater squeezes the paste evenly on the surface of the metal foil through the scraper. The gap between the scraper and the metal foil determines the thickness of the coating, which can be precisely controlled by adjusting the Angle and pressure of the scraper.

Advantages: High coating accuracy, thin coating thickness can be achieved, suitable for the production of lithium batteries with high coating accuracy requirements. The equipment structure is relatively simple and the maintenance cost is low.

Limitations: The coating speed is relatively slow, and uneven coating may occur during high-speed coating. The scraper is easy to wear and needs to be replaced regularly, which increases the production cost.

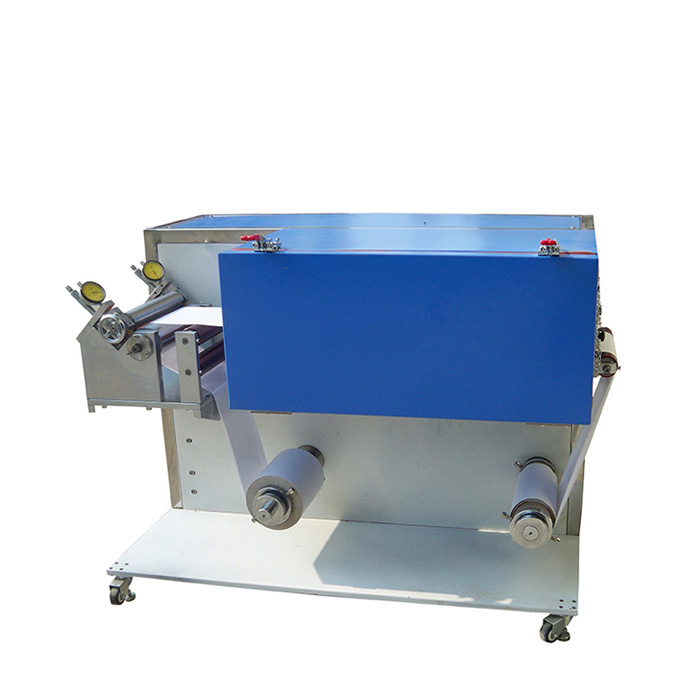

(2) Roller coater

Working mode: Roll coater uses one or more sets of rotating rollers to transfer and coat the paste on the metal foil. Coating thickness and uniformity can be controlled by adjusting the gap and speed ratio between rollers.

Advantages: Fast coating speed, suitable for mass production. Can achieve continuous coating, high production efficiency. Strong adaptability to the slurry, can handle different viscosity slurry.

Limitations: The equipment structure is more complex, high cost. The coating accuracy is slightly lower than that of the scraper coater, and the control ability for extremely thin coating is limited.

(3) Spray coating machine

Working mode: Spraying coater atomizes the paste through the nozzle and evenly sprays it on the surface of the metal foil. Precise coating control can be achieved by controlling the spray pressure, flow rate and spray distance of the nozzle.

Advantages: High precision coating can be achieved, especially for the coating of complex shapes and patterns. Fast coating speed, suitable for mass production. Less damage to metal foil.

Limitations: Equipment investment is large, need to be equipped with a special waste gas treatment system. The utilization rate of slurry is relatively low, which may cause certain waste.

3、how to choose the right lithium battery coating machine

When choosing a lithium battery coating machine, a number of factors need to be considered comprehensively to ensure that the equipment can meet the production needs and has a good cost/performance ratio.

(1) Production demand assessment

Production requirements: According to the production planning of the enterprise, determine the required coater capacity. If it is large-scale production, the equipment with fast coating speed and high production efficiency should be selected; For small batch production or research and development needs, you can choose more flexible equipment.

Product specifications: Considering the type and specifications of lithium batteries produced, different batteries have different requirements for coating thickness, accuracy and uniformity. For example, power batteries typically require higher coating accuracy and stability, while small consumer batteries may be more concerned about coating speed.

(2) Equipment performance indicators

Coating accuracy: Coating accuracy is one of the key indicators to measure the performance of the coating machine. The high precision coating machine can ensure the consistency of battery performance and reduce the defective rate. In the selection, we should pay attention to the coating thickness tolerance range of the equipment, in general, the smaller the tolerance, the higher the coating accuracy.

Coating speed: Coating speed directly affects production efficiency. Depending on the production needs, select the equipment that can meet or exceed the expected coating speed. However, it should be noted that too fast a coating speed may affect the coating quality, so find a balance between speed and quality.

Equipment stability: Stable equipment operation is an important guarantee to ensure production continuity and product quality. Choosing a coating machine with good stability can reduce equipment failures and downtime and improve production efficiency. The stability of the equipment can be evaluated by examining the reputation of the equipment manufacturer, user evaluation and the technical parameters of the equipment.

(3) Strength of equipment manufacturers

Technology research and development ability: Selecting equipment manufacturers with strong technology research and development ability can ensure the advancement and innovation of equipment. Enterprises with strong research and development ability are usually able to constantly introduce new technologies and products to meet the changes in the market and the needs of customers.

Manufacturing level: Excellent manufacturing level can ensure the quality and performance of equipment. Inspect the production process, quality control system and advanced production equipment of the equipment manufacturer to ensure that the equipment purchased meets high quality standards.

After-sales service: Perfect after-sales service can provide users with timely technical support and equipment maintenance. When selecting an equipment manufacturer, it is necessary to understand the coverage, response time and quality of service of its after-sales service network to ensure that it can be solved in time when the equipment fails.

4、the key technology and development trend of lithium battery coating machine

With the continuous development of lithium battery technology, the performance and technology of lithium battery coater are also put forward higher requirements. The following are some of the key technologies of lithium battery coater and future development trends.

(1) High-precision coating technology

In order to improve the energy density and performance consistency of batteries, high-precision coating technology has become the focus of development. By using advanced sensors and control systems, real-time monitoring and precise control of coating thickness, uniformity and coating speed are realized. For example, some high-end coaters use laser thickness measurement technology, which can measure the coating thickness in real time and automatically adjust the coating parameters according to the feedback signal to ensure the coating accuracy of micron level.

(2) high-speed coating technology

With the continuous growth of lithium battery market demand, improving production efficiency has become an important means for enterprises to reduce costs. High speed coating technology can greatly improve the coating speed while ensuring the coating quality. At present, some advanced coating machines have been able to achieve a coating speed of hundreds of meters per minute, by optimizing the equipment structure, improving the coating process and using high-performance drive systems to achieve high-speed coating.

(3) Intelligent control technology

The application of intelligent control technology makes the lithium battery coating machine more intelligent and automatic. Through the introduction of artificial intelligence, big data analysis and other technologies, the equipment can achieve automatic diagnosis, fault warning and optimal control of the production process. For example, the use of big data analysis can be real-time monitoring and analysis of equipment operation data, predict equipment failures, advance maintenance, and reduce downtime. At the same time, the intelligent control system can also automatically adjust equipment parameters according to production needs, improve production efficiency and product quality.

5、lithium battery coating machine in the industry application cases

(1) Electric vehicle battery production

In the field of electric vehicles, the performance of lithium batteries directly affects the vehicle's driving range and safety. A well-known electric vehicle battery manufacturer uses an advanced roller coating machine to achieve high-speed, high-precision coating production. By precisely controlling coating thickness and uniformity, the energy density and cycle life of the battery are improved, making the driving range of electric vehicles significantly improved. At the same time, the efficient coating machine also meets the needs of large-scale production and reduces production costs for enterprises.

(2) Portable electronic equipment battery manufacturing

For the battery manufacturing of portable electronic devices, the coating speed and flexibility of the coater are required. A battery manufacturer uses a scraper coater, combined with an intelligent control system, which can quickly switch different coating parameters to meet the production needs of various specifications of batteries. The high-precision coating ensures the consistency of the battery's performance and improves product quality, allowing the company to occupy a place in the portable electronic device battery market.
