The anode electrode of lithium ion battery is made of anode electrode active material carbon material or non-carbon material, binder and additive to make paste glue, which is evenly spread on both sides of copper foil, dried and rolled.

The cathode material is the main body of lithium ion battery to store lithium, so that lithium ions are inserted and extracted during the charging and discharging process.

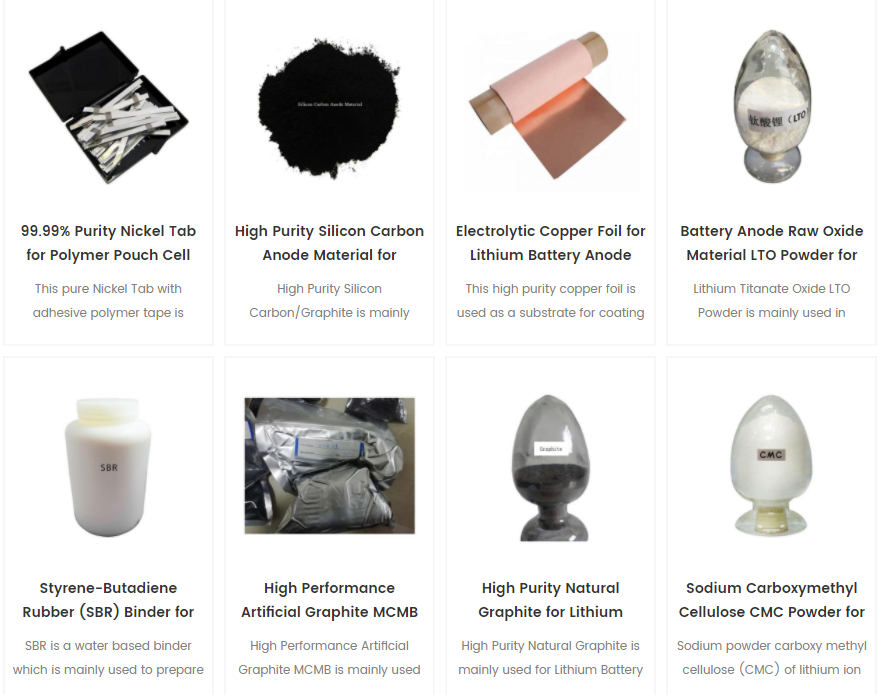

The current lithium-ion battery anode materials have developed from a single artificial graphite to natural graphite, mesocarbon microspheres, artificial graphite, soft carbon/hard carbon, amorphous carbon, lithium titanate, silicon carbon alloy and other negative electrodes material coexistence.

Negative material: graphite is mostly used. New research finds that titanates may be a better material. Negative reaction: lithium ions are inserted during charging, and lithium ions are de-inserted during discharge. When charging: xLi++ xe-+ 6C → LixC6 When discharging: LixC6 → xLi++ xe-+ 6C.

Lithium-ion battery anode materials are roughly divided into six types: carbon anode materials, alloy anode materials, tin-based anode materials, lithium-containing transition metal nitride anode materials, nanoscale materials, and nanoscale anode materials.

The first is carbon anode material: the battery anode materials actually used in lithium-ion batteries are basically carbon materials, such as artificial graphite, natural graphite, mesocarbon microspheres, petroleum coke, carbon fiber, pyrolysis resin carbon, etc.

The second is tin-based negative electrode material: tin-based negative electrode material can be divided into two kinds of tin oxide and tin-based composite oxide. Oxides refer to oxides of metal tin in various valence states.

The third is the lithium-containing transition metal nitride anode material.

The fourth is alloy-based negative electrode materials: including tin-based alloys, silicon-based alloys, germanium-based alloys, aluminum-based alloys, antimony-based alloys, magnesium-based alloys and other alloys.

The fifth is nanoscale anode materials: carbon nanotube and nanoalloy materials.
