In battery laboratories, where innovations in energy storage materials and designs are tested and refined, the choice of support structures and current collectors is critical to unlocking performance breakthroughs. Metal foams—porous, lightweight materials with high specific surface areas and excellent conductivity—have emerged as indispensable tools in this setting. Unlike dense metal sheets, their interconnected pore networks (typically 50–98% porosity) enable better active material loading, faster ion diffusion, and improved thermal management, making them ideal for studying electrode behavior, optimizing battery architectures, and developing next-generation energy storage systems. This article explores four key metal foams—nickel, copper, aluminum, and titanium—and their unique roles in advancing battery research.

1. Nickel Foam: The Workhorse for Cathode Research

Nickel foam is the most widely used metal foam in battery laboratories, thanks to its high electrical conductivity (~1.4 × 10⁷ S/m), corrosion resistance in oxidizing environments, and compatibility with common cathode chemistries. Its 3D porous structure (pore sizes ranging from 100–500 μm) provides a robust scaffold for loading cathode active materials, addressing a major challenge in lab-scale electrode fabrication: ensuring uniform material distribution and stable electrical contact.

In lithium-ion battery (LIB) research, nickel foam is frequently used as a current collector for high-capacity cathodes like lithium nickel manganese cobalt oxide (NMC) and lithium nickel cobalt aluminum oxide (NCA). For example, lab teams testing NMC 811 (a high-nickel cathode prone to particle cracking) often coat the material onto nickel foam instead of traditional aluminum foil. The foam’s pores trap NMC particles, reducing mechanical stress during charge-discharge cycles and minimizing capacity fade. A 2024 study from Stanford’s Battery Lab demonstrated that NMC 811 electrodes on nickel foam retained 89% of their initial capacity after 500 cycles, compared to 72% on aluminum foil—data attributed to the foam’s ability to buffer volume changes.

Nickel foam also plays a pivotal role in lithium-sulfur (Li-S) battery research. Li-S cathodes suffer from "polysulfide shuttling," where soluble sulfur species migrate to the anode and reduce efficiency. Researchers use nickel foam as a host for sulfur, leveraging its large surface area to anchor sulfur particles and its nickel active sites to catalyze polysulfide conversion. Lab experiments show that sulfur-loaded nickel foam cathodes can achieve specific capacities of 1,200 mAh/g—nearly 80% of sulfur’s theoretical capacity—far exceeding the performance of sulfur-coated aluminum foil.

In sodium-ion battery (SIB) research, nickel foam supports cathodes like sodium nickel manganese oxide (NaNi₁/3Mn₁/3Co₁/3O₂), with its porosity accelerating sodium-ion diffusion in the larger Na⁺ ion (compared to Li⁺). Battery labs often tailor nickel foam pore sizes (via acid etching or thermal treatment) to study how porosity affects ion transport—critical data for scaling SIB technology.

2. Copper Foam: Enabling Anode Innovation and Dendrite Suppression

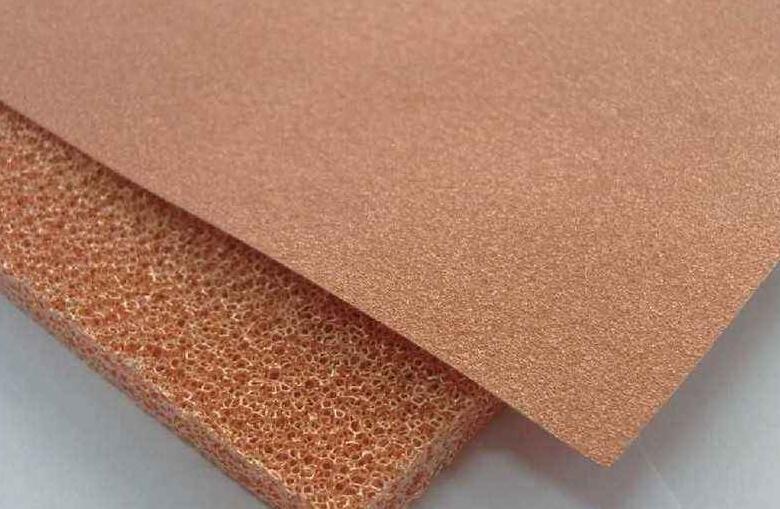

Copper foam is the go-to material for anode research in battery laboratories, particularly for systems involving lithium metal or high-capacity anode materials. Its high electrical conductivity (~5.96 × 10⁷ S/m), ductility, and compatibility with reducing environments (typical of anodes) make it superior to solid copper foil for lab-scale testing.

A primary focus of copper foam research is lithium metal batteries (LMBs), which promise 3x higher energy density than LIBs but face challenges with lithium dendrite growth—needle-like structures that pierce separators and cause short circuits. Battery labs use copper foam’s porous structure to "host" lithium metal, distributing Li deposition evenly across its pores instead of allowing dendrites to form on flat surfaces. For instance, MIT researchers recently tested copper foam with a 300 μm pore size as a lithium anode scaffold; their results, published in Joule, showed dendrite-free cycling for 800 hours at 1 mA/cm²— a breakthrough for LMB development. Labs also modify copper foam surfaces (e.g., via electrodepositing zinc or carbon nanotubes) to further enhance Li affinity, using the material as a platform to study dendrite suppression mechanisms.

Copper foam is also vital for testing silicon-based anodes, which have a theoretical capacity 10x higher than graphite but suffer from 300% volume expansion during cycling. In labs, silicon nanoparticles are embedded into copper foam’s pores, where the foam acts as a flexible framework to absorb expansion. A 2025 study from the University of Michigan found that silicon-copper foam anodes retained 75% capacity after 1,000 cycles, compared to 40% for silicon-coated copper foil. Researchers use this setup to optimize silicon loading (typically 5–20 wt%) and foam pore size, gathering data to inform commercial anode design.

In sodium-ion and potassium-ion battery research, copper foam serves as an anode current collector for hard carbon or alloy-based materials (e.g., tin, antimony). Its porosity improves electrolyte wettability, a key factor for the larger Na⁺ and K⁺ ions, and labs often compare copper foam to other collectors (e.g., nickel) to quantify performance gains.

3. Aluminum Foam: Lightweight Solutions for Low-Cost Battery Research

Aluminum foam is valued in battery laboratories for its low density (1/3 that of copper), low cost, and compatibility with aqueous or low-toxicity electrolytes—making it ideal for research into sustainable, low-cost battery systems. While its electrical conductivity (~3.77 × 10⁷ S/m) is lower than copper or nickel, its porous structure compensates by enhancing ion transport in specific applications.

A major area of aluminum foam research is aqueous batteries, which use water-based electrolytes (safer and cheaper than organic electrolytes) but face challenges with corrosion. Aluminum foam’s natural oxide layer (Al₂O₃) resists degradation in neutral or slightly alkaline electrolytes, making it a stable current collector for aqueous LIBs or SIBs. For example, lab teams at Tsinghua University use aluminum foam as a cathode collector for aqueous LFP (lithium iron phosphate) batteries, achieving a specific capacity of 160 mAh/g and 90% capacity retention after 200 cycles—performance comparable to organic electrolyte systems but at 50% lower cost.

Aluminum foam also plays a role in hybrid battery-supercapacitor (battery-supercap) research. Its high surface area and lightweight design make it suitable for supercapacitor electrodes (loaded with activated carbon) that are paired with battery electrodes to boost power density. Labs use aluminum foam to test the integration of battery and supercap components, measuring how the foam’s porosity balances energy storage (from the battery) and power delivery (from the supercap).

In lab-scale prototype development, aluminum foam is often used to reduce the weight of battery packs. For example, researchers at the University of California, Berkeley, built a prototype EV battery pack using aluminum foam as a structural collector, cutting pack weight by 15% without sacrificing energy density—critical data for automotive battery design.

4. Titanium Foam: Specialized Applications in High-Stability Research

Titanium foam is a niche but critical material in battery laboratories, prized for its exceptional corrosion resistance (even in acidic or high-voltage electrolytes) and high thermal stability (melting point ~1,668°C). While it is more expensive than other foams, its unique properties make it indispensable for research into extreme-condition batteries.

One key application is high-voltage lithium-ion batteries (4.5V+), which use aggressive electrolytes that corrode copper or aluminum collectors. Titanium foam’s resistance to electrolyte oxidation allows labs to test high-voltage cathodes like LiCoO₂ (LCO) at 4.5V, where traditional collectors fail. A 2024 study from the Korean Advanced Institute of Science and Technology (KAIST) used titanium foam as a cathode collector for 4.6V LCO, achieving a specific capacity of 220 mAh/g and 85% retention after 300 cycles—data that advances the development of high-energy-density LIBs for drones or satellites.

Titanium foam is also used in solid-state battery (SSB) research, where high processing temperatures (800–1,200°C for oxide electrolytes) require heat-stable collectors. Labs use titanium foam to support solid electrolytes like LLZO (Li₇La₃Zr₂O₁₂), as it does not react with the electrolyte during sintering. This allows researchers to study the interface between the collector and solid electrolyte, a major bottleneck for SSB performance.

In lab-scale recycling research, titanium foam is used as a substrate for electrodepositing recycled lithium or cobalt from spent batteries. Its corrosion resistance ensures it does not dissolve in the acidic leaching solutions used in recycling, making it a reliable platform for testing metal recovery efficiency.

Why Metal Foams Are Indispensable in Battery Labs

Beyond their material-specific advantages, metal foams offer three universal benefits to battery researchers:

Parameter Tunability: Labs can modify foam porosity (via chemical etching or laser drilling), thickness (100–500 μm), and surface chemistry (coating with carbon, oxides, or polymers) to isolate variables and study how each factor impacts battery performance. For example, testing nickel foam with 60% vs. 80% porosity reveals how pore size affects NMC cathode loading and ion diffusion.

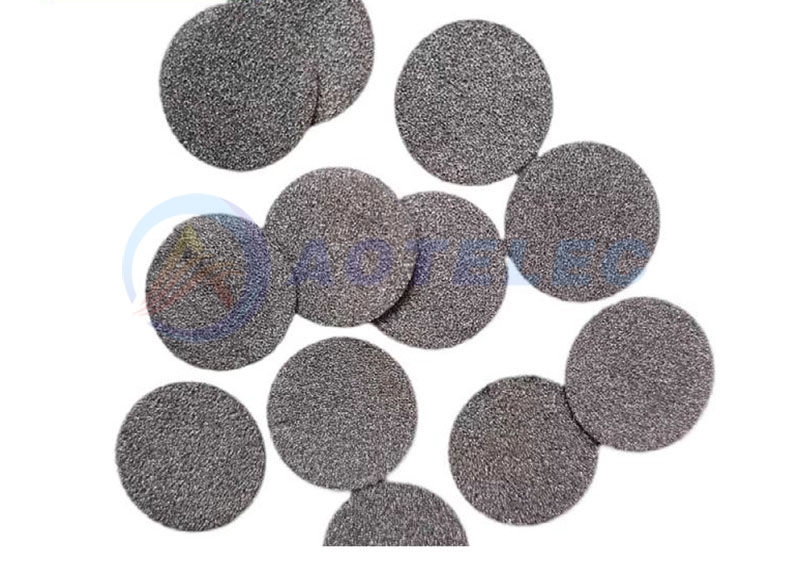

Easy Integration: Metal foams are flexible and can be cut into custom shapes (e.g., discs for coin cells, sheets for pouch cells), making them compatible with standard lab testing equipment like electrochemical workstations or battery cyclers.

Mechanistic Insight: Their porous structure allows researchers to visualize processes like dendrite growth (via microscopy) or electrolyte penetration (via X-ray tomography), providing critical insights into battery failure mechanisms that are hidden in dense metal collectors.

Metal foams—nickel, copper, aluminum, and titanium—are more than just support structures in battery laboratories; they are enablers of innovation. By addressing key challenges like active material loading, dendrite suppression, and corrosion resistance, they allow researchers to push the boundaries of battery performance, safety, and sustainability. Whether testing high-nickel cathodes, lithium metal anodes, aqueous electrolytes, or solid-state systems, metal foams provide a versatile platform to gather data, validate hypotheses, and develop technologies that will power the next generation of energy storage. As battery research continues to evolve, the role of metal foams will only grow—cementing their status as essential tools in the quest for better, cheaper, and more reliable batteries.
