Get six keywords for BYD blade batteries in one minute

Jun 6,2020.

Get 6 keywords for blade batteries in one minute

In early June 2020, BYD's Verdi Battery disclosed the internal situation of its Bishan plant in Chongqing. AOTELEC put together 8 keywords related to plant layout, capacity planning, product performance and other fields, so that you can have a comprehensive understanding of the blade battery in 1 minute.

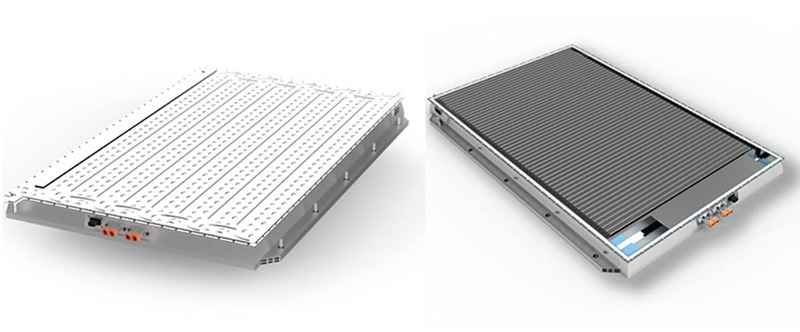

China BYD Blade Battery

Keyword 1 Capacity - 10 GWH
It is estimated that by the end of 2020, the capacity of the Chongqing Bishan plant will reach 10GWh.

Keyword 2 Upper limit of system energy density-170Wh/kg
The current system energy density of the blade battery is 140Wh/kg. Later, by further improving the battery material and design at the cell level, the energy density will reach 170Wh/kg.

Keyword 3 Maximum length of blade battery-2000mm
The length of the blade battery currently put into production is 960mm, and according to the patent applied for, its length can be between 600 and 2,000mm.

Keyword 4 Low temperature charging performance—110min
Under the environment of -10℃, the blade battery can be charged from 0 to 100% within 110 minutes. Under the same circumstances, the NCM-811 battery takes 98 minutes.

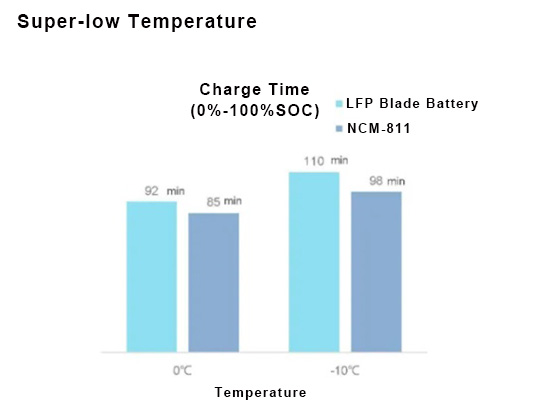

Blade Battery Low Temperature Charge Performance

Keyword 5 Low temperature discharge performance-90%

25 ℃ is the best operating temperature of the blade battery, at this time the discharge energy ratio is 100%. As the temperature decreases, this ratio will gradually decrease; but at -10 ℃ and -20 ℃, both can be stabilized at 90%.

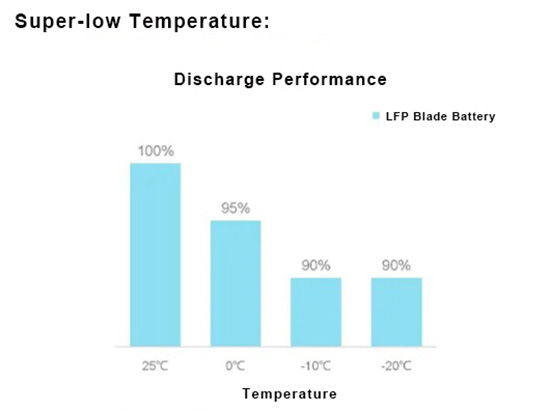

Blade Battery Low Temperature Discharge Performance

Keyword 6 Cycle life-5,000 times

After 5,000 charge-discharge cycles, the cycle life of the blade battery remained above 80%; the NCM811 battery as a control group had about 2,000 cycles.

Reported by Jack Shen
AOTELEC BATTERY
2020-6-6
