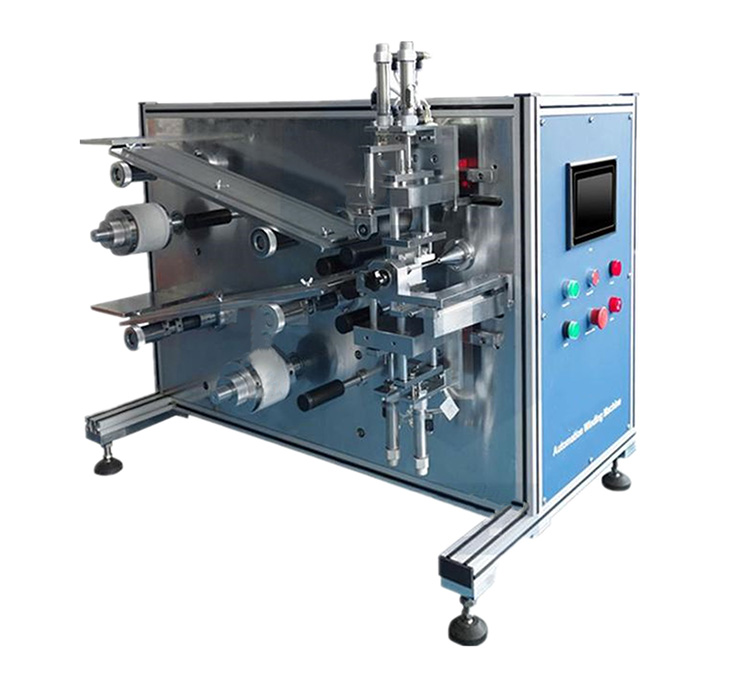

Pouch batteries have become a cornerstone of modern energy storage, powering devices from smartphones to electric vehicles (EVs) due to their high energy density, flexible form factor, and lightweight design. At the heart of pouch battery production lies a critical piece of equipment: the winding machine. This specialized tool transforms flat electrode sheets and separators into the compact, cylindrical "jelly roll" structure that forms the core of every pouch battery.

1. Core Roles of Winding Machines in Pouch Battery Production

Winding machines perform three indispensable functions that directly impact the quality, safety, and performance of pouch batteries:

1. Precision Layer Integration

Pouch battery jelly rolls consist of alternating layers of positive electrodes (typically coated with lithium-based materials like NMC or LFP), negative electrodes (often graphite or silicon), and porous separators (made of polyethylene or ceramic-coated polymers). The winding machine’s primary role is to align these layers with micron-level accuracy during the winding process. Even a 0.1mm misalignment can cause internal short circuits, reduce energy density, or lead to thermal runaway—catastrophic failures that compromise battery safety. For example, in EV-grade pouch batteries, winding machines ensure electrode alignment within ±0.05mm, a tolerance that minimizes contact between positive and negative electrodes while maximizing ion transport efficiency.

2. Tension Control for Structural Integrity

Separators and electrode sheets are delicate materials, often just 10–20μm thick. Excessive tension during winding can stretch or tear separators, creating gaps that allow electrode contact, while insufficient tension leads to loose layers that shift during battery cycling. Winding machines address this challenge with advanced tension control systems that adjust force dynamically as the jelly roll diameter increases. This precision ensures the jelly roll maintains a consistent density—critical for uniform ion distribution and long cycle life. Tests by battery manufacturer CATL show that optimized tension control extends pouch battery lifespan by 25% and reduces capacity fade by 18% over 1,000 charge-discharge cycles.

3. Production Scalability and Customization

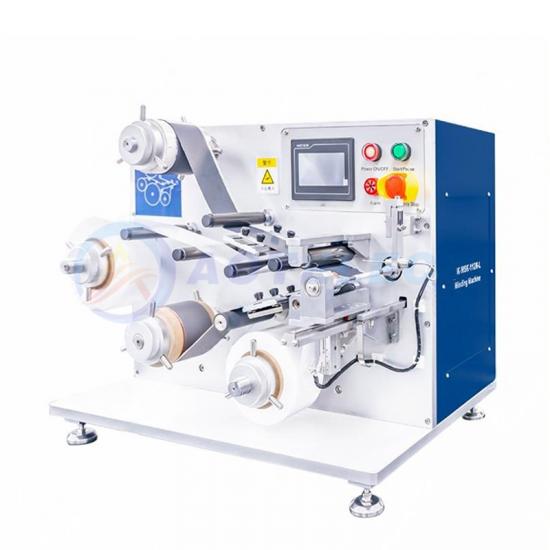

Modern winding machines balance scalability with flexibility, adapting to diverse pouch battery designs. In laboratory settings, benchtop winding machines handle small-batch production for material testing, allowing researchers to prototype jelly rolls with custom layer sequences (e.g., for solid-state or sodium-ion pouch batteries). Industrial-scale machines, by contrast, operate at speeds of up to 30 meters per minute, producing hundreds of jelly rolls per hour for mass-market applications. This versatility makes winding machines essential for both R&D and commercial production, enabling seamless transitions from lab testing to full-scale manufacturing.

2. Working Principle of Pouch Battery Winding Machines

The winding process involves four sequential stages, each governed by precise mechanical and electronic controls:

Stage 1: Material Preparation and Feeding

Before winding begins, electrode sheets and separators are loaded onto unwinding reels. Each reel is equipped with a tension sensor that feeds real-time data to the machine’s control system. Electrodes are pre-cut to specific lengths (ranging from 10cm for consumer electronics to 2 meters for EV batteries) and feature tab extensions—metal strips that connect the jelly roll to the battery’s external terminals. Separators, which are wider than electrodes to prevent edge contact, are fed from separate reels and positioned to fully encapsulate the electrode layers.

Stage 2: Initial Layer Alignment

The winding process starts with a mandrel—a cylindrical core that rotates to form the jelly roll. The leading edges of the positive electrode, separator, and negative electrode are precisely aligned at the mandrel’s surface using optical sensors and servo motors. This initial alignment is critical: the machine adjusts the position of each layer within ±0.02mm using feedback from cameras that capture high-resolution images of the material edges. Once aligned, the mandrel begins rotating at a controlled speed (500–2,000 RPM for industrial machines), pulling the layers into a tight spiral.

Stage 3: Dynamic Tension Adjustment

As the jelly roll grows, the machine’s tension control system modulates the force applied to each unwinding reel. Tension is typically maintained between 5–20N, with separators requiring lower tension (5–10N) to avoid damage and electrodes needing higher tension (10–20N) to ensure tight packing. Advanced systems use proportional-integral-derivative (PID) controllers to adjust tension 100 times per second, compensating for changes in reel diameter and material stiffness. Some high-end machines also integrate torque sensors on the mandrel to monitor jelly roll density, making real-time adjustments to prevent over-compression or looseness.

Stage 4: Cutting and Jelly Roll Extraction

Once the jelly roll reaches the target diameter (determined by the battery’s size and capacity), the winding machine stops rotation. A precision cutter trims the excess electrode and separator material, and a heating element seals the separator’s edge to prevent layer unraveling. The mandrel then retracts, and the finished jelly roll is ejected onto a conveyor belt for subsequent processing—including electrolyte injection, pouch sealing, and formation cycling. Throughout this stage, barcode scanners label each jelly roll with production data (e.g., winding time, tension settings, alignment accuracy) for quality control tracking.

3. Key Technical Parameters and Innovations

Winding machine performance is defined by several critical parameters, including winding speed, alignment accuracy, tension control range, and jelly roll diameter tolerance. Industrial machines typically operate at 10–30 m/min, with alignment accuracy of ±0.05mm and diameter tolerance of ±0.1mm. Laboratory machines prioritize precision over speed, offering alignment accuracy of ±0.02mm for small-batch prototyping.

Recent innovations have enhanced winding machine capabilities to meet the demands of next-gen pouch batteries:

Dual-Mandrel Design: Industrial machines now feature two mandrels that alternate between winding and extraction, doubling production efficiency without sacrificing precision.

Solid-State Battery Compatibility: Modified winding machines with lower tension settings and heated mandrels handle the thicker, stiffer separators used in solid-state pouch batteries, ensuring uniform layer integration without damaging solid electrolytes.

Their ability to align layers with micron precision, control tension dynamically, and adapt to diverse production needs directly influences battery performance, safety, and scalability. As the industry shifts toward higher energy density and safer battery chemistries—such as silicon anodes and solid electrolytes—winding machines will continue to evolve, incorporating advanced sensors, AI controls, and specialized designs. For researchers and manufacturers alike, mastering the science of winding machines is key to unlocking the full potential of pouch batteries in powering the future of electrification.
