In the race to develop higher-performance, safer, and more sustainable batteries—from lithium-ion (LIB) to solid-state (SSB) and sodium-ion (SIB) systems—battery laboratories rely on precision equipment to translate chemical formulas into functional electrode prototypes. Among these tools, the slot die coater stands out as a game-changer: its ability to deposit uniform, reproducible thin films of electrode slurry onto current collectors has made it indispensable for optimizing materials, testing new chemistries, and scaling lab-scale innovations toward industrial production. Unlike manual or less precise coating methods (e.g., doctor blades or wire-wound rods), slot die coaters offer unparalleled control over film thickness, uniformity, and efficiency—critical factors when even 1 μm of variation can alter a battery’s capacity, cycle life, or safety.

How Slot Die Coaters Work: Precision by Design

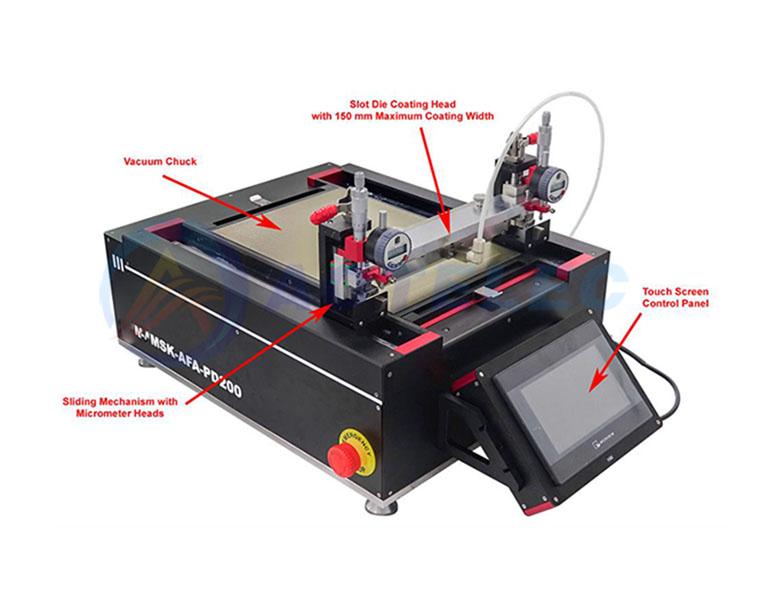

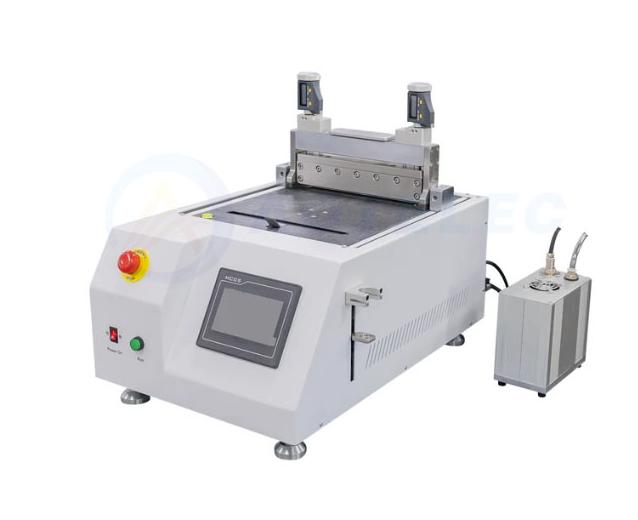

At its core, a lab-scale slot die coater is a compact, automated system designed to apply a continuous, uniform layer of electrode slurry (a mixture of active materials, conductive additives, binders, and solvents) onto a flexible current collector (e.g., copper foil for anodes, aluminum foil for cathodes). Its design revolves around three key components that enable lab-specific needs:

Slurry Delivery System: A precision metering pump (often a syringe or peristaltic pump) feeds slurry into a narrow, machined "slot die"—a rectangular opening (typically 0.1–0.5 mm wide) that evenly distributes the material across the width of the current collector. Lab models allow for fine adjustments to flow rate (0.1–10 mL/min), ensuring consistent slurry delivery even for small batch sizes (as little as 5 mL of slurry, critical for rare or expensive materials like sulfur or solid electrolytes).

Coating Gap & Speed Control: The die is positioned a fixed distance (the "coating gap," 5–50 μm) above a moving stage that holds the current collector. Lab coaters let researchers adjust both the gap and stage speed (1–100 mm/s) to control "wet film thickness"—a key parameter that dictates the final dried electrode thickness (usually 5–50 μm). For example, a 20 μm wet film of LFP cathode slurry dries to ~10 μm, a thickness optimized for balancing energy density and ion diffusion.

Environmental Controls: Many lab slot die coaters include temperature and humidity chambers (20–60°C, 30–60% RH). This is vital because slurry viscosity—critical for coating uniformity—varies with environmental conditions. For instance, when testing silicon-based anode slurries (prone to solvent evaporation), a controlled 25°C, 40% RH environment prevents the slurry from thickening mid-coating, avoiding streaks or gaps.

Unlike industrial slot die coaters (which handle meter-wide foils), lab models are scaled down to process small collector sizes (e.g., 5×5 cm to 20×20 cm), making them ideal for testing 1–10 electrode samples per batch—perfect for iterative research.

Key Applications of Slot Die Coaters in Battery Labs

Lab-scale slot die coaters are not just "mini industrial machines"; they are tailored to solve unique research challenges. Below are their most impactful uses in battery development:

1. Screening New Electrode Materials

Battery researchers spend years testing novel active materials—from high-nickel NMC 955 to sulfur-carbon composites for Li-S batteries. Slot die coaters enable fair, reproducible comparisons by ensuring each material is coated with the same thickness, density, and uniformity. For example, when evaluating two cathode materials (e.g., LFP vs. LFMP), a lab can use the coater to deposit 12 μm thick layers of both slurries on aluminum foil. Without this uniformity, differences in capacity (e.g., 160 mAh/g for LFP vs. 150 mAh/g for LFMP) could be misattributed to coating defects rather than material properties.

A 2024 study from the University of Michigan’s Battery Lab demonstrated this: researchers used a slot die coater to test 10 different silicon-graphite anode blends, all coated to 15 μm thickness. They found that a 30% silicon blend retained 85% capacity after 500 cycles—data that would have been unreliable with manual coating, which often produces ±3 μm thickness variations.

2. Optimizing Slurry Formulations

Electrode slurry recipes (e.g., 80% active material, 10% carbon black, 10% PVDF binder) are finely tuned to balance conductivity, flexibility, and processability. Slot die coaters help labs refine these recipes by revealing how binder content or solvent ratio affects coatability. For instance, a slurry with too little binder may crack during coating; too much may reduce conductivity. By testing 5–10 slurry variants with the same coater parameters, researchers can quickly identify the "sweet spot."

In sodium-ion battery research, where electrolyte compatibility is critical, slot die coaters are used to test slurry-solvent pairs. A team at Imperial College London recently used a coater to compare water-based vs. NMP-based binders for hard carbon anodes. They found that water-based slurries (more eco-friendly) coated evenly only when mixed with 2% carboxymethyl cellulose (CMC)—a detail they uncovered by noting streaks in coatings with <1% CMC.

3. Developing Multilayer and Composite Electrodes

Next-gen batteries (e.g., solid-state, lithium-metal) require complex electrode structures—such as multilayer cathodes (e.g., a thin LiPO₄ coating on NMC) or composite anodes (e.g., lithium metal on a porous scaffold). Slot die coaters excel at depositing these layers with micron-level alignment, a feat impossible with manual methods.

For solid-state batteries, lab slot die coaters are used to deposit thin solid electrolyte layers (e.g., LLZO or LGPS) onto cathode films. The coater’s precision ensures the electrolyte layer (5–10 μm) is uniform—critical for preventing ion transport bottlenecks. Researchers at MIT’s Media Lab used a slot die coater to create a 3-layer electrode (NMC | LLZO | Li-metal) that achieved 400 Wh/kg energy density, a 20% improvement over single-layer designs.

4. Validating Scale-Up Feasibility

Before a lab innovation moves to industrial production, researchers must confirm it can be scaled. Slot die coaters bridge this gap: their working principle is identical to industrial models, so data from lab tests (e.g., optimal coating speed, slurry viscosity) directly informs factory processes.

For example, when CATL was developing its 4680 battery, its lab used a slot die coater to test NMC 811 cathode slurries at 10 mm/s (mimicking industrial line speeds of 1–5 m/s). They found that increasing the slurry’s solids content from 75% to 80% reduced drying time by 30%—a change they later implemented in their gigafactories. Without the lab coater, this optimization would have required costly industrial trials.

Why Lab-Scale Slot Die Coaters Outperform Other Coating Methods

In battery labs, slot die coaters are preferred over traditional methods like doctor blades or spin coating for three key reasons:

Unmatched Uniformity: Manual doctor blades produce thickness variations of ±2–5 μm, while slot die coaters achieve ±0.5 μm—critical for studying subtle performance differences. For example, a 1 μm variation in a Li-metal anode can cause uneven lithium plating, leading to dendrite growth; slot die coaters eliminate this variable.

Material Efficiency: Lab materials (e.g., solid electrolytes, rare earth metals) are often expensive or scarce. Slot die coaters use 90% of the slurry (vs. 50% for spin coating, which flings excess slurry away), reducing waste and costs.

Reproducibility: In research, results must be repeatable across experiments and labs. Slot die coaters store coating parameters (speed, gap, flow rate) digitally, ensuring the same electrode can be recreated months later or in a different lab—something manual methods cannot guarantee.

As battery research advances, slot die coaters are evolving to meet new challenges:

In-Line Monitoring: New lab models integrate laser thickness sensors and optical cameras to detect defects (e.g., pinholes, streaks) in real time. This allows researchers to adjust parameters mid-coating, saving time and materials.

High-Temperature Coating: For solid-state batteries that require sintering (800–1200°C), slot die coaters with heated dies (up to 200°C) are being developed to deposit thermally stable slurries.

Multi-Material Coating: Next-gen coaters will handle multiple slurries simultaneously, enabling the deposition of 4+ layer electrodes in one pass—accelerating composite battery research.

By providing precise, reproducible coating of electrode materials, they allow researchers to isolate variables, optimize formulations, and validate scale-up—critical steps in turning lab discoveries into commercial batteries. As demand grows for batteries with higher energy density, longer life, and lower cost, the role of lab-scale slot die coaters will only expand. They remind us that even the most groundbreaking battery chemistries depend on the quiet precision of equipment that turns slurry into uniform films—one micrometer at a time.
