In the high-stakes race to develop longer-lasting, safer, and more efficient batteries—for electric vehicles (EVs), grid storage, and portable electronics—success often hinges on a tool so small it can fit in the palm of a hand: the battery electrolyte pipette. While headline-grabbing innovations like solid-state chemistries or silicon anodes dominate media coverage, these precision instruments quietly ensure that electrolytes—the conductive "blood" of batteries—are measured and dispensed with microscopic accuracy. As global battery R&D spending hits $50 billion annually (per the International Energy Agency), electrolyte pipettes have evolved from basic lab tools into specialized devices tailored to the unique challenges of modern battery development. This article explores how these unsung tools work, why they are critical to battery performance, and the innovations reshaping their role in energy storage breakthroughs.

What Is a Battery Electrolyte Pipette—And How Is It Different?

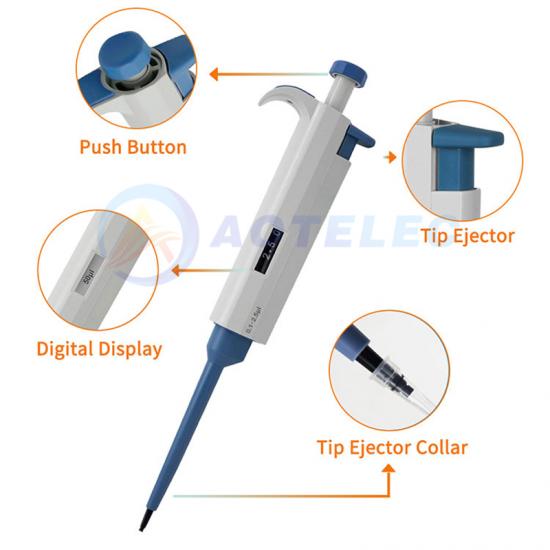

At first glance, a battery electrolyte pipette resembles the standard pipettes used in biology labs to transfer liquids. But appearances are deceptive. Battery electrolytes—whether liquid (e.g., lithium hexafluorophosphate in organic solvents), gel, or even early-stage solid-state formulations—pose unique challenges: they are often corrosive, volatile, or prone to reacting with air or moisture. Standard pipettes, made of plastic or glass, can degrade, contaminate the electrolyte, or leak hazardous fluids—risks that render them useless for battery work.

Battery-specific pipettes are engineered to solve these problems, with three key design features:

1. Corrosion-Resistant Materials: The liquid-contact parts (tips, barrels, and seals) are made from inert materials like polytetrafluoroethylene (PTFE, or Teflon), perfluoroalkoxy alkane (PFA), or borosilicate glass. These materials withstand aggressive electrolytes—including high-concentration lithium salts or acidic aqueous solutions—without leaching chemicals or breaking down.

2. Ultra-Precision Dispensing: Battery electrodes and cells are tiny (e.g., coin cells used in labs are just 20mm in diameter), requiring electrolyte volumes as small as 5 microliters (μL)—about 1/10th the volume of a drop of water. Specialized pipettes deliver volumes with an error margin of ±0.5% or less, ensuring consistency across tests.

3. Moisture/Air Barriers: Many electrolytes (especially lithium-ion ones) react with water vapor to form toxic gases like hydrofluoric acid. Advanced pipettes include airtight seals, nitrogen-purged chambers, or even glovebox-compatible designs to keep electrolytes dry and pure during transfer.

"The difference between a standard pipette and a battery electrolyte pipette is like using a kitchen spoon vs. a surgical scalpel," says Dr. Maria Gonzalez, a battery materials scientist at the University of Michigan’s Energy Institute. "A 1μL error in electrolyte volume can change a battery’s cycle life by 20% or more. We can’t afford that kind of variability in R&D."

Why Precision Electrolyte Dispensing Matters for Battery Performance

Electrolytes play a make-or-break role in batteries: they facilitate ion flow between the anode and cathode during charging/discharging, while also forming a protective solid-electrolyte interphase (SEI) layer on the anode. The volume, purity, and even distribution of electrolyte directly impact three critical battery metrics:

1. Energy Density

Too little electrolyte limits ion transport, reducing the battery’s ability to store and release energy. Too much electrolyte adds "dead weight"—unnecessary volume that lowers energy density (measured in Wh/kg or Wh/L). For EV batteries, where every gram counts, this is a critical tradeoff.

2. Cycle Stability

Uneven electrolyte distribution (e.g., more electrolyte in one part of the cell than another) causes localized degradation. The SEI layer may grow too thick in dry areas, increasing internal resistance, while excess electrolyte may leak or decompose over time.

A 2024 study in Journal of Power Sources compared two batches of sodium-ion coin cells: one dosed with a standard pipette (±2μL error) and another with a battery-specific pipette (±0.3μL error). After 500 cycles, the precise-dosing batch retained 82% of its capacity, vs. 67% for the inconsistent batch.

3. Safety

Overdosing electrolytes can lead to pressure buildup inside sealed cells, increasing the risk of rupture or thermal runaway (a leading cause of battery fires). Underdosing can cause the cell to dry out, triggering internal short circuits.

Tesla’s battery R&D team uses automated electrolyte pipettes in its coin-cell testing to ensure every prototype cell gets exactly 38.2μL of electrolyte—no more, no less. "That precision isn’t just for performance—it’s for safety," says a Tesla engineering spokesperson. "A single over-dosed cell in testing could lead to dangerous failures down the line."

The Role of Pipettes in Battery R&D and Manufacturing

Battery electrolyte pipettes are used across the entire battery development lifecycle—from early lab experiments to pilot-scale production—each time serving a unique purpose.

1. Lab-Scale R&D: Testing New Electrolyte Formulas

In academic and corporate labs, researchers spend months testing novel electrolyte blends (e.g., adding flame-retardant additives or switching to aqueous solvents) to improve battery performance. Pipettes are essential here to:

Control Variables: When testing a new additive, researchers use pipettes to dispense identical volumes of electrolyte into multiple cells—ensuring any performance differences are due to the additive, not volume variation.

Miniaturize Tests: Microbatteries (used in medical devices like pacemakers) require electrolyte volumes as small as 0.5μL. Specialized "nanopipettes" with ultra-thin tips (0.1mm diameter) make these tests possible.

Work in Controlled Environments: Most electrolyte R&D happens in gloveboxes (filled with inert gas like argon) to keep moisture out. Glovebox-compatible pipettes—with compact designs and metal bodies that don’t outgas—are standard equipment here.

At CATL’s global R&D center in Ningde, China, scientists use automated pipette stations to test 500+ electrolyte formulations per week. "Without precise pipettes, we’d spend twice as long validating new formulas," says Dr. Li Wei, a senior researcher at CATL. "They let us iterate faster and get better results."

2. Quality Control: Ensuring Consistency in Production

As new battery designs move to pilot production, pipettes are used to verify that electrolyte dosing is consistent across hundreds or thousands of cells. For example:

In EV battery module production, samples of cells are pulled from the line and dissected. Pipettes are used to extract and measure the remaining electrolyte, ensuring the production line’s automated dosing systems are working correctly.

For solid-state batteries (SSBs), which use thin layers of solid electrolyte (10–50μm thick), pipettes with pressure-controlled tips are used to deposit precise amounts of electrolyte precursor onto electrodes before curing. Even a 1μm variation in layer thickness can ruin an SSB cell.

3. Failure Analysis: Diagnosing Battery Problems

When a battery fails (e.g., loses capacity quickly or short-circuits), researchers use pipettes to extract and analyze the remaining electrolyte. This helps identify issues like:

Electrolyte Degradation: By measuring the concentration of lithium ions in the extracted electrolyte (using techniques like mass spectrometry), researchers can tell if the electrolyte broke down over time.

Leakage: If a cell has less electrolyte than expected, pipette measurements can confirm a leak—guiding fixes to the cell’s sealing design.

The Future of Battery Electrolyte Pipettes

As the battery industry grows—projected to reach $400 billion by 2030—electrolyte pipettes will evolve to meet new challenges. Experts predict three key trends:

AI Integration: Future pipettes will use machine learning to adjust dispensing parameters (e.g., speed, pressure) based on electrolyte viscosity or temperature—adapting to new formulations automatically.

Miniaturization for Microbatteries: As wearable devices and IoT sensors shrink, pipettes will need to handle volumes as small as 0.1μL—requiring even thinner tips and more sensitive sensors.

Sustainability: Manufacturers are developing pipettes made from recycled materials (e.g., reclaimed PFA) and designing them to be easily repairable—aligning with the industry’s push for greener manufacturing.

Battery electrolyte pipettes may not be as glamorous as EVs or grid storage plants, but they are the quiet enablers of the energy transition. Every breakthrough in battery life, safety, or energy density—from longer-lasting phone batteries to EVs that drive 500+ miles on a charge—relies on the precision of these tiny tools.

As Dr. Gonzalez puts it: "Batteries are only as good as the materials we put into them—and we can’t put those materials in correctly without good pipettes. They’re the foundation of every battery innovation we see today."

In a world racing to cut carbon emissions and embrace renewable energy, battery electrolyte pipettes prove that sometimes, the smallest tools make the biggest difference.
