In the production of cylindrical batteries, spot welding machines play a pivotal role, ensuring the quality and reliability of the welding processes that are crucial for battery performance.

1.Role of Spot Welding Machines in Cylindrical Battery Production

Cylindrical batteries, as an important type of lithium-ion batteries, have welding as a particularly critical step in their manufacturing process. Spot welding machines, as the core equipment for this step, are enhancing the quality of cylindrical batteries with their unique advantages.

Ensuring Robust Connections:

Spot welding machines are dedicated devices that utilize the principle of resistance welding. They achieve a firm connection between the positive and negative electrode tabs of the lithium battery and the battery connecting tabs by precisely controlling welding current, time, and pressure.

This ensures that the welding is strong and reliable, preventing issues such as tab detachment or fracture during battery use.

Protecting Battery Structure:

By precisely controlling welding parameters, spot welding machines can generate sufficient high temperatures in a short period, causing metallic materials to melt and connect rapidly while avoiding thermal damage to surrounding areas.

This protects the internal structure of the battery and extends its lifespan.

Improving Production Efficiency:

Spot welding machines are equipped with automated control and intelligent management functions, enabling continuous and stable welding operations, significantly enhancing production efficiency.

They can also automatically detect and repair abnormalities during the welding process, ensuring production continuity and stability.

Adapting to Various Battery Types:

Spot welding machines can accommodate different materials and specifications of lithium battery tabs, meeting the needs of various battery manufacturing requirements.

In the manufacturing process of cylindrical batteries, spot welding machines are primarily used for welding between battery tabs and connecting tabs.

Enhancing Battery Quality:

The application of battery spot welding machines in cylindrical battery manufacturing has a profound impact on battery quality.

It improves the welding firmness and reliability, reduces the risk of thermal damage during welding, and optimizes the production process, lowering production costs.

2.Operating Principle of Spot Welding Machines in Cylindrical Battery Production

The operating principle of spot welding machines, particularly in the context of cylindrical battery manufacturing, is primarily based on resistance welding. Here's a detailed explanation

Resistance Heating Principle:

When two metal parts are clamped together by electrodes, current is introduced to the metal contact surface, generating a resistance heating effect.

This process rapidly increases the temperature of the contact surface to the melting point of the metal, forming a molten zone.

At the same time, a certain pressure is applied to tightly connect the two metal parts in the molten state.

After a certain welding time, the current stops, and the welding area cools and solidifies, completing the welding process.

Electrode Pressure and Current Application:

During operation, two electrodes compress the workpiece, causing two layers of metal to form a certain contact resistance under the pressure of the two electrodes.

When the welding current flows from one electrode to the other, instantaneous thermal welding occurs at the two contact resistance points, completing the welding process.

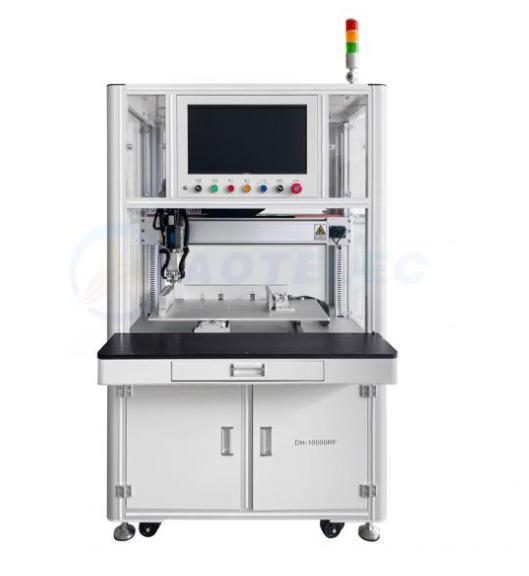

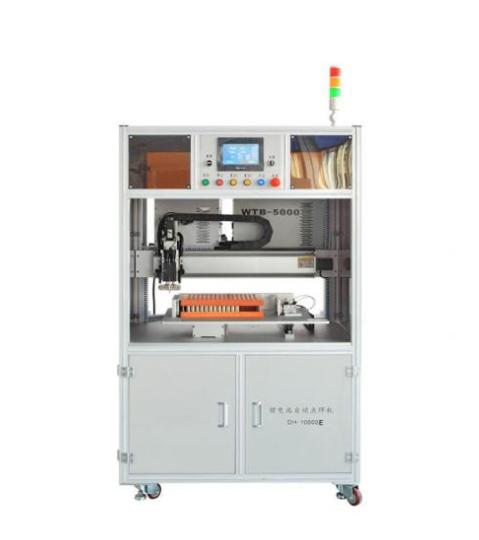

Automation and Control:

Cylindrical lithium battery spot welding machines are advanced manufacturing equipment integrating machinery, electrical systems, control systems, sensors, and computer technology.

They adopt advanced automation control systems, enabling high-speed and continuous spot welding operations, significantly improving production efficiency.

For example, some models of automatic spot welding machines can achieve production efficiencies of 3600~4500 pieces per hour.

Types of Current and Advantages:

Spot welding machines use either direct current (DC) or alternating current (AC).

DC spot welding machines are widely used due to their stable welding quality and small heat-affected zone.

AC spot welding machines are used in some situations due to their strong adaptability to the power grid and lower equipment costs.

The main advantages of spot welding include high efficiency and uniformity, economy, and efficient utilization of electrical energy for the welding process.

Applications and Advancements:

Spot welding is a rapid welding process widely used in various industries such as automotive, aerospace, metal furniture, electronics, and building construction.

In the automotive industry, spot welding is used for assembling car bodies. In electronics, it connects battery cells and circuit boards.

Advances in spot welding technology focus on improving efficiency, automation, and sustainability. This includes integrating artificial intelligence to optimize processes and developing environmentally friendly welding technologies such as laser and ultrasonic welding.

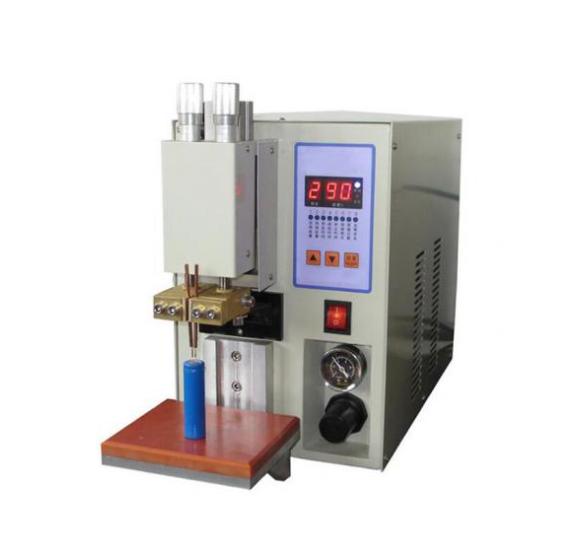

Detailed Mechanism of Spot Welding Machines:

Composition and Working Process:

A typical spot welding machine consists of a transformer that produces high current at low voltage.

The electrodes are connected to the ends of the secondary winding to direct the current to the workpiece.

An arrangement brings the electrodes into contact with the workpiece and applies the necessary mechanical pressure.

During the spot welding process, the materials to be welded are overlapped and pressed between two water-cooled electrodes, and a high electric current is passed through the assembly.

The metals in the pressure zone heat up to their melting temperature, and the joint formed is cooled under pressure.

Control of Welding Parameters:

The quality of the spot weld is mainly affected by factors such as the value of welding current, the duration of current flow, and the pressure between electrode tips.

Spot welding machines precisely control these parameters to ensure optimal welding performance.

For spot welding processes, the required welding current is typically around 5000 amperes, and the voltage between electrodes is usually less than 3 volts.

Double-Sided Spot Welding Machines:

Double-sided spot welding machines are an advanced form of lithium battery spot welding machines, capable of simultaneously welding both the positive and negative electrodes of the battery.

They use precision control systems and stable welding power supplies to ensure precise control of welding parameters.

These machines can automatically adjust welding parameters based on battery type and specification, enabling intelligent management.

Safety and Maintenance Considerations

While spot welding machines are crucial for cylindrical battery manufacturing, safety and maintenance are equally important:

Safety Precautions:

Before operation, always check if the equipment is in good condition, ensuring that power cables, electrodes, and other components are free from damage or looseness.

Strictly follow the operation manual to avoid equipment damage or personal injury due to misoperation.

Maintenance and Servicing:

Regularly maintain the equipment to ensure its normal operation.

This includes cleaning electrodes and welding surfaces, checking for damage to cables and connections, and lubricating moving parts.

Common issues such as weak welds and electrode sticking can be resolved through proper cleaning, parameter adjustment, and adherence to safety regulations.

3.Conclusion

In summary, spot welding machines play a vital role in cylindrical battery manufacturing. Their unique advantages, such as precise control of welding parameters, automation and intelligent management functions, and adaptability to various battery types and specifications, significantly enhance battery quality and production efficiency. As the new energy industry continues to develop and technology advances, spot welding machines will continue to play a crucial role, driving the development of the new energy industry and contributing to environmental sustainability.

The role and operating principle of spot welding machines in cylindrical battery production are intertwined, forming a critical link in the manufacturing process. By understanding and effectively utilizing these machines, manufacturers can ensure the production of high-quality cylindrical batteries that meet the growing demands of the market.
