Battery manufacturing is a complex and multi-faceted process that involves a series of intricate steps, each requiring specialized machinery to ensure precision, efficiency, and safety. From raw material processing to final assembly and testing, each stage in battery production relies heavily on advanced technology to meet the growing demand for high-performance, reliable, and sustainable energy storage solutions.

1. Material Preparation Machines

a. Material Mixing and Blending Equipment

The initial step in battery manufacturing involves preparing the electrode materials. Mixing and blending equipment are crucial for combining active materials, binders, and conductive additives to form homogeneous slurries. High-shear mixers and planetary mixers are commonly used, as they provide thorough mixing while ensuring a uniform particle size distribution. These machines operate under controlled temperatures to prevent material degradation, ensuring optimal battery performance.

b. Coating Machines

Once the slurry is prepared, it needs to be coated onto a metallic foil (typically copper for the anode and aluminum for the cathode). Slot-die coaters and roller coaters are widely employed for this purpose. Slot-die coaters offer precise control over coating thickness and uniformity, critical for battery performance. Roller coaters, on the other hand, are suitable for larger-scale production due to their higher throughput capacity.

2. Electrode Processing Machines

a. Drying and Calendering Equipment

After coating, the electrodes undergo a drying process to remove solvents. Tunnel ovens and hot-air convection ovens are commonly used, offering efficient heat transfer and precise temperature control. Following drying, calendering machines are employed to compress the electrodes, enhancing their density and electrical conductivity. This step is vital for improving battery energy density and cycling stability.

b. Slitting and Cutting Machines

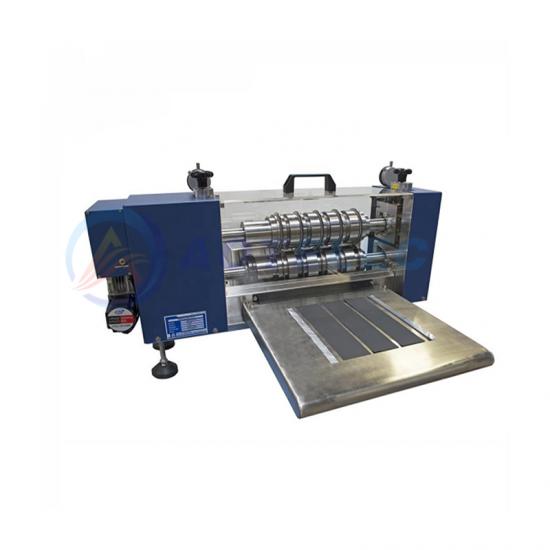

Electrode sheets need to be cut into strips of specific widths and lengths for assembly into battery cells. Slitting machines use sharp blades to precisely cut the sheets, while cutting machines further process them into the required dimensions. Automated systems ensure high accuracy and repeatability, minimizing waste and enhancing productivity.

3. Cell Assembly Machines

a. Welding Machines

In the cell assembly process, welding machines are used to create electrical connections between electrodes and tabs. Laser welding and ultrasonic welding are preferred methods due to their precision, low heat input, and minimal material distortion. These machines ensure robust and reliable electrical connections, critical for battery safety and performance.

b. Stacking and Laminating Machines

For prismatic and pouch-type batteries, stacking and laminating machines are essential. Stacking machines arrange electrodes, separators, and electrolyte layers in precise order, while laminating machines apply pressure to bond them together. These machines ensure tight control over layer alignment and gap tolerance, contributing to battery efficiency and durability.

4. Electrolyte Handling Machines

a. Injection and Impregnation Equipment

The electrolyte is a critical component in battery operation, facilitating the movement of ions between electrodes. Injection machines precisely dispense electrolyte into battery cells, ensuring complete impregnation of separators. Impregnation equipment uses vacuum or pressure techniques to enhance electrolyte penetration, promoting uniform ion conductivity.

b. Sealing Machines

After electrolyte addition, battery cells require sealing to prevent electrolyte leakage and contamination. Heat-sealing and laser-sealing machines are commonly used, offering reliable and hermetic seals. These machines ensure that battery cases are securely closed, maintaining the internal environment necessary for optimal battery operation.

5. Forming, Aging, and Testing Machines

a. Formation Stations

Formation involves charging and discharging the battery cells under controlled conditions to activate the electrode materials and form the solid electrolyte interface (SEI). Formation stations carefully monitor voltage, current, and temperature, ensuring that cells are properly conditioned for long-term use.

b. Aging Chambers

Aging chambers subject batteries to elevated temperatures for extended periods, simulating real-world usage conditions. This process helps identify potential defects and performance degradation issues early in the production cycle, enabling corrective measures to be taken.

c. Testing Equipment

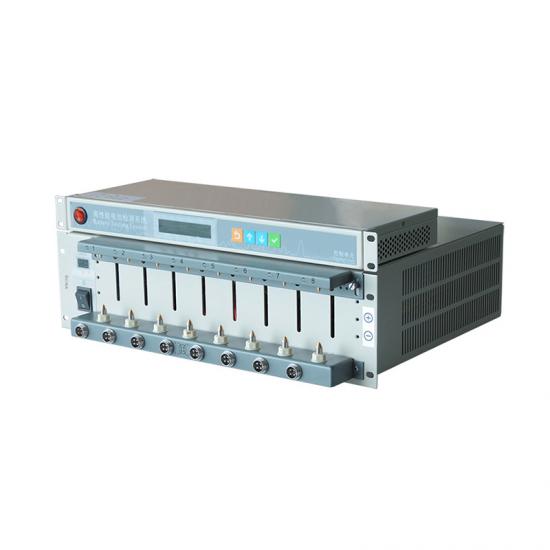

Battery performance testing is crucial for quality assurance. Testing equipment includes charge-discharge testers, cycle life testers, and impedance analyzers. These machines evaluate battery capacity, efficiency, cycle stability, and internal resistance, providing critical data for product development and quality control.

6. Automation and Robotics

Automation and robotics play a pivotal role in modern battery manufacturing. Automated conveyors, robotic arms, and AI-driven inspection systems streamline production processes, enhancing throughput, reducing human error, and improving safety. Collaborative robots (cobots) work alongside human operators, performing tasks such as material handling, assembly, and quality inspection with high precision and flexibility.

7. Environmental Control Systems

Battery manufacturing requires strict environmental control to maintain optimal production conditions. Cleanrooms, humidity-controlled environments, and particle monitoring systems ensure that contaminants are minimized, preserving the purity and integrity of battery materials. HEPA filters and ionizers maintain air quality, while temperature and humidity control systems stabilize process variables, enhancing product consistency.

8. Emerging Technologies

The battery manufacturing industry is continually evolving, driven by technological advancements. Additive manufacturing (3D printing) is being explored for creating complex electrode structures with enhanced performance. Solid-state battery technology necessitates new manufacturing processes and machines capable of handling solid electrolytes. Machine learning and AI are increasingly integrated into production systems, optimizing process parameters, predicting failures, and accelerating product development cycles.

Conclusion

Battery manufacturing is a sophisticated endeavor requiring a diverse range of specialized machines. From material preparation to cell assembly, testing, and quality control, each stage involves cutting-edge technology designed to maximize battery performance, safety, and sustainability. As the global transition to renewable energy accelerates, ongoing innovation in battery manufacturing machinery will be crucial for meeting the demand for high-capacity, long-lasting, and environmentally friendly energy storage solutions. By embracing advancements in automation, robotics, and AI, the battery manufacturing industry is poised to achieve unprecedented levels of efficiency, quality, and scalability, paving the way for a greener, more sustainable future.
