The manufacturing process of pouch cell lithium-ion batteries, involves numerous intricate steps, each critical to ensuring the performance, safety, and reliability of the final product. Among these steps, the utilization of a resting or Standing box (commonly known as a "Vacuum Standing Box" or "静置箱" in Chinese) plays a pivotal role. Given the complexity and significance of this process, it is essential to delve deeply into the function, importance, and operational nuances of the Vacuum Standing Box within the broader context of pouch cell battery production.

Overview of pouch cell Battery Manufacturing

pouch cell lithium-ion batteries are characterized by their flexible, lightweight casing, typically made of aluminum laminate foil. This design offers several advantages, including enhanced energy density, reduced weight, and greater flexibility in packaging and integration into various devices. However, these benefits come with increased manufacturing complexity, requiring precise control over multiple factors during production to ensure battery safety and performance.

The manufacturing process of pouch cell batteries generally includes electrode preparation (anode and cathode), assembly (stacking or winding of electrodes with separators), electrolyte filling, sealing, and formatting (charging and discharging cycles to activate the battery). Within this sequence, the soaking or resting phase in a Vacuum Standing Box is a crucial step that directly impacts battery quality and reliability.

Role of the Vacuum Standing Box in pouch cell Battery Manufacturing

1. Electrolyte Penetration and Wetting

The primary function of the Vacuum Standing Box is to facilitate the uniform penetration and wetting of the electrolyte into the pores of the electrode materials (anode and cathode). During the assembly phase, the electrodes are stacked or wound with separators in between, creating a layered structure. The electrolyte, which is a lithium salt solution in an organic solvent, must fully infiltrate this structure to enable ion transport during battery operation.

The Vacuum Standing Box provides a controlled environment where the assembled battery cells can rest under specific conditions (temperature, humidity, and pressure) to ensure optimal electrolyte penetration. This soaking process typically lasts several hours to days, depending on the battery design and manufacturing protocols. The goal is to achieve complete wetting of the electrode materials, minimizing dry spots that could lead to performance degradation or safety risks.

2. Enhancing Battery Performance

Uniform electrolyte wetting is critical for several performance metrics of the battery:

Capacity and Cycle Life: Incomplete wetting can result in reduced capacity and shorter cycle life, as some parts of the electrodes may not contribute to the electrochemical reactions.

Internal Resistance: Proper wetting helps reduce internal resistance, leading to better power output and efficiency.

Temperature Management: The electrolyte acts as a heat transfer medium within the battery. Uniform wetting improves thermal management, reducing the risk of thermal runaway.

3. Improving Safety

The soaking process also enhances battery safety by ensuring that the electrolyte is evenly distributed throughout the cell. Uneven distribution can create hotspots during battery operation, increasing the likelihood of thermal runaway and fire. By promoting uniform wetting, the Vacuum Standing Box helps mitigate these safety risks.

4. Controlling Variables

The Vacuum Standing Box allows manufacturers to control several variables that can affect battery performance and safety:

Temperature: Maintaining a consistent temperature during soaking promotes optimal electrolyte viscosity and diffusion rates.

Humidity: Controlling humidity helps prevent moisture contamination, which can degrade battery performance.

Pressure: Applying gentle pressure can aid in electrolyte infiltration, particularly in stacked electrode designs.

5. Post-Soaking Inspection

After the soaking process, the cells are typically inspected for any signs of leakage, swelling, or other defects. This quality control step ensures that only properly wetted and intact cells proceed to the next stages of production.

Operational Nuances of the Vacuum Standing Box

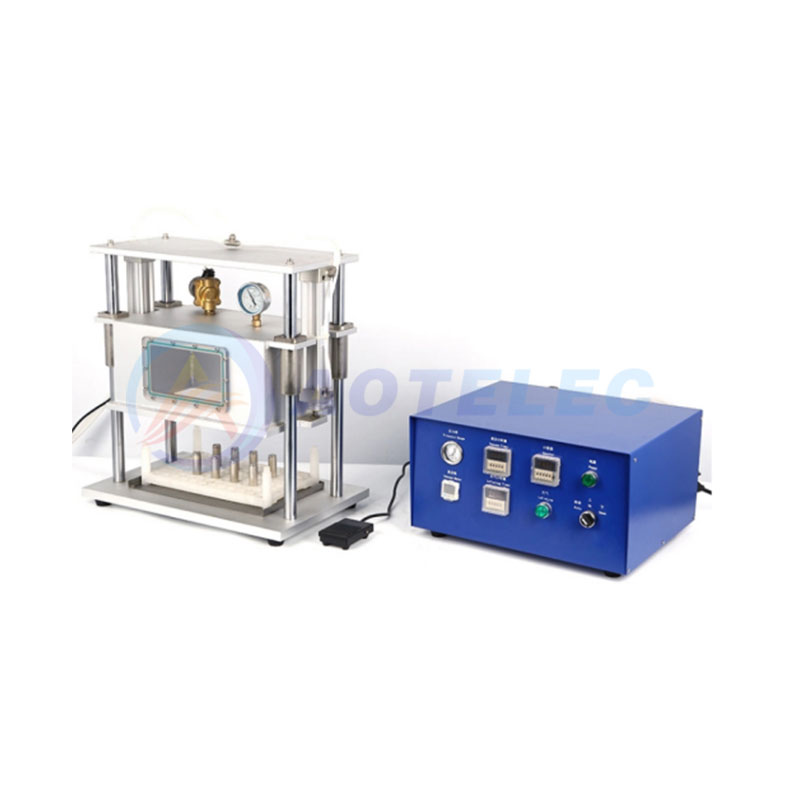

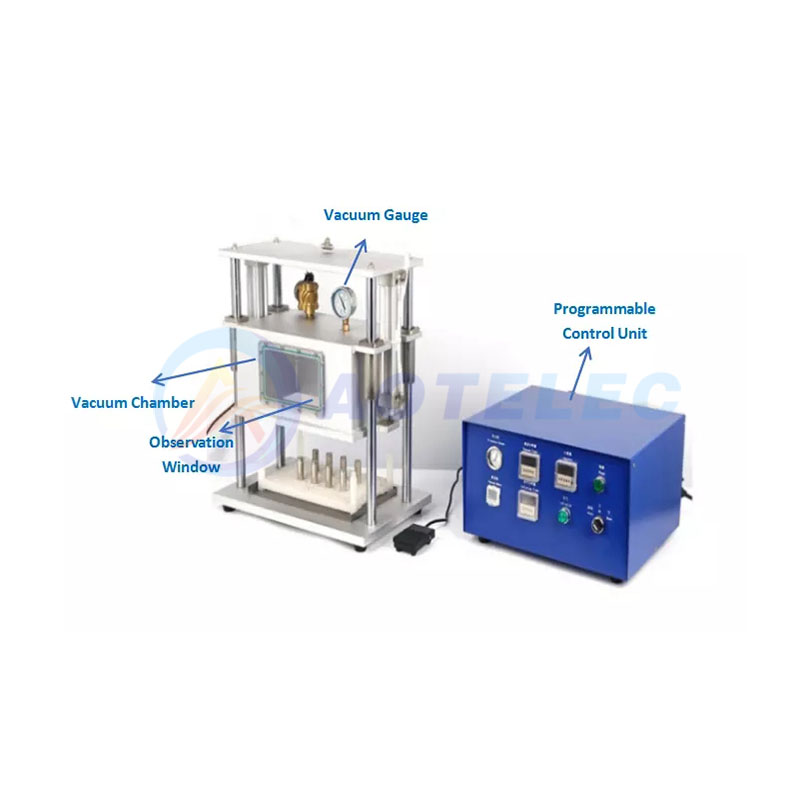

1. Design and Construction

Vacuum Standing Boxes are typically designed with the following features to optimize their function:

Sealed Environment: To maintain controlled conditions (temperature, humidity) and prevent contamination.

Adjustable Temperature Control: To accommodate different electrolyte formulations and battery designs.

Ventilation Systems: To manage any gaseous emissions from the electrolyte and ensure safe operation.

Pressure Regulation: To apply gentle, uniform pressure on the cells during soaking.

Accessibility: For easy loading and unloading of battery cells.

2. Material Selection

The materials used in the construction of Vacuum Standing Boxes must be compatible with the electrolyte and resistant to corrosion. Common materials include stainless steel, polypropylene, and other corrosion-resistant alloys and plastics.

3. Monitoring and Control Systems

Advanced Vacuum Standing Boxes often incorporate monitoring and control systems to continuously track conditions within the box and ensure they remain within specified parameters. These systems may include temperature sensors, humidity sensors, and pressure gauges, connected to a central control unit that can alert operators to any deviations.

Integration into the Manufacturing Line

The Vacuum Standing Box is an integral part of the pouch cell battery manufacturing line, typically located between the assembly and sealing stages. Automated systems can transfer cells from the assembly station to the Vacuum Standing Box and then to the sealing station once soaking is complete. This integration helps maintain a streamlined production process and minimize handling time.

Challenges and Innovations

Despite its critical role, the soaking process presents several challenges:

Process Time: Soaking can be time-consuming, impacting overall production throughput.

Consistency: Ensuring consistent soaking conditions across all cells can be difficult, particularly in large-scale production environments.

Material Compatibility: Finding materials that are compatible with the electrolyte and durable enough for repeated use can be challenging.

To address these challenges, manufacturers are continuously innovating:

Enhanced Diffusion Techniques: Using techniques such as vacuum impregnation or ultrasonic waves to accelerate electrolyte infiltration.

Advanced Materials: Developing new materials for Vacuum Standing Boxes that offer better corrosion resistance and durability.

Automated Monitoring and Control: Implementing more sophisticated monitoring and control systems to improve process consistency and reduce human error.

Conclusion

In conclusion, the Vacuum Standing Box plays a vital role in the manufacturing process of pouch cell lithium-ion batteries. By facilitating uniform electrolyte penetration and wetting of electrode materials, it enhances battery performance, improves safety, and helps maintain consistent production quality. Despite the challenges associated with the soaking process, continuous innovation in material science, process control, and automation is driving improvements in this critical step of battery manufacturing.

As the demand for pouch cell batteries continues to grow, particularly in the automotive, consumer electronics, and renewable energy sectors, the importance of the Vacuum Standing Box will only increase. Manufacturers must continue to invest in research and development to optimize the soaking process, ensuring that pouch cell batteries meet the rigorous performance, safety, and reliability standards required for widespread adoption.

In summary, the Vacuum Standing Box is not just a simple storage container; it is a critical component of the battery manufacturing process that significantly impacts the final product's quality and performance. By carefully controlling the soaking conditions and continuously innovating, manufacturers can improve the efficiency, reliability, and safety of pouch cell batteries, paving the way for broader adoption and integration into various applications.
