In the realm of battery manufacturing, the precision and quality of battery electrodes are paramount to ensuring the overall performance, safety, and reliability of the final product. Among the various technologies employed in electrode production, Roll-to-Roll (R2R) roll press machines stand out as a critical piece of equipment that significantly influences the physical and electrochemical properties of battery electrodes.

Overview of Battery Electrodes

Battery electrodes, also known as battery plates or terminals, are integral components of a battery system. They serve as the charge storage and current-carrying mediums within a battery cell. Typically, battery electrodes are made from metallic materials, which can be classified into anodes (positive electrodes) and cathodes (negative electrodes). Anodes, commonly constructed from metals such as copper, aluminum, or nickel, are responsible for outputting current during battery discharge. Conversely, cathodes, often composed of metals like lead, zinc, or other suitable materials, function as the current input during charging.

Importance of Roll-to-Roll Roll Press Machines

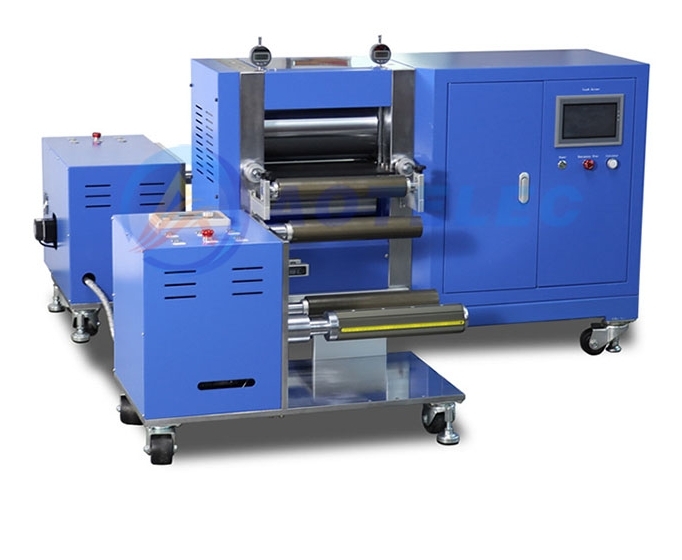

battery roll press machines are industrial-scale equipment designed to continuously process materials in a web-like format, where the material is fed through a set of rollers to achieve desired physical transformations. In the context of battery electrode production, R2R roll press machines play a pivotal role in shaping and compacting electrode materials to meet stringent performance criteria.

1. Precision Thickness Control

One of the most critical functions of R2R roll press machines is their ability to precisely control the thickness of battery electrodes. By adjusting the gap between the rolling cylinders (rollers), manufacturers can accurately compress the electrode material to the specified thickness. Uniform electrode thickness is essential for maintaining stable battery performance. It ensures consistent electrode spacing within the battery, preventing localized current density variations that could lead to overheating, shortened battery life, or even safety hazards.

Moreover, precise thickness control facilitates better control over the porosity and density of the electrode material, which directly impacts the battery's energy storage capacity and power output. By optimizing these parameters, battery manufacturers can enhance the electrochemical performance of their products, achieving higher energy densities and improved cycle life.

2. Surface Smoothness and Contact Performance

Another significant advantage of R2R roll press machines lies in their capacity to produce smooth and even electrode surfaces. Smooth surfaces enhance the contact between the electrode and the separator, reducing interface resistance and improving the battery's charge-discharge efficiency. This is particularly crucial in lithium-ion batteries, where the electrode-separator interface plays a vital role in ion transport and battery performance.

Smooth electrodes also facilitate easier handling and assembly during subsequent manufacturing steps, such as winding or stacking, ensuring the structural integrity of the battery pack. This attention to detail minimizes defects and enhances the reliability of the final product.

3. Enhanced Active Material Adhesion

During the rolling process, the pressure applied by the rollers helps to embed the active material more securely onto the current collector foil. This enhances the adhesion between the active material and the current collector, ensuring robust electrical contact and preventing material detachment during battery cycling. Active material detachment can lead to capacity fade and shortened battery life, so strong adhesion is essential for maintaining long-term performance.

The rolling action also compacts the active material, increasing its density and improving the electrical conductivity within the electrode. This compaction optimizes the utilization of the active material, enhancing the battery's energy density and power delivery capabilities.

Technical Aspects of R2R Roll Press Machines in Battery Production

1. Continuous Processing Capabilities

R2R roll press machines are designed for continuous processing, which allows for high throughput and cost-effective production. In a typical setup, coated electrode sheets are fed into the machine, passing through the gap between two counter-rotating rollers. The rollers apply a controlled amount of pressure to compact the coating material, achieving the desired thickness and density.

Continuous processing minimizes downtime and material waste, making it an ideal choice for large-scale battery manufacturing. It also allows for greater flexibility in adjusting process parameters, enabling manufacturers to optimize electrode properties for different battery applications.

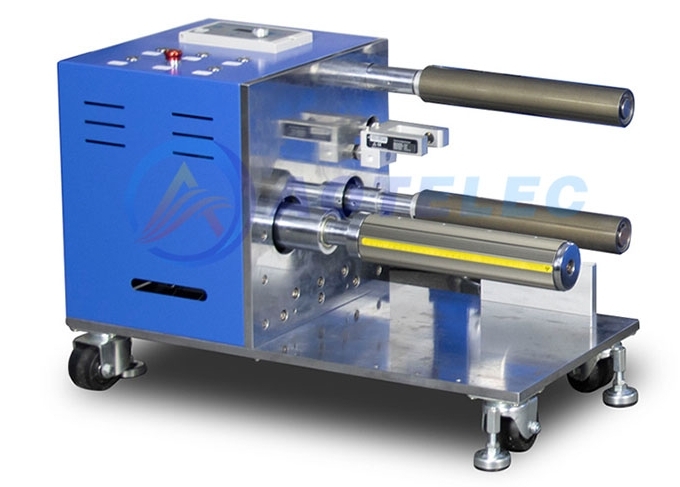

2. Material Handling and Feed Mechanisms

Efficient material handling and feed mechanisms are crucial for the smooth operation of R2R roll press machines. These mechanisms ensure that the electrode material is fed into the rollers at a consistent rate, maintaining tension and alignment throughout the process.

Advanced feed systems incorporate sensors and automated controls to monitor and adjust the feeding rate in real-time, compensating for variations in material thickness and tension. This ensures that the electrode material is uniformly compressed, achieving consistent quality across the entire production run.

3. Roller Design and Material Selection

The design and material composition of the rollers play a significant role in determining the quality of the electrode produced. Rollers are typically made from high-strength, wear-resistant materials such as steel or carbide-coated steel to withstand the high pressures and friction involved in the rolling process.

The roller surface can be textured or polished to achieve specific effects on the electrode material. For instance, textured rollers can help to distribute the active material more evenly across the current collector, while polished rollers produce smoother electrode surfaces.

4. Process Control and Monitoring

Advanced R2R roll press machines incorporate sophisticated process control and monitoring systems to ensure precision and consistency in electrode production. These systems typically include sensors for measuring roller gap, material thickness, and tension, as well as controls for adjusting the rolling pressure and speed.

Real-time monitoring and feedback mechanisms allow operators to quickly identify and correct any deviations from the desired process parameters, maintaining high product quality and process efficiency. Some machines also incorporate machine learning algorithms to optimize process settings based on historical data and current production conditions.

Impact on Battery Performance

The improvements in electrode quality achieved through R2R roll press machines have a profound impact on battery performance. By enhancing electrode thickness control, surface smoothness, and active material adhesion, these machines contribute to higher energy densities, improved cycle life, and better safety characteristics.

1. Higher Energy Densities

Optimized electrode thickness and density lead to higher energy densities, enabling batteries to store more energy per unit volume or weight. This is particularly important for applications where space and weight are constrained, such as electric vehicles and portable electronics.

2. Improved Cycle Life

Stronger adhesion between the active material and the current collector, combined with smoother electrode surfaces, reduces the risk of material detachment and internal shorts during battery cycling. This extends the battery's useful life, reducing the need for frequent replacements and lowering the overall cost of ownership.

3. Enhanced Safety

Uniform electrode thickness and density improve battery safety by reducing the likelihood of localized overheating and thermal runaway. This is particularly critical in high-energy-density batteries, where the potential for thermal hazards is increased.

Innovations in R2R Roll Press Technology

As battery technology continues to evolve, so too must the equipment used in their production. Recent innovations in R2R roll press technology are addressing the challenges associated with manufacturing advanced battery materials, such as silicon-based anodes and solid-state electrolytes.

1. Advanced Roller Materials and Coatings

New roller materials and coatings are being developed to better handle the high reactivity and fragility of advanced electrode materials. These innovations aim to reduce material degradation during rolling and improve the adhesion of active materials to the current collector.

2. Precision Temperature Control

Temperature control during the rolling process is crucial for maintaining material properties and achieving consistent results. Advanced R2R roll press machines now incorporate precision temperature control systems to monitor and regulate roller temperatures, ensuring optimal processing conditions.

3. In-line Quality Monitoring

In-line quality monitoring systems are being integrated into R2R roll press machines to provide real-time feedback on electrode quality. These systems use advanced imaging and sensing technologies to detect defects and variations in electrode thickness, surface roughness, and active material distribution.

4. Automation and Digitalization

The increasing adoption of automation and digitalization in battery manufacturing is driving innovations in R2R roll press technology. Automated systems for material handling, roller adjustment, and process control are becoming more sophisticated, enabling higher levels of precision and efficiency in electrode production.

Conclusion

Roll-to-Roll ( roll press machines are indispensable tools in the production of high-quality battery electrodes. Their ability to precisely control electrode thickness, enhance surface smoothness, and improve active material adhesion makes them critical to achieving optimal battery performance. As battery technology continues to advance, so too must the equipment used in their production. Innovations in R2R roll press technology are addressing the challenges associated with manufacturing advanced battery materials, ensuring that battery manufacturers can meet the growing demand for high-performance, reliable, and safe battery systems.

The future of battery manufacturing is bright, and R2R roll press machines will play a pivotal role in shaping its future. With continuous advancements in technology and process optimization, these machines will continue to drive improvements in battery performance, cost-effectiveness, and sustainability, paving the way for a new era of clean energy and mobility.
