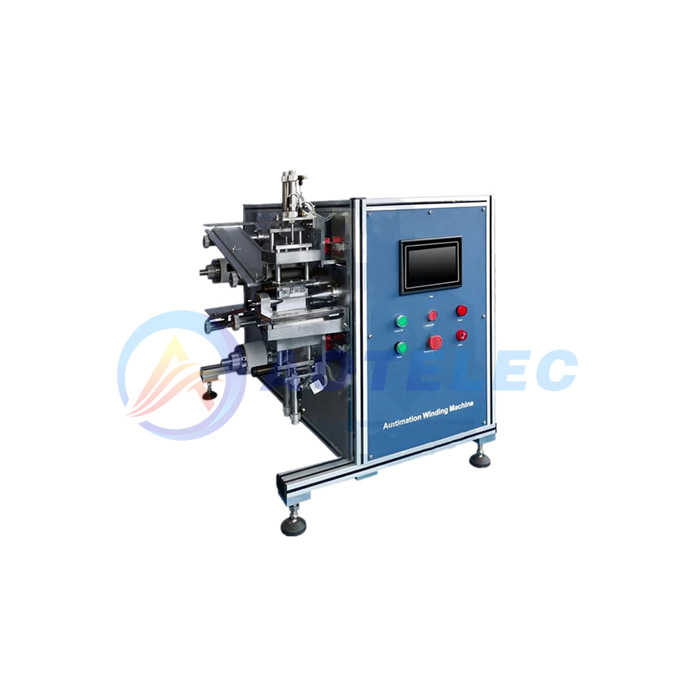

Cylinder battery winding machines are indispensable in the production of cylindrical lithium-ion batteries. These machines are designed to wind the positive and negative electrode sheets, separators, and electrolytes into a cylindrical electrode structure, which is a key component of battery cells.

Function of Cylinder Battery Winding Machines

Their primary function is to integrate positive and negative electrode materials, separators, and electrolytes into a cohesive cylindrical structure. This process involves precise control over various parameters such as tension, speed, width, and thickness to ensure the quality and performance of the battery cells.

Material Integration: The winding machine combines multiple materials into a single, cohesive unit. This integration is crucial for the battery's overall performance, as it affects factors like energy density, cycle life, and safety.

Efficiency Enhancement: By automating the winding process, these machines significantly increase production efficiency. They reduce manual labor and minimize errors, leading to higher output and lower costs.

Precision and Consistency: The precision of the winding process ensures that the battery cells have consistent dimensions and properties. This consistency is vital for the reliability and performance of the final battery product.

Adaptability: Cylinder battery winding machines can be adapted to produce different sizes and types of cylindrical batteries, making them versatile and flexible in a variety of manufacturing scenarios.

Operating Principle of Cylinder Battery Winding Machines

The operating principle of cylinder battery winding machines involves several key steps, including material cutting, arrangement, winding, and trimming. Each step is crucial for achieving the desired battery cell structure and quality.

Material Cutting:

Positive and Negative Electrode Sheets: These sheets are cut to the required length, width, and quantity.

Separators: Separators are also cut to match the dimensions of the electrode sheets.

Precision: The accuracy of the cutting process is crucial to ensure that all materials fit together perfectly during the winding process.

Material Arrangement:

After cutting, the materials are arranged on the winding machine's workbench according to the design requirements of the battery cell.

This involves layering the positive and negative electrode sheets with separators in between to prevent direct contact and short-circuiting.

The arrangement must be precise to ensure that the materials are aligned correctly during winding.

Winding Process:

The arranged materials are placed on the winding shaft of the machine.

The winding process is controlled by an automated system that regulates tension, width, thickness, and other parameters.

The machine winds the materials into a cylindrical shape by rotating the winding shaft and moving the materials along it.

Tension control is critical during this process to prevent stretching, deformation, or wrinkling of the materials.

Trimming:

After winding, the ends of the electrode sheets are trimmed to ensure that the length and width of the electrode stack meet the design requirements of the battery cell.

Trimming is usually done using precision cutting tools to maintain the accuracy and integrity of the electrode stack.

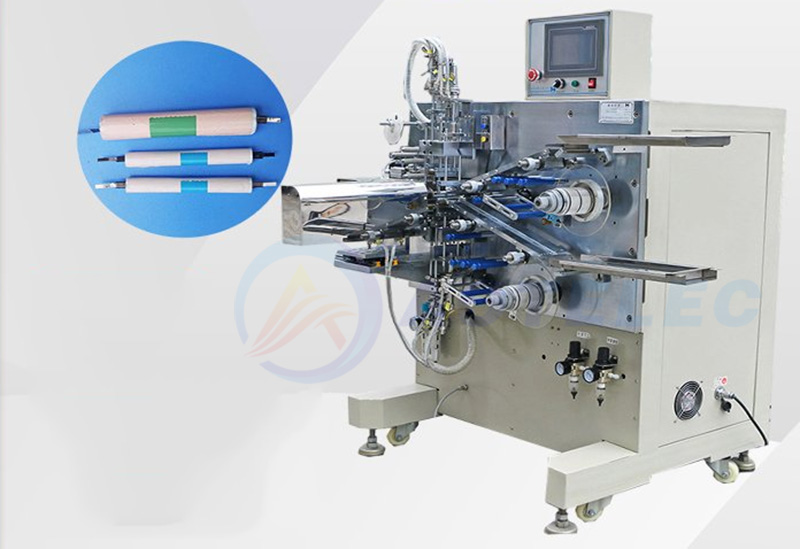

Detailed Mechanism and Components

Cylinder battery winding machines consist of several components and mechanisms that work together to achieve the winding process. These include:

Feed Roll Mechanism:

This component is responsible for smoothly unfolding the positive and negative electrode sheets and separators.

It ensures that the materials are fed into the winding process at a consistent speed and tension.

Tension Control System:

The tension control system maintains the appropriate tension on the materials during winding.

It uses sensors and actuators to adjust the tension in real-time, preventing stretching, deformation, or wrinkling.

Winding Mechanism:

The winding mechanism is the core of the machine, responsible for winding the materials into a cylindrical shape.

It uses precise rotation and movement to tightly wind the materials around the winding shaft.

The design of the winding mechanism can vary depending on the specific requirements of the battery cell being produced.

Cutting Mechanism:

After winding, the cutting mechanism separates the completed battery cell from the remaining materials.

It uses a precision cutting tool, such as a laser or mechanical cutter, to ensure a clean and accurate cut.

Advanced Features and Trends

As technology advances, cylinder battery winding machines are becoming increasingly sophisticated. Here are some advanced features and trends in this field:

Automation and Digitization:

Modern winding machines are highly automated, reducing the need for manual labor and minimizing errors.

They use computer control systems to monitor and adjust various parameters in real-time, ensuring high precision and consistency.

Digitization also allows for better traceability and quality control, as data on the winding process can be collected and analyzed.

High-Speed and High-Precision Winding:

Manufacturers are constantly striving to increase the speed and precision of winding machines.

Advances in motor technology, control algorithms, and material handling systems have made it possible to achieve higher winding speeds without compromising on quality.

Flexibility and Adaptability:

Winding machines are becoming more flexible and adaptable to produce different sizes and types of cylindrical batteries.

This versatility is achieved through modular design and programmable control systems that can be easily configured to meet changing production requirements.

Laser Cutting and Winding Integration:

Laser cutting technology is being integrated into winding machines to improve cutting accuracy and efficiency.

This integration allows for precision cutting of materials during the winding process, reducing waste and improving overall productivity.

Continuous Improvement and Innovation:

Manufacturers are continuously improving and innovating winding machines to meet the evolving needs of the battery industry.

This includes developing new materials, improving process control, and incorporating advanced sensors and analytics to optimize production processes.

Conclusion

Cylinder battery winding machines are essential for the production of cylindrical lithium-ion batteries. They integrate multiple materials into a cohesive cylindrical structure, ensuring the quality and performance of the final battery product. By automating the winding process, these machines increase production efficiency, reduce costs, and minimize errors. As technology advances, winding machines are becoming increasingly sophisticated, incorporating features such as automation, digitization, high-speed and high-precision winding, flexibility and adaptability, and laser cutting and winding integration. These advancements are driving the development of more efficient, reliable, and cost-effective battery manufacturing processes.

In summary, cylinder battery winding machines play a critical role in the battery manufacturing industry. Their operating principle involves precise control over various parameters during the winding process, ensuring the quality and performance of the final battery cells. With continuous improvements and innovations, these machines are poised to play an even more significant role in the future of battery technology.
