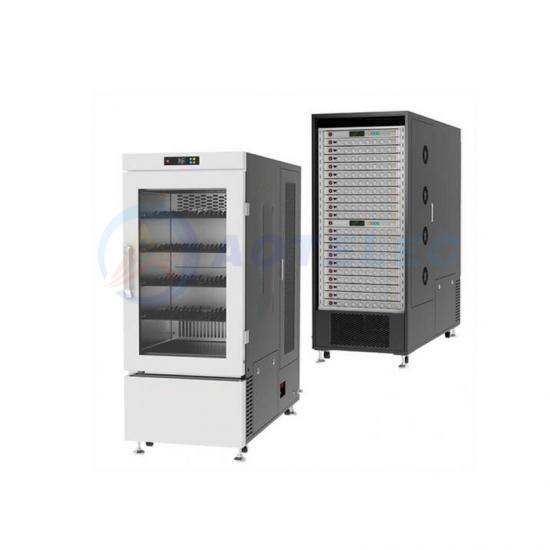

Constant Temperature Test Chamber For Lithium Battery

AOTHW-200-160CH mainly used for coin cell battery, pouch cell battery, polymer battery temperature performance test.
  • Item NO.:

    AOTHW-200-160CH
  • Lead Time:

    20-30days
  • Product Orgin:

    China
  • Brand:

    AOTELEC
  • Shipping Port:

    Xiamen, China
  • Payment:

    T/T, WesternUnion, MoneyGram, Paypal, Visa
  • Product Detail

Constant Temperature Test Chamber For Lithium Battery



AOTHW-200-160CH mainly used for coin cell battery, pouch cell battery, polymer battery temperature performance test.


Product Specifications:

 Product application

1.Constant temperature test of polymer battery and button battery.

2.Manufacturers of electronics, electrical engineering, instrumentation, materials, semiconductors, etc. conduct constant temperature tests on non-flammable and non-explosive items.

3.Environmental protection, agricultural and livestock, aquatic scientific research institutions and production companies, etc., conduct constant temperature tests on water analysis, bacteria, mold, microbial cultivation, preservation, plant cultivation, and breeding experiments.

 Sample limit

This test equipment prohibits:

Test or storage of flammable, explosive and volatile substances

Test or storage of corrosive material samples

Test or storage of strong electromagnetic emission source samples

Testing and storage of radioactive material samples

Test and storage of highly toxic substances

Test or storage of samples that may produce the above-mentioned substances or objects during testing or storage

 Capacity, Dimensions, Weight

Inner capacity

200L

Inner dimensions

W500*D500*H800 mm

 Overall dimensions

W700*D1200*H1500 mm

 Net weight

About 220kg

Performance

Testing environment

The ambient temperature is + 25℃, the relative humidity is ≤ 85%, and there is no sample in the test chamber (no load)

 Temperature range

0~60℃

Temperature fluctuation

≤1℃ (no load and stable temperature)

Temperature deviation

±2.0℃ (no load and stable temperature)

Heating time

25℃→60℃ ≤30 min

Cooling time

25℃→0℃ ≤50 min

Structure

 Insulation structure

Outer wall material: high-quality cold rolled steel plate, surface spray and paint treatment

Inner wall material: stainless steel plate SUS304

Box insulation material:

polyurethane foam (insulation thickness 50mm)

 Airconditioning channel

Axial fan, heater, evaporator

 Standard configuration

Door: Hollow anti-fog tempered glass + stainless steel frame

Lead hole (with soft rubber plug): φ50mm, 4pcs (located on the back side of the box)

Casters: 4 (with brake)

Sample rack: 4 layers of electrical insulation sample rack, load bearing (uniform distribution): 10kg/layer

Lighting: LED lighting

Control panel

Touch control buttons

Heater

Heater control mode: contactless, equal period pulse-width modulation, SSR (solid state relay)

Refrigeration system

Refrigeration compressor

Fully enclosed piston compressor

 Cooling method

Air-cooled

Throttle device

Capillary tube

Refrigerant

R134a

Welding process

Nitrogen-filled protective welding

 Electrical control system

Controller

LED digital display + touch key controller

Setting mode

Touch key

Control mode

Forced circulation ventilation. According to the set temperature value, the control system controls the output of the heater through PID automatic calculation, so as to achieve dynamic balance.

Communication mode

Ethernet standard interface

Temperature control module

Independent research and development (after high and low temperature impact, vibration and EMC and other related tests)

Safety protection

Test chamber

Leakage protection, short circuit protection and abnormal operation of circulating fan, etc.

Other configuration

Power cable

(single phase + protective earth wire) 1 cable

Main power leakage circuit breaker

Single phase + protective earth wire

Transport(the test chamber is integral, transported as a whole)

Dimentions

Maximum size (without packaging): W700 mm×D1200 mm×H1500 mm

Conditions of use

Installation site

The ground is flat, with flatness ≤ 5mm / 2m

Good ventilation

There is no strong vibration around the equipment

There is no strong electromagnetic field around the equipment

There are no flammable, explosive, corrosive substances and dust around the equipment

Proper space for use and maintenance shall be reserved around the equipment, and the opening and closing space of the box door shall be reserved at the opening door of the equipment, and there shall be no other objects in front of the box door of the equipment.

Environment condition

Temperature: 5℃~ 35℃, Relative humidity: ≤85%, Air pressure: 86kpa ~ 106kpa

Power supply

AC(220±22)V, (50±0.5)Hz, single phase + protective earth wire

The grounding resistance of the earth wire is less than 4Ω

The user is required to configure the corresponding air or power switch for the equipment at the installation site, and the switch must be used independently for the equipment.

Power: 6kW

Max current: 30A

Others

Opening the door during the test will cause the temperature fluctuation in the chamber.

Battery specifications and placement

Battery specifications

Button battery or polymer battery(coin cell battery or pouch cell battery)

Battery placement

Four layers (up to 40 button batteries can be placed on each layer)
